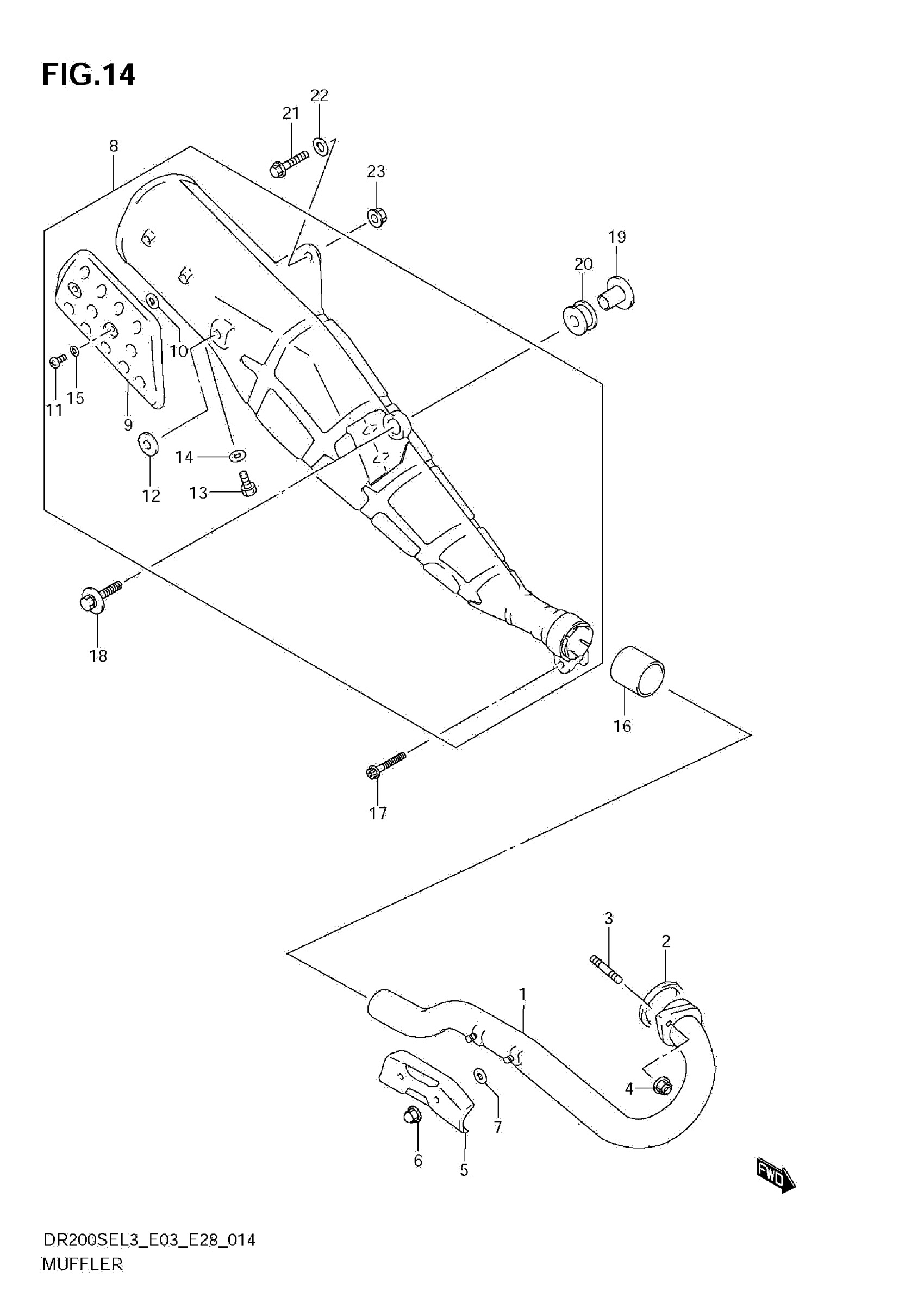

Suzuki DR200SE (2013) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-42A22

$331.25

2

GASKET, EXHAUST PIPE

14181-42A00

$10.93

3

BOLT,STUD

01421-0825A

$2.03

4

NUT

09159-08067

$5.57

5

COVER, EXHAUST PIPE

14186-42A20

Unavailable

6

NUT

09145-06005

$4.25

7

GASKET (6X16X1.4)

09168-06122

$2.73

8

MUFFLER ASSY

14301-42A61-H01

$491.85

9

COVER, MUFFLER

14781-42A20

$28.18

10

GASKET (5.8X13X1.4)

09168-06120

$2.92

11

SCREW (6X10)

09139-06076

$2.42

12

CUSHION

09321-10007

$2.71

13

PLUG (12X9)

09247-12103

$2.84

14

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

15

WASHER

08322-0106A

$1.84

16

GASKET, 2ND MUFFLER

14773-14202

$23.17

17

BOLT

07120-0835B

$4.58

18

BOLT (8X35)

09118-08080

$3.03

19

SPACER (8.6X12X17.5)

09180-08151

$5.18

20

CUSHION

09320-12043

$7.98

21

BOLT (8X35)

09103-08357

$4.17

22

WASHER

08322-0108B

$2.34

23

NUT

08361-2508B

$2.47
