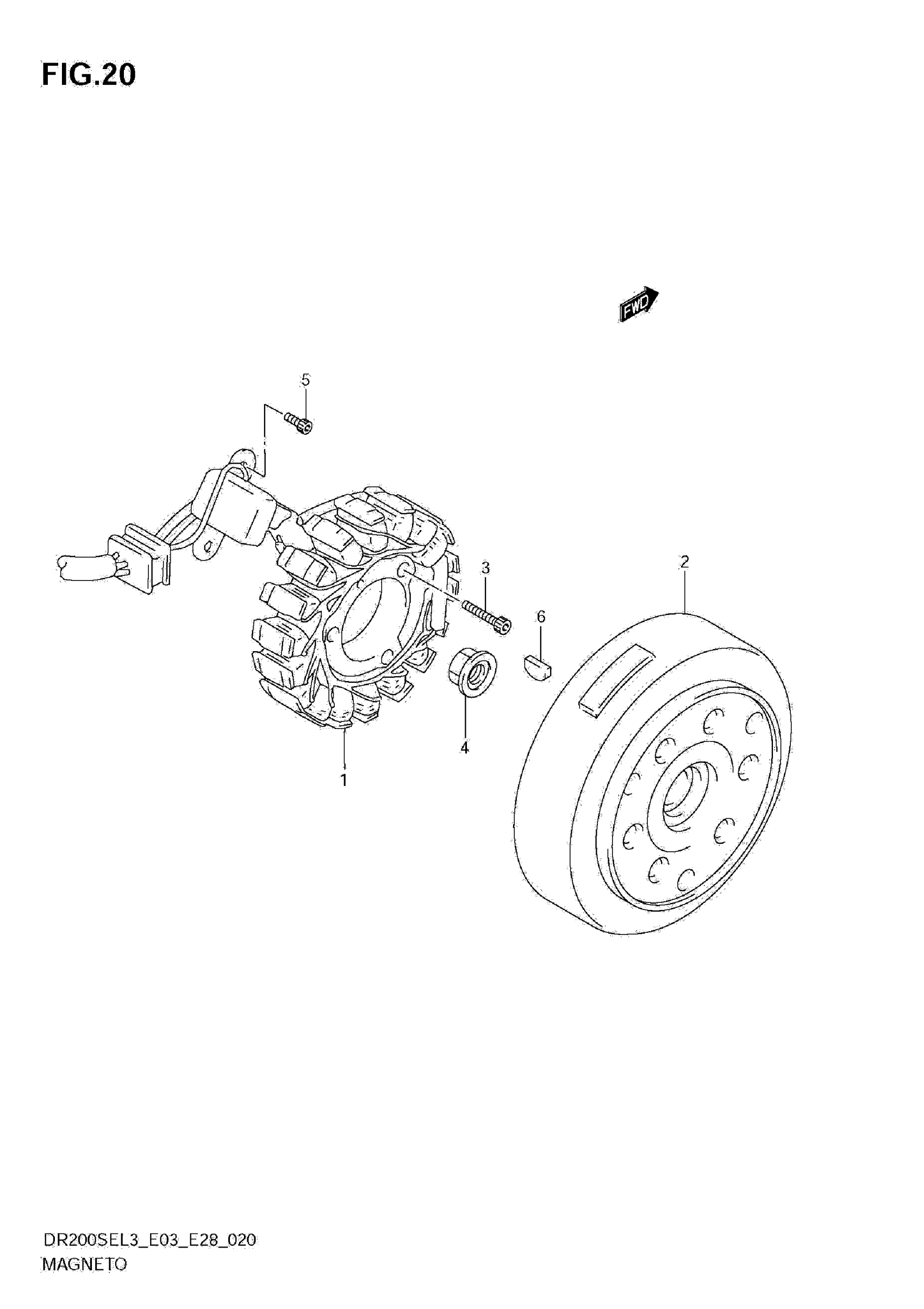

Suzuki DR200SE (2013) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-42A40

$590.90

2

ROTOR ASSY

32102-42A40

Unavailable

3

BOLT

07130-0525A

$2.28

4

NUT, MAGNETO ROTOR

31792-26F10

$3.78

5

BOLT

07130-0512A

$2.19

6

KEY

09420-03008

$3.16
