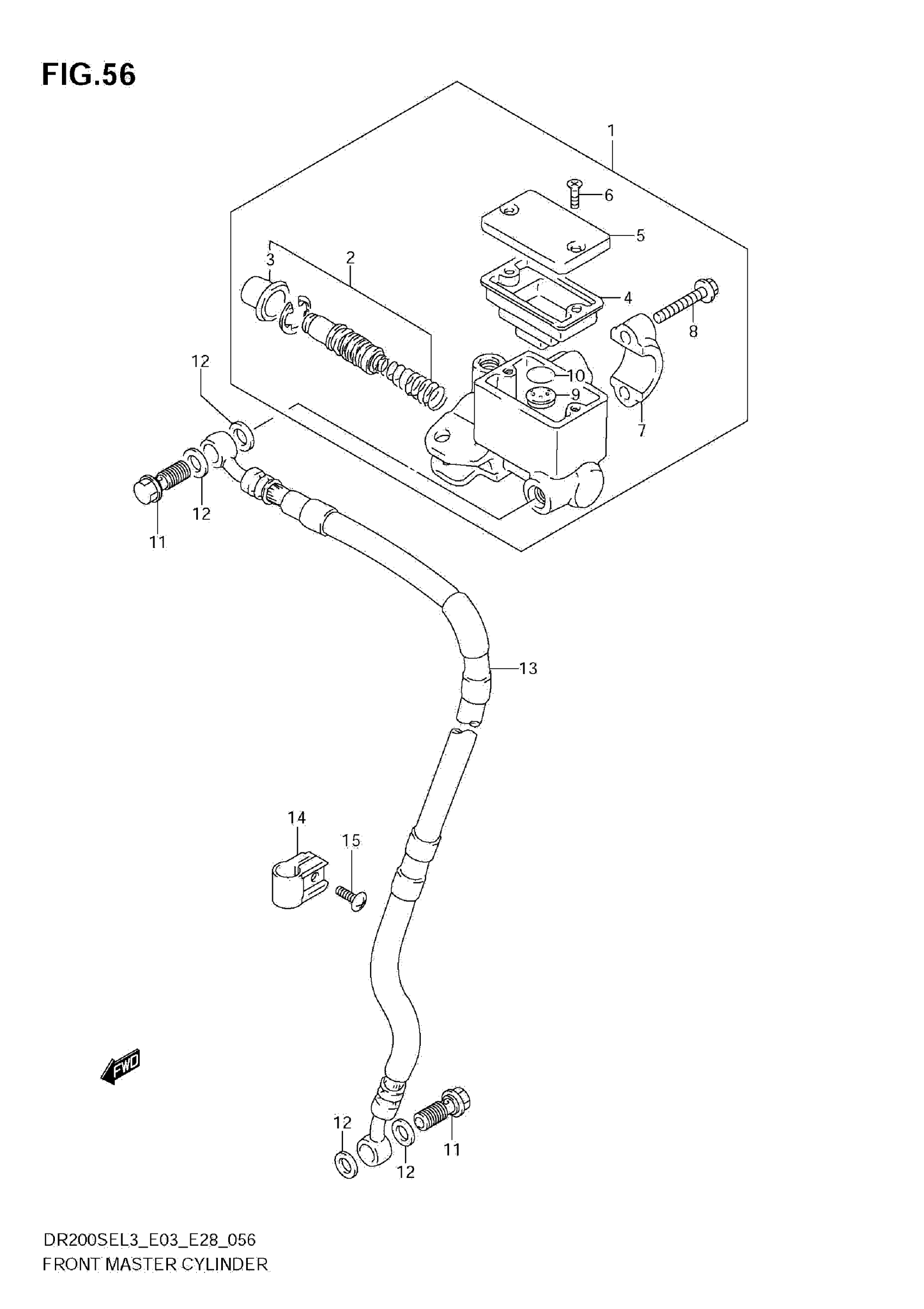

Suzuki DR200SE (2013) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-03D01

$295.20

2

PISTON/CUP SET

69600-38810

$51.24

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-44B00

$9.78

5

CAP

59669-03D00

$32.30

6

SCREW

02122-0412B

Unavailable

7

HOLDER

59671-03D00

$26.23

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-36E00

$9.37

10

RING

69744-36E00

$4.02

11

UNION

09360-10061

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE, FRONT BRAKE

59480-44AA1

$121.68

14

CLAMP BRAKE HOSE

58621-07A20

$4.07

15

SCREW

02142-0616B

$1.78
