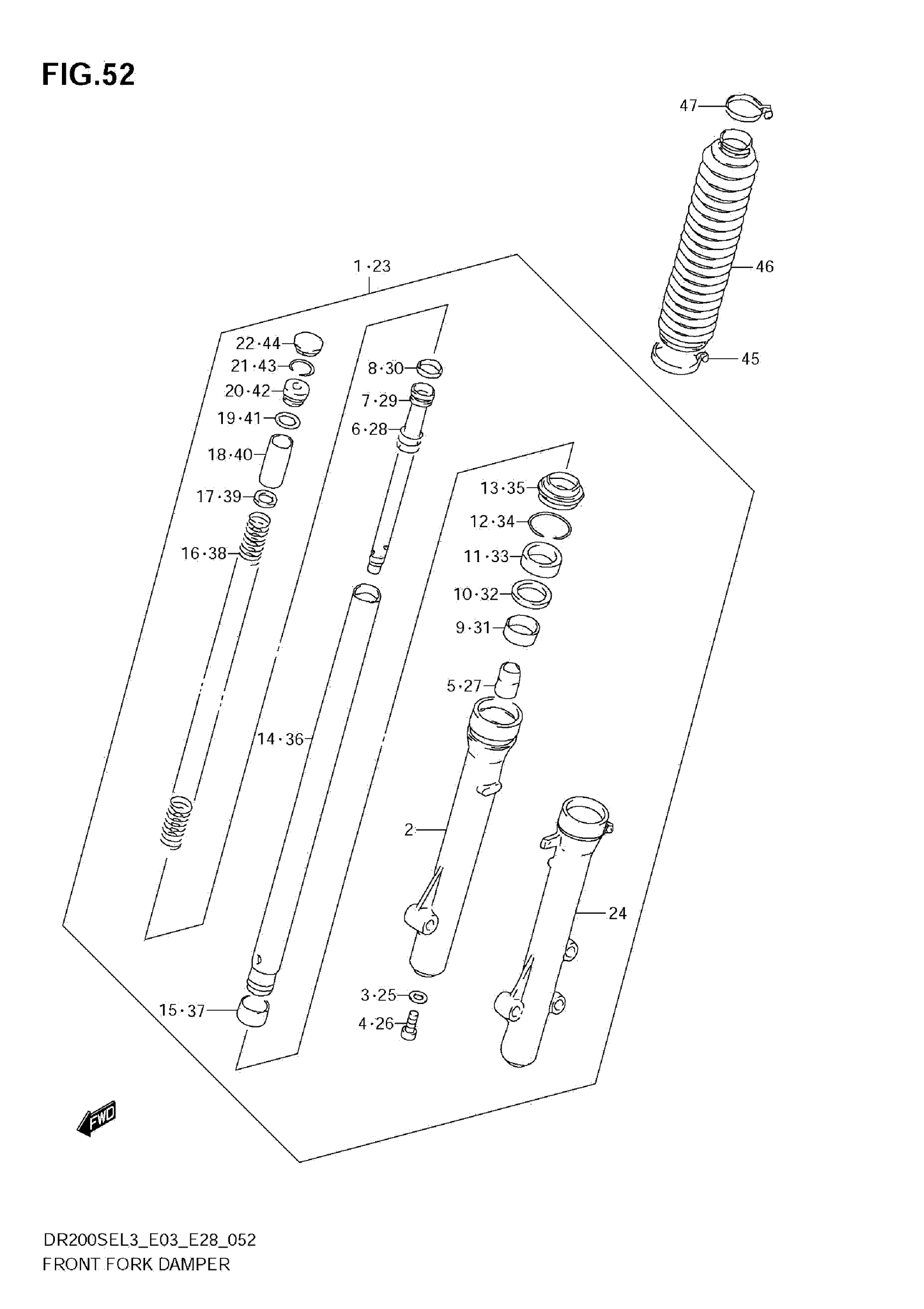

Suzuki DR200SE (2013) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-42AA0

Unavailable

2

TUBE, OUTER RH

51131-01A01

Unavailable

3

GASKET

51148-36011

$3.56

4

BOLT, CENTER

51147-06F10

$5.98

5

PIECE, OIL LOCK

51195-43530

$20.32

6

SPRING, REBOUND

51177-01A00

Unavailable

7

CYLINDER

51146-42AA0

Unavailable

8

RING, PISTON

51196-45200

$8.42

9

BUSH, GUIDE

51152-33300

$15.04

10

SPACER, SEAL

51168-30B00

$6.31

11

SEAL, OIL

51153-19D10

$22.96

12

RING, OIL SEAL STOPPER

51156-01A00

$4.34

13

DUST SEAL

51173-01A00

$17.68

14

TUBE, INNER

51110-01A30

Unavailable

15

PISTON

51121-33300

$25.33

16

SPRING, MAIN

51171-42AA0

Unavailable

17

SEAT, SPRING

51192-20510

Unavailable

18

SPACER, SPRING

51176-42AA0

Unavailable

19

O RING

51181-31030

$4.37

20

BOLT, SPRING

51175-47400

Unavailable

21

RING, STOPPER

51169-47400

$2.90

22

CAP

51189-31230

$9.37

23

DAMPER ASSY, FRONT FORK LH

51104-42AA0

Unavailable

24

TUBE, OUTER LH

51141-01A01

Unavailable

25

GASKET

51148-36011

$3.56

26

BOLT, CENTER

51147-06F10

$5.98

27

PIECE, OIL LOCK

51195-43530

$20.32

28

SPRING, REBOUND

51177-01A00

Unavailable

29

CYLINDER

51146-42AA0

Unavailable

30

RING, PISTON

51196-45200

$8.42

31

BUSH, GUIDE

51152-33300

$15.04

32

SPACER, SEAL

51168-30B00

$6.31

33

SEAL, OIL

51153-19D10

$22.96

34

RING, OIL SEAL STOPPER

51156-01A00

$4.34

35

DUST SEAL

51173-01A00

$17.68

36

TUBE, INNER

51110-01A30

Unavailable

37

PISTON

51121-33300

$25.33

38

SPRING, MAIN

51171-42AA0

Unavailable

39

SEAT, SPRING

51192-20510

Unavailable

40

SPACER, SPRING

51176-42AA0

Unavailable

41

O RING

51181-31030

$4.37

42

BOLT, SPRING

51175-47400

Unavailable

43

RING, STOPPER

51169-47400

$2.90

44

CAP

51189-31230

$9.37

45

BAND, BOOT LOWER

51576-42AA0

$13.28

46

BOOT This part replaces 51571-01A00-019.

51571-01A01-019

$45.43

47

BAND, BOOT UPPER

51575-01A00

$11.07
