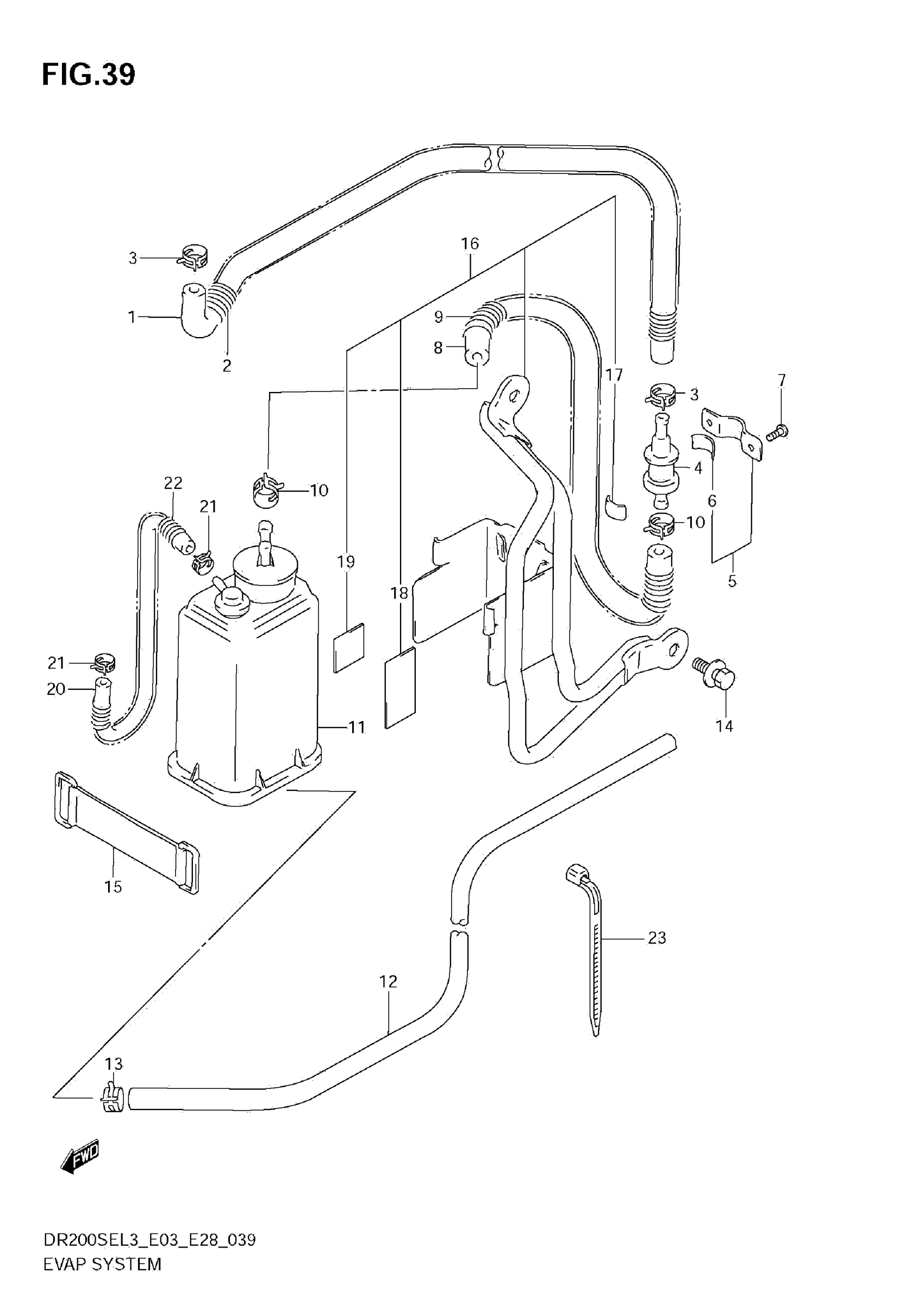

Suzuki DR200SE (2013) EVAP SYSTEM (DR200SEL3 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-42A00

Unavailable

2

SPRING

09440-13053

Unavailable

3

CLIP

09401-11413

$2.26

4

VALVE, ROLL OVER

44240-38A00

$61.15

5

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW

02112-0408B

$1.83

8

HOSE, VALVE & CANISTER

44435-42A00

Unavailable

9

SPRING

09440-13043

$6.04

10

CLIP

09401-11413

$2.26

11

CANISTER ASSY, CHARCOAL

17210-44A00

Unavailable

12

HOSE(7X11X2000) | L:2000->650 This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

13

CLIP (ID:10.5,H:8)

09401-10409

$2.26

14

BOLT (6X16)

09116-06130

$2.28

15

BAND

09462-00034

$4.24

16

PLATE, CANISTER

44880-44AB0

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

CUSHION

44885-38A00

$4.58

19

CUSHION

44885-44AA0

$3.18

20

HOSE, CANISTER PURGE

44436-42A00

Unavailable

21

CLIP

09401-06405

$2.45

22

SPRING

09440-10031

Unavailable

23

CLAMP (L:125)

09407-14403

$2.26
