2013 Suzuki DR200SE Carburetor Diagram

← All diagrams

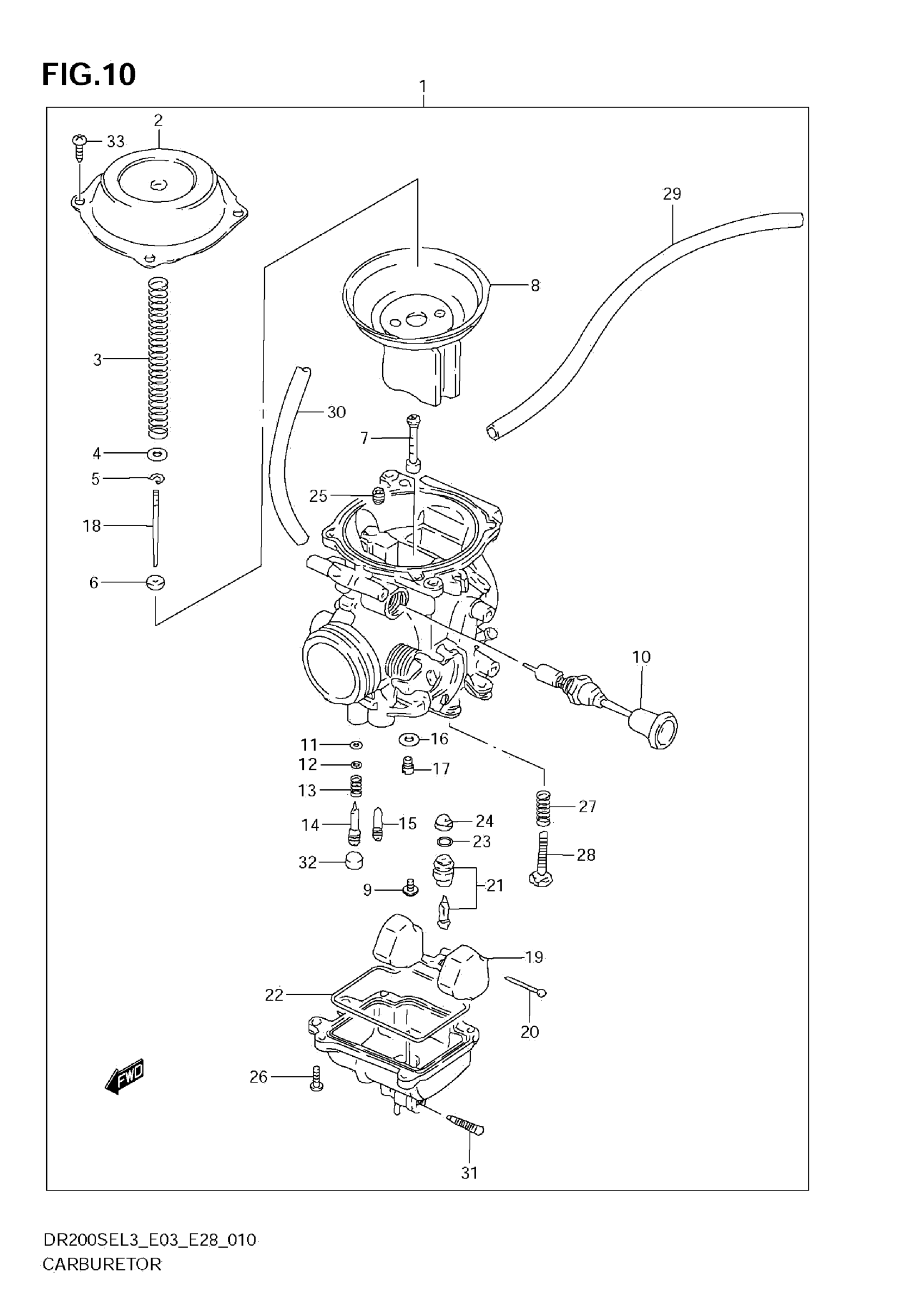

Find the part on the Carburetor diagram for your 2013 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki DR200SE Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$595.13

In stock

2

COVER

13502-42A00

1

$43.42

In stock

3

SPRING

13417-42A00

1

$6.97

In stock

4

RING

13382-42A00

1

$4.46

In stock

5

CLIP, NEEDLE

13394-10010

1

$4.76

In stock

6

RING

13387-47010

1

$7.41

In stock

7

JET, NEEDLE (P-5M)

09494-00881

1

$58.58

In stock

8

1

$190.10

In stock

9

SCREW

13602-43410

1

$3.67

In stock

10

PLUNGER ASSY

13411-42A20

1

$43.78

In stock

11

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

12

WASHER

13291-29900

1
Out of stock

13

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

14

SCREW, PILOT

13279-47070

1

$13.33

In stock

15

JET, PILOT (35)

09492-35008

1

$9.21

In stock

16

WASHER

13382-03110

1

$2.92

In stock

17

JET, MAIN (125)

09491-25010

1

$11.98

In stock

18

NEEDLE, JET (5D77-1)

13383-42AC0

1

$21.00

In stock

19

FLOAT

13250-42A00

1

$33.99

In stock

20

PIN, FLOAT

13254-92311

1

$2.41

In stock

21

VALVE ASSY, NEEDLE

13370-44500

1

$50.83

In stock

22

O RING, FLOAT CHAMBER

13251-42A00

1

$9.00

In stock

23

1

$5.97

In stock

24

FILTER

13376-19F00

1

$10.26

In stock

25

JET, AIR (135)

09493-27001

1

$18.33

In stock

26

SCREW

02112-0412A

4

$1.33

In stock

27

1

$6.00

In stock

28

ADJUSTER

13267-25D00

1

$16.03

In stock

31

1

$4.97

In stock

32

PLUG

13281-05A00

1

$4.58

In stock

33

SCREW

02112-0408A

4

$1.15

In stock
