Description

Price

1

CAM SHAFT This part replaces 12711-42A10.

12711-42A11

$166.32

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN (5X8)

09261-05005

$1.49

4

WASHER, SPROCKET

12747-05202

$2.51

5

BOLT (6X10.5)

09100-06166

$3.03

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER

12840-25C10

$54.75

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

12

WASHER (37.3X52X1)

09164-12021

$2.03

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

SCREW

02162-0625A

$1.78

15

VALVE, INTAKE

12911-42A00

$43.68

16

VALVE, EXHAUST

12912-42A00

$63.46

17

SPRING SET, VALVE

12920-05210

$13.75

18

RETAINER, VALVE SPRING

12931-49201

$6.91

19

COTTER, VALVE

12932-24400

$1.94

20

SEAT, VALVE SPRING

12933-49201

$5.84

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

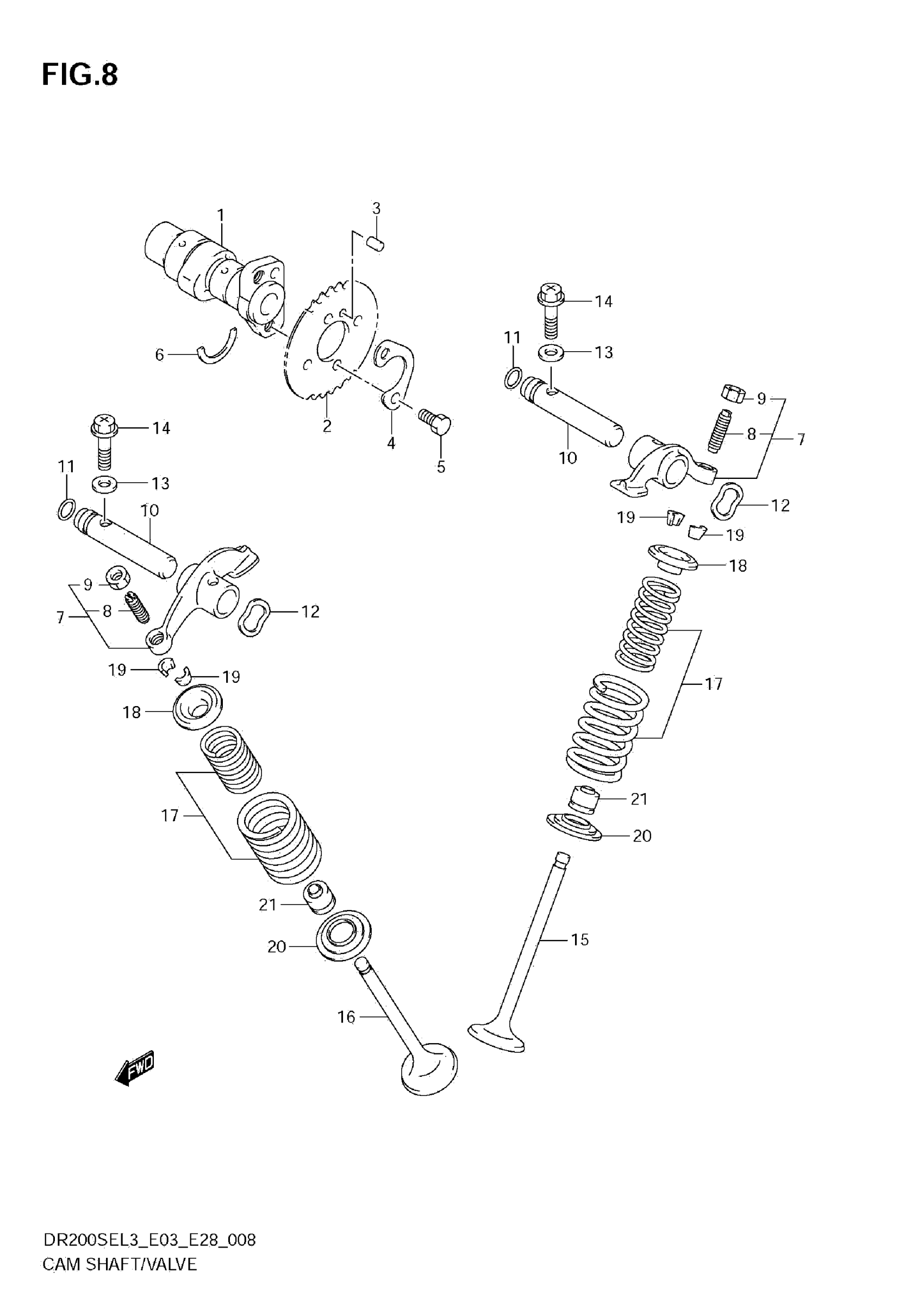

Suzuki DR200SE (2013) CAM SHAFT/VALVE Diagram
