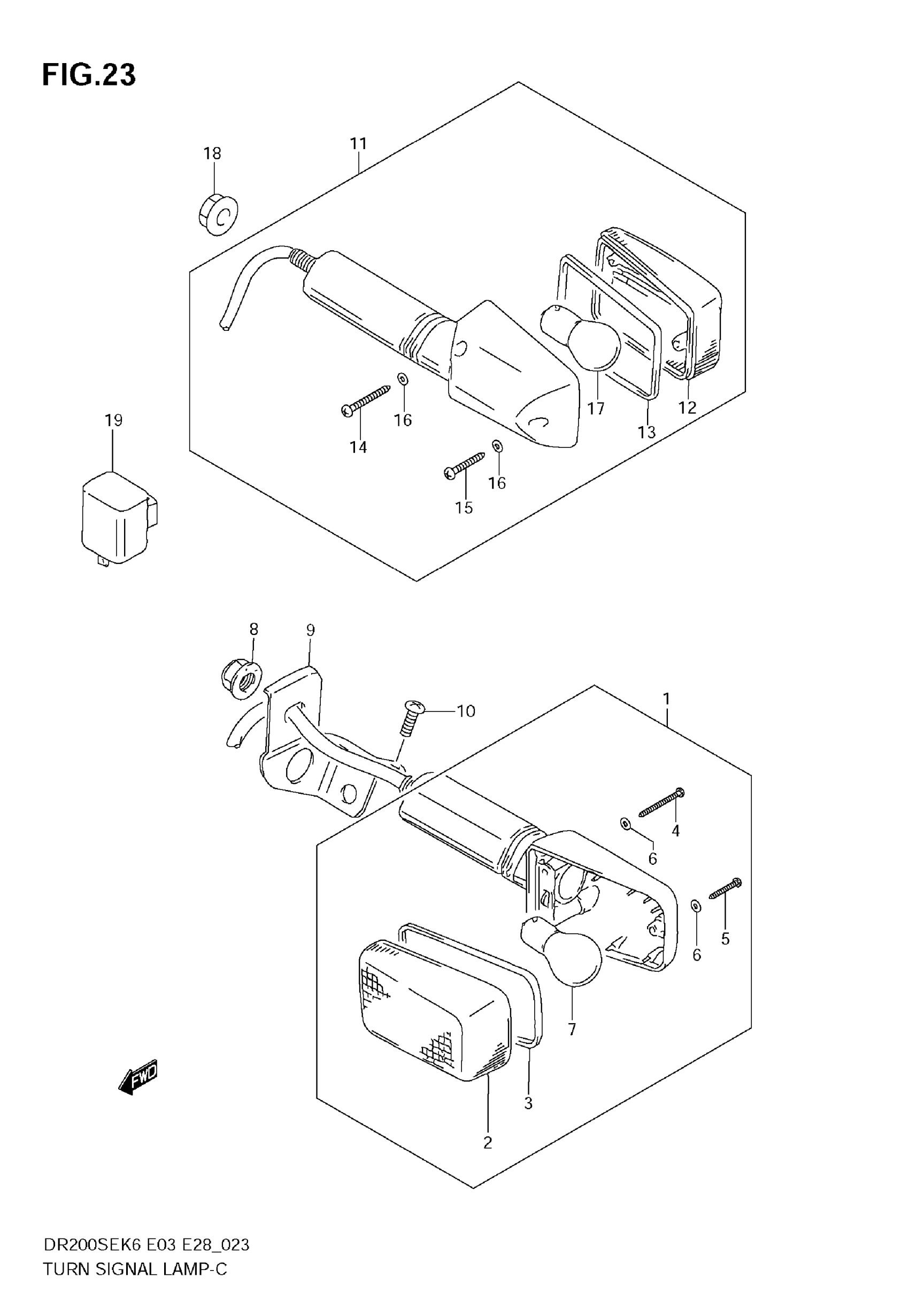

Suzuki DR200SE (2009) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 7

35601-29EC0

$110.10

2

LENS, FRONT TURN SIGNAL

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

SCREW

35623-27A00

$1.65

5

SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V,21W)

09471-12045

$3.27

8

NUT

08316-1010B

$2.66

9

BRACKET, FRONT TURN RH

35670-44A01

$11.30

9

BRACKET, FRONT TURN LH

35680-44A01

$11.30

10

SCREW

02142-0508B

$2.23

11

LAMP ASSY, REAR TURNSIGNAL | Includes Item(s) 12 - 17

35603-29EK0

$108.22

12

LENS, REAR TURN SIGNAL

35652-17C20

$10.28

13

GASKET

35613-27A00

$4.52

14

SCREW

35623-27A00

$1.65

15

SCREW

35725-40511

$1.91

16

GASKET

35627-27A02

$1.58

17

BULB (12V,21W)

09471-12045

$3.27

18

NUT

08316-1010B

$2.66

19

RELAY, TURN SIGNAL

38610-31X50

$80.15
