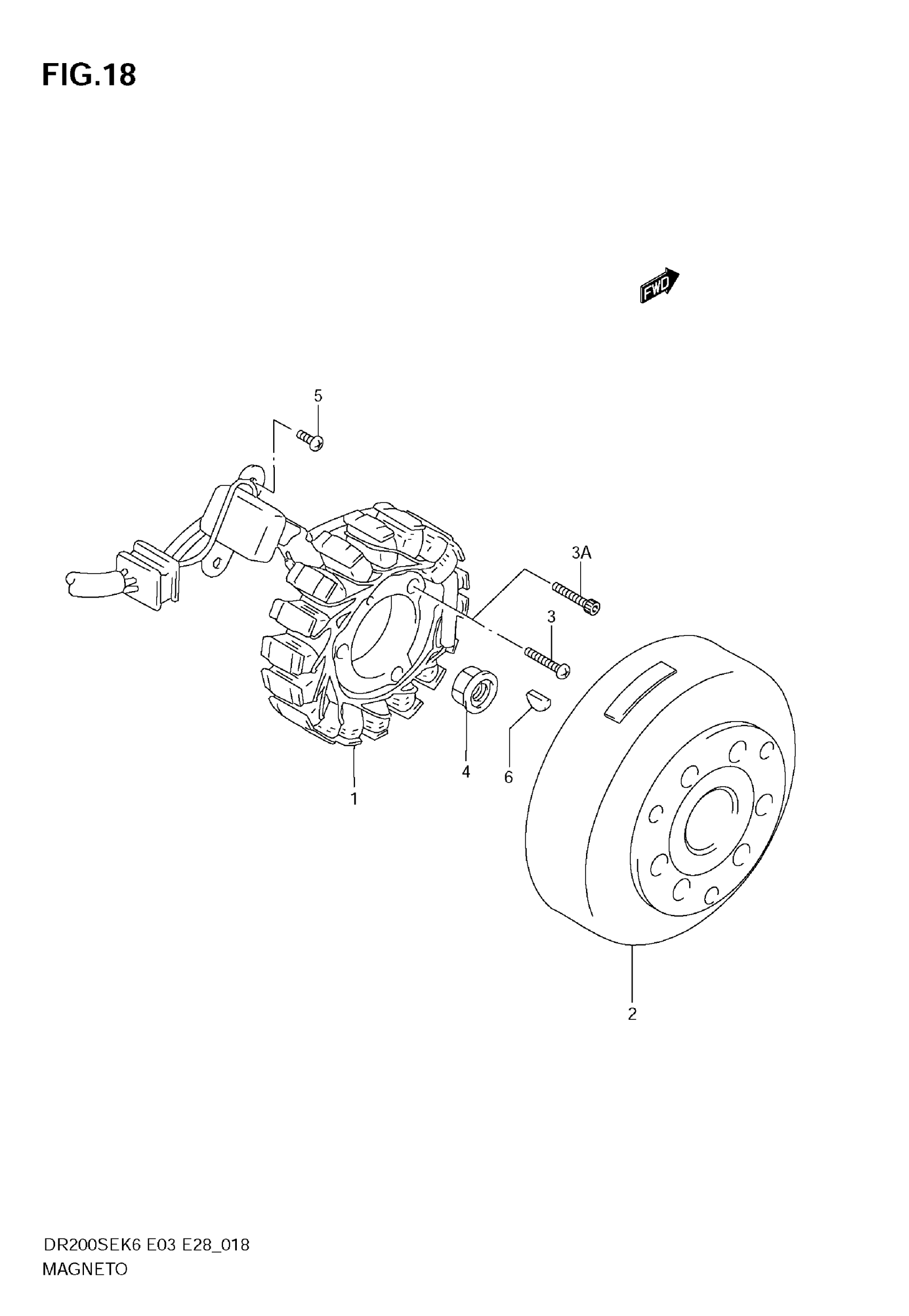

Suzuki DR200SE (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY | MODEL K6 This part replaces 32101-42A30.

32101-42A40

$590.90

1

STATOR ASSY | MODEL K7/K8/K9

32101-42A40

$590.90

2

ROTOR ASSY

32102-42A30

Unavailable

3

SCREW | MODEL K6/K7/K8

02112-0525B

$1.84

3A

BOLT | MODEL K9

07130-0525B

$2.52

4

NUT (M12X1.25)

31792-26F10

$3.78

5

SCREW

02112-0512B

$2.72

6

KEY

09420-03008

$3.16
