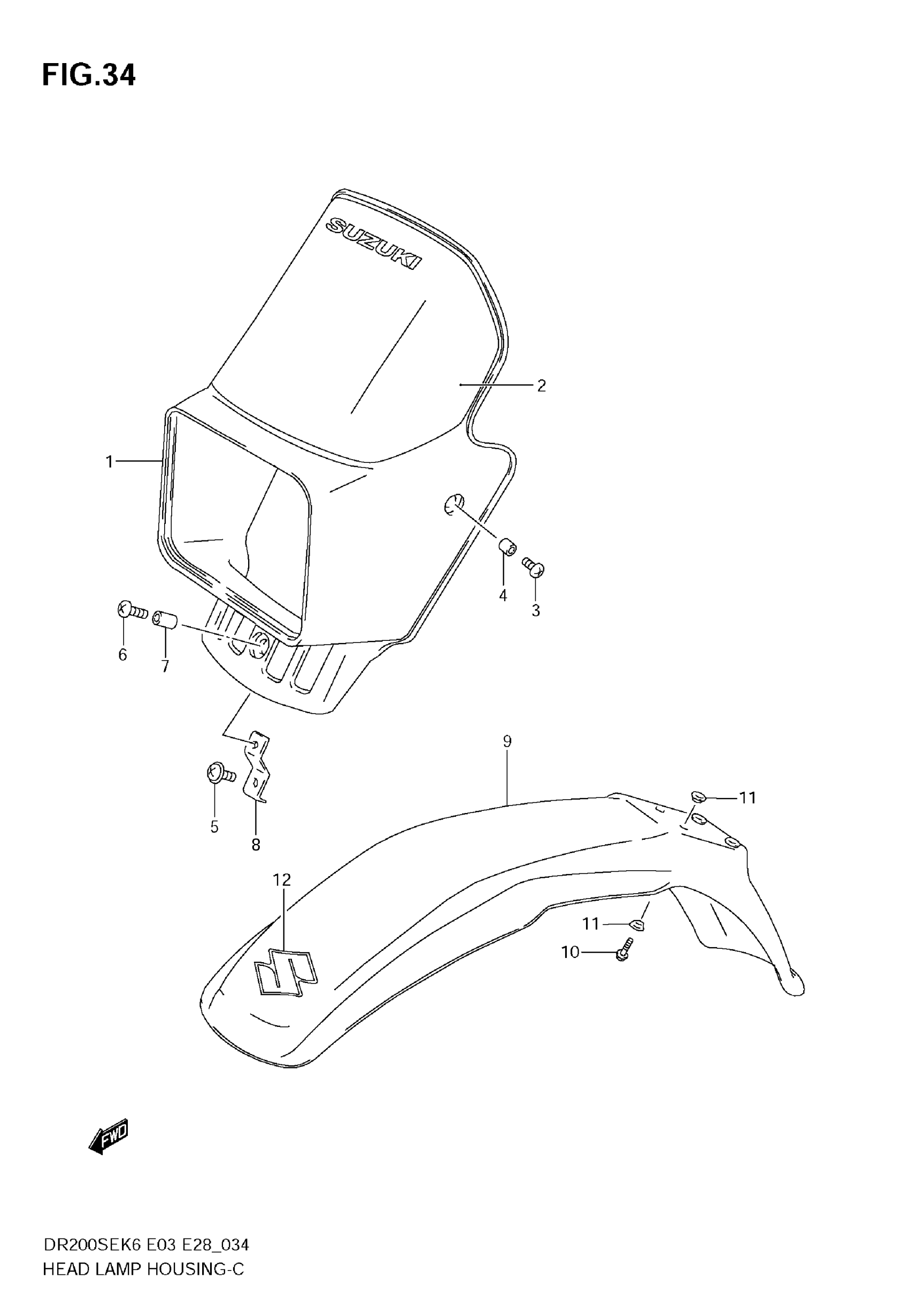

Suzuki DR200SE (2009) HEADLAMP COVER (MODEL K6/K7) Diagram

#

Description
Price

1

COVER, HEADLAMP (YELLOW) | MODEL K6 FOR YU1 This part replaces 51811-14A20-YU1.

51811-14A30-YU1

Unavailable

1

COVER, HEADLAMP (BLUE) | MODEL K6 FOR N9J

51811-14A20-YJ4

Unavailable

1

COVER, HEADLAMP (YELLOW) | MODEL K7 FOR YU1

51811-14A30-YU1

Unavailable

1

COVER, HEADLAMP (BLUE) | MODEL K7 FOR N9J

51811-14A30-YLW

Unavailable

2

EMBLEM, SUZUKI | MODEL K6 FOR YU1

68725-42A10-CLM

Unavailable

2

EMBLEM, SUZUKI | MODEL K6 FOR N9J

68725-42A10-8YM

Unavailable

2

EMBLEM, SUZUKI | MODEL K7

68725-42A10-8YM

Unavailable

3

SCREW

02142-0612B

$2.05

4

SPACER (6.1X8X3.5)

09180-06245

$2.11

5

SCREW

02112-36127

$3.15

6

SCREW

02142-0620B

$1.80

7

SPACER (6.1X8X12)

09180-06249

$2.10

8

BRACE, COVER LOWER

51814-44A00

$5.50

9

FENDER, FRONT (YELLOW) | MODEL K6 FOR YU1 This part replaces 53111-44A00-YU1.

53111-44A20-YU1

$152.23

9

FENDER, FRONT (BLUE) | MODEL K6 FOR N9J

53111-44A00-YJ4

Unavailable

9

FENDER, FRONT (YELLOW) | MODEL K7 FOR YU1

53111-44A20-YU1

$152.23

9

FENDER, FRONT (BLUE) | MODEL K7 FOR N9J

53111-44A20-YLW

Unavailable

10

BOLT

01550-0616B

$2.48

11

WASHER (6.3X16X1)

09169-06053

$1.49

12

EMLBEM "S" This part replaces 68151-07G10-YCF.

68151-07G11-YCF

$15.95
