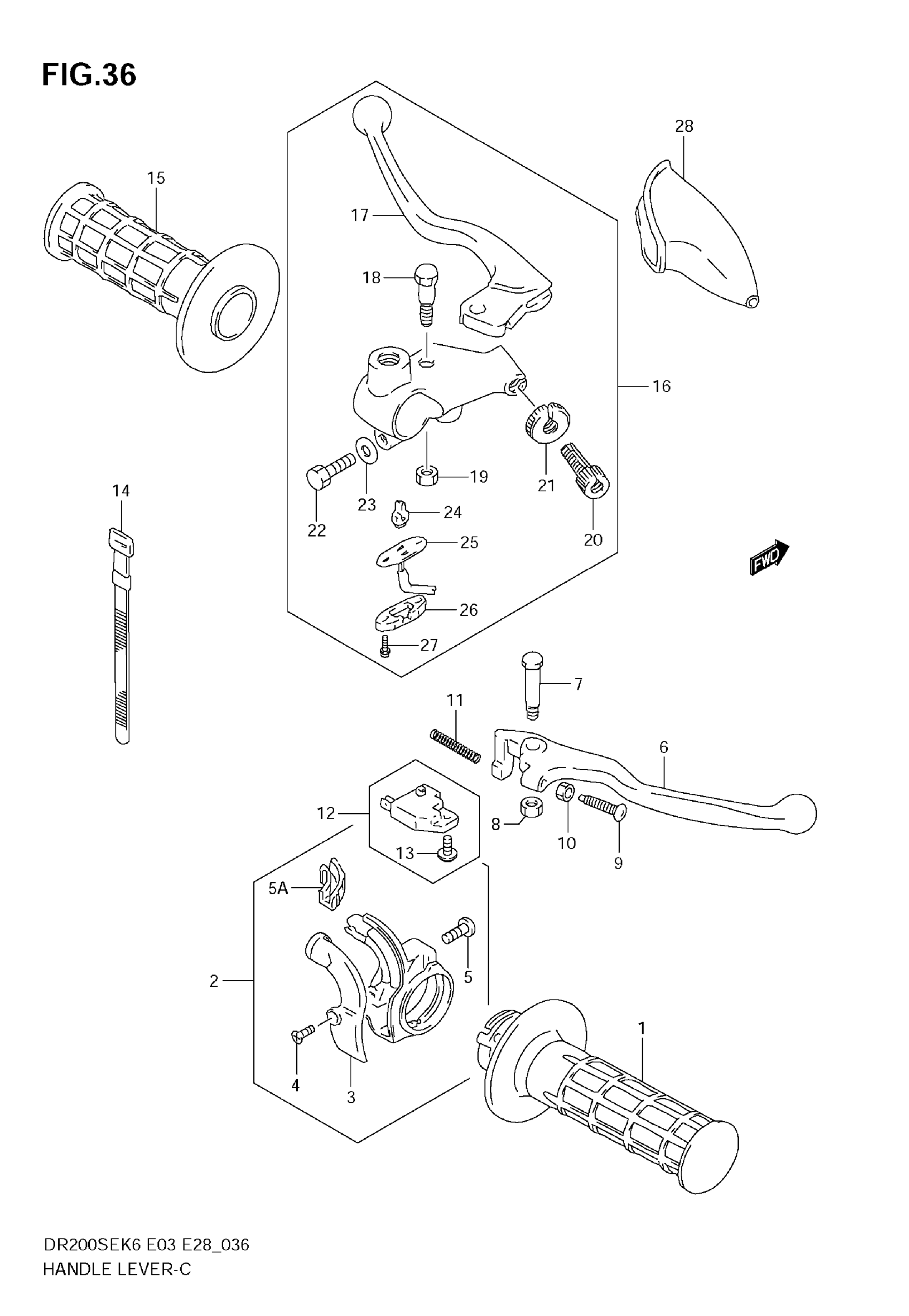

Suzuki DR200SE (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D00

$31.85

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 5A This part replaces 57100-13601.

57100-13610

$56.04

3

COVER

57129-13601

$11.95

4

SCREW

02122-0410B

$2.45

5

SCREW

02112-05167

$1.97

5A

PIECE, GUIDE

57122-13600

Unavailable

6

LEVER, BRAKE

57421-03D00

$15.47

7

BOLT, BRAKE LEVER

57431-14500

$6.28

8

NUT

08319-2106A

$1.91

9

BOLT, ADJUST

57431-14511

$5.80

10

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

11

SPRING, RETURN

57318-14502

$4.48

12

SWITCH ASSY,FR BRAKE | Includes Item(s) 13 This part replaces 57460-17C11.

57460-14J02

$38.46

13

SCREW

57465-17C00

$2.19

14

CLAMP (L:120)

09407-12402

$3.04

15

GRIP LH

57211-27C00

$12.28

16

LEVER ASSY,CLUT | Includes Item(s) 17 - 27 This part replaces 57500-44AD0.

57500-44AF1

$65.70

17

LEVER

57620-15D11

$24.43

18

BOLT

57431-11013

$6.31

19

NUT

08319-2106A

$1.91

20

ADJUSTER

57441-11010

$5.62

21

NUT

57442-44B00

$12.40

22

BOLT

01500-06207

$2.28

23

WASHER

08322-01067

$2.13

24

CONTACT

57465-18601

$4.34

25

WIRE HARNESS

57541-49100

$9.92

26

COVER

57481-33010

$5.84

27

SCREW

57484-49110

$1.98

28

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.56
