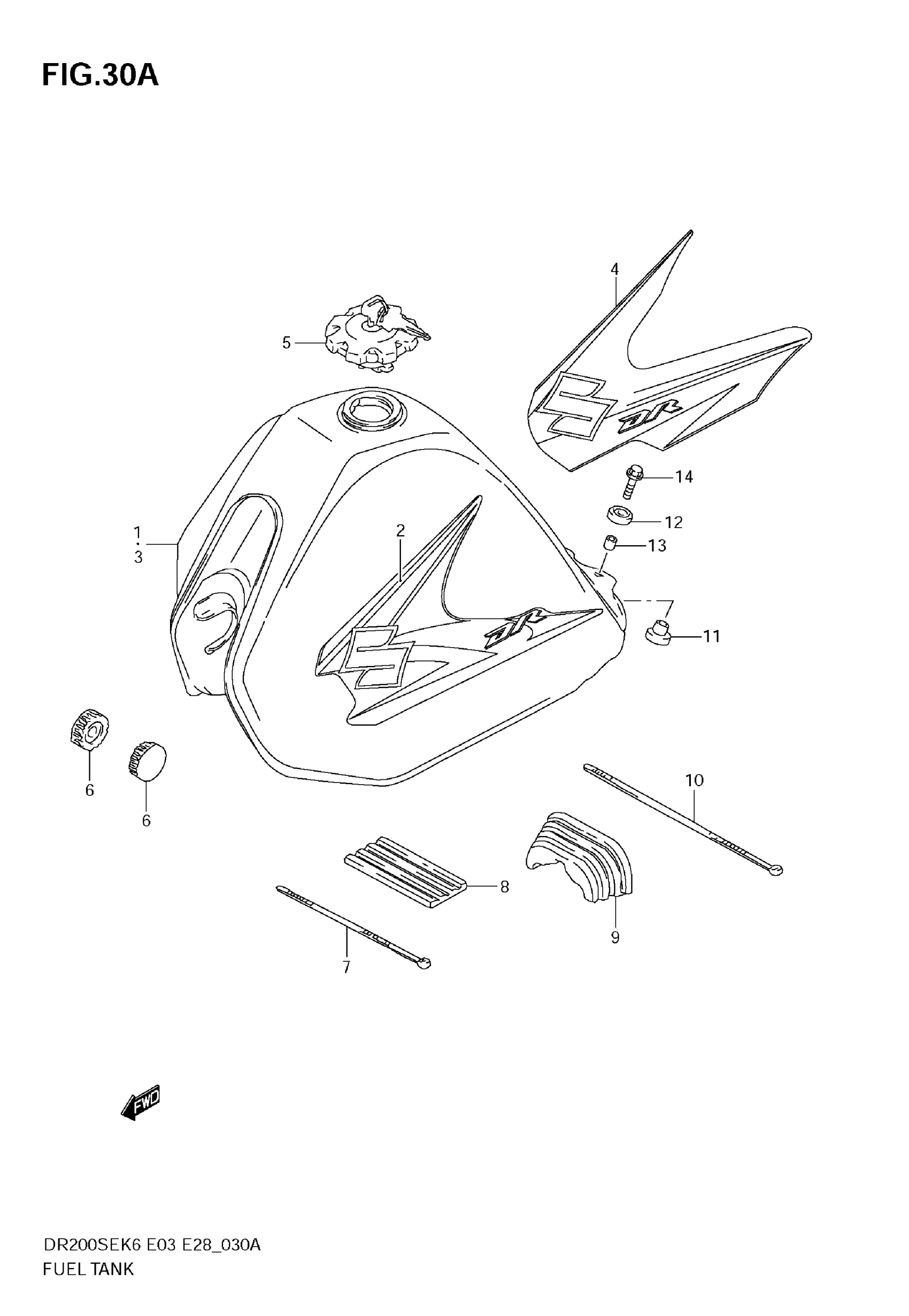

Suzuki DR200SE (2009) FUEL TANK (MODEL K8/K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | MODEL K8

44100-42AH0-019

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8

44100-42AH0-YKY

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K8 E33

44100-42AG0-019

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K8 E33; Includes Item(s) 2 - 2

44100-42AG0-YKY

Unavailable

2

TAPE SET | MODEL K8 FOR 019

68110-42AB0-FDC

Unavailable

2

TAPE SET | MODEL K8 FOR YKY

68110-42AB0-FDD

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K9

44100-42AJ1-019

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL K9

44100-42AJ1-30H

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL K9 E33

44100-42AK1-019

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL K9 E33; Includes Item(s) 4 - 4

44100-42AK1-30H

Unavailable

4

TAPE SET | MODEL K9 FOR 019

68110-42AC0-GJB

Unavailable

4

TAPE SET | MODEL K9 FOR 30H

68110-42AC0-GJC

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

$158.35

5

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

6

CUSHION

09329-10016

$3.10

7

CLAMP

09407-25402

$4.64

8

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

9

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

10

CLAMP

09407-30402

$4.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

CUSHION

09320-14013

$2.11

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

BOLT

01570-0630B

$2.13
