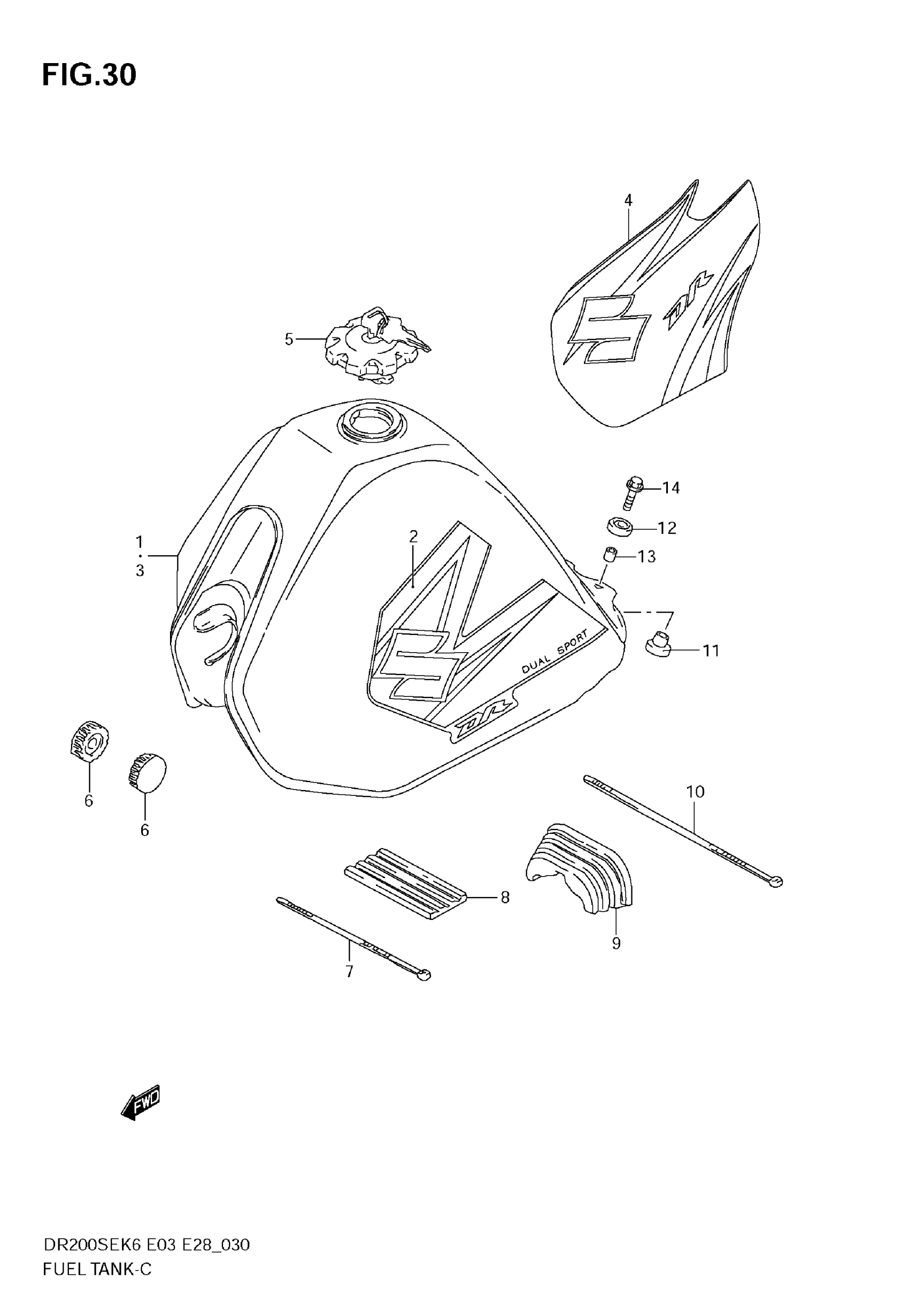

Suzuki DR200SE (2009) FUEL TANK (MODEL K6/K7) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | MODEL K6 FOR YU1

44100-42AC0-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K6 FOR N9J

44100-42AC0-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K6 E33 FOR YU1

44100-42AD0-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K6 E33 FOR N9J; Includes Item(s) 2 - 2

44100-42AD0-YC2

Unavailable

2

TAPE SET, FUEL TANK | MODEL K6 FOR YU1

68110-42A90-CET

Unavailable

2

TAPE SET, FUEL TANK | MODEL K6 FOR YC2

68110-42A90-CLK

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K7 FOR YU1

44100-42AE0-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K7 FOR N9J

44100-42AE0-YC2

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K7 E33 FOR YU1

44100-42AF0-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K7 E33 FOR N9J; Includes Item(s) 4 - 4

44100-42AF0-YC2

Unavailable

4

TAPE SET | MODEL K7 FOR YU1

68110-42AA0-DRA

Unavailable

4

TAPE SET | MODEL K7 FOR YC2

68110-42AA0-DVM

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

$158.35

5

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

6

CUSHION

09329-10016

$3.10

7

CLAMP

09407-25402

$4.64

8

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

9

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

10

CLAMP

09407-30402

$4.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

CUSHION

09320-14013

$2.11

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

BOLT

01570-0630B

$2.13
