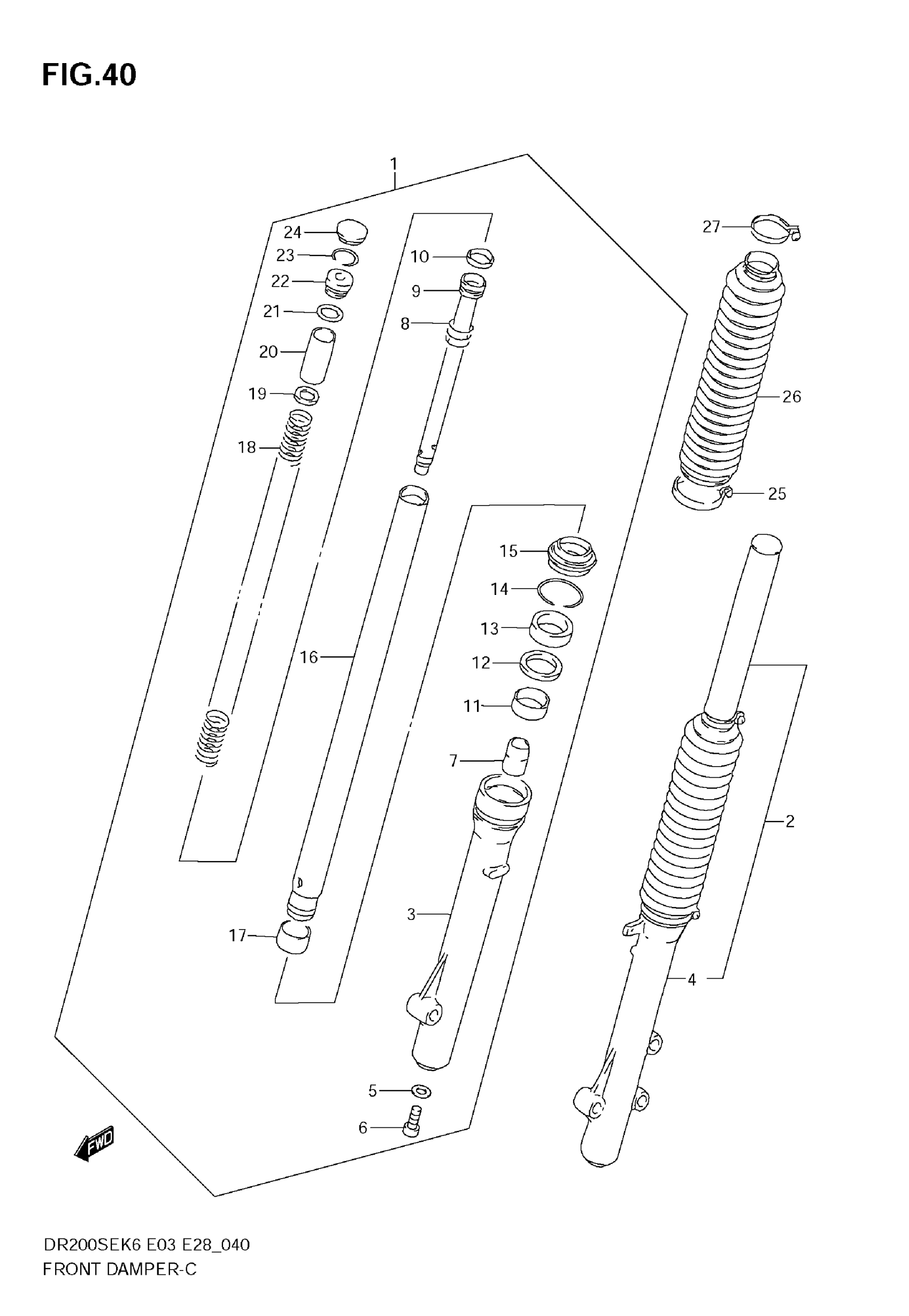

Suzuki DR200SE (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-42AA0

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-42AA0

Unavailable

3

TUBE, OUTER RH

51131-01A01

Unavailable

4

TUBE, OUTER LH

51141-01A01

Unavailable

5

GASKET

51148-36011

$3.56

6

BOLT, CENTER

51147-06F10

$5.98

7

PIECE, OIL LOCK

51195-43530

$20.32

8

SPRING, REBOUND

51177-01A00

Unavailable

9

CYLINDER

51146-42AA0

Unavailable

10

RING, PISTON

51196-45200

$8.42

11

BUSH, GUIDE

51152-33300

$15.04

12

SPACER, SEAL

51168-30B00

$6.31

13

SEAL, OIL

51153-19D10

$22.96

14

RING, OIL SEAL STOPPER

51156-01A00

$4.34

15

DUST SEAL

51173-01A00

$17.68

16

TUBE, INNER

51110-01A30

Unavailable

17

PISTON

51121-33300

$25.33

18

SPRING, MAIN

51171-42AA0

Unavailable

19

SEAT, SPRING

51192-20510

Unavailable

20

SPACER, SPRING

51176-42AA0

Unavailable

21

O RING

51181-31030

$4.37

22

BOLT, SPRING

51175-47400

Unavailable

23

RING, STOPPER

51169-47400

$2.90

24

CAP

51189-31230

$9.37

25

BAND, BOOT LOWER

51576-42AA0

$13.28

26

BOOT This part replaces 51571-01A00-019.

51571-01A01-019

$45.43

27

BAND, BOOT UPPER

51575-01A00

$11.07
