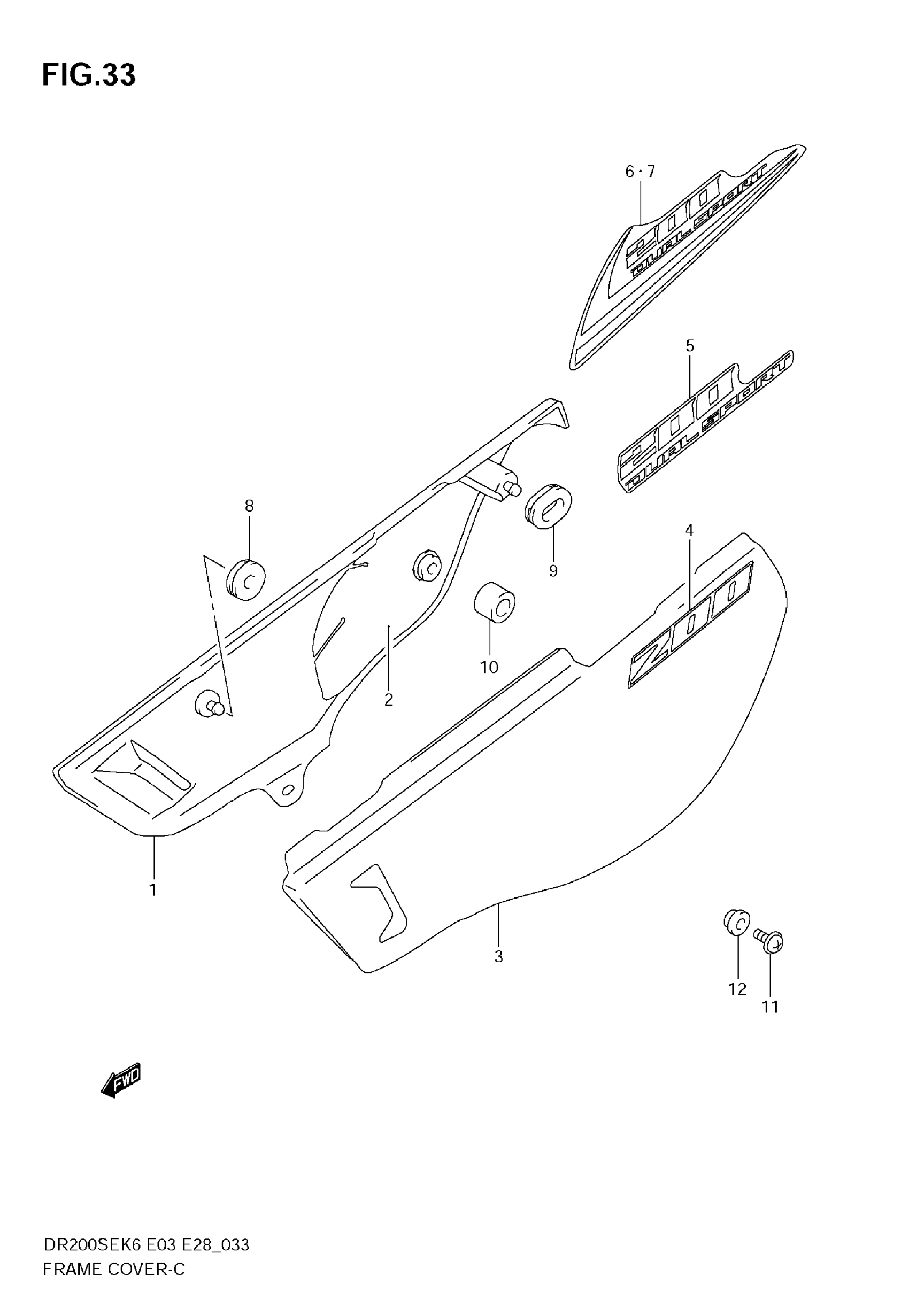

Suzuki DR200SE (2009) FRAME COVER (MODEL K6/K7/K8) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL K6 This part replaces 47111-44AA0-30H.

47111-44AC0-30H

$99.47

1

COVER, FRAME RH (WHITE) | MODEL K7/K8

47111-44AC0-30H

$99.47

2

SHIELD, FRAME COVER RH

47166-44AA0

$30.37

3

COVER, FRAME LH (WHITE) | MODEL K6 This part replaces 47211-44AA0-30H.

47211-44AB0-30H

$95.75

3

COVER, FRAME LH (WHITE) | MODEL K7/K8

47211-44AB0-30H

$95.75

4

EMBLEM | MODEL K6 FOR YU1

68131-42A40-CLM

Unavailable

4

EMBLEM | MODEL K6 FOR N9J

68131-42A40-8YM

Unavailable

5

EMBLEM | MODEL K7

68131-42A50-DVN

$19.15

6

TAPE, RH | MODEL K8 FOR 019

68135-42A20-EVH

Unavailable

6

TAPE, RH | MODEL K8 FOR YKY

68135-42A20-EVM

Unavailable

7

TAPE, LH | MODEL K8 FOR 019

68145-42A20-EVH

Unavailable

7

TAPE, LH | MODEL K8 FOR YKY

68145-42A20-EVM

Unavailable

8

CUSHION

09320-08018

$3.04

9

CUSHION

09320-08029

$2.41

10

CUSHION

09321-10027

$6.80

11

SCREW (6X16)

09136-06017

$2.59

12

WASHER This part replaces 09169-06031.

09169-06041

$2.20
