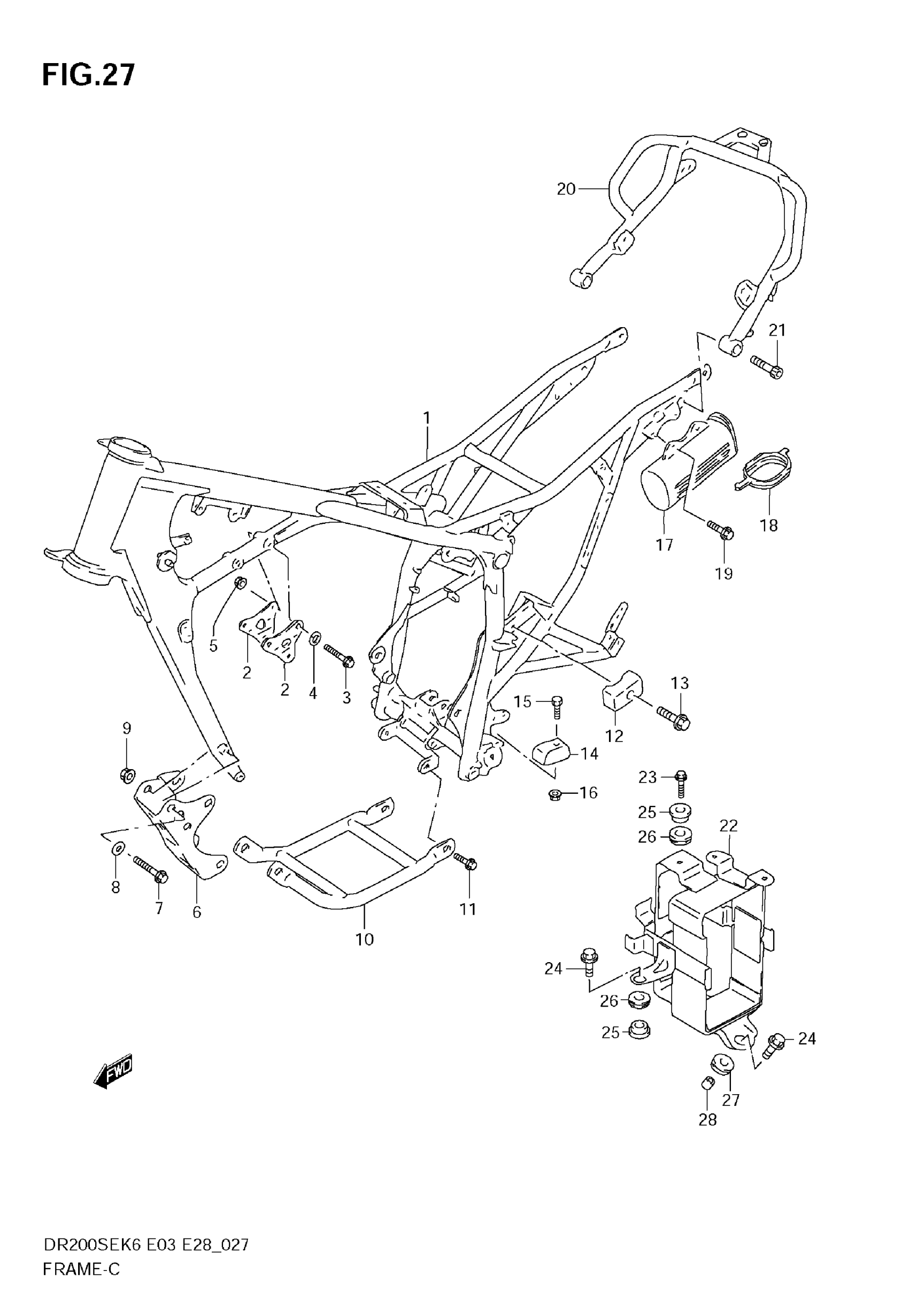

Suzuki DR200SE (2009) FRAME Diagram

#

Description
Price

1

FRAME (GRAY) | MODEL K6/K7

41100-44AD1-YU8

Unavailable

1

FRAME (GRAY) | MODEL K8/K9 E3,E28

41100-44AL0-YU8

Unavailable

1

FRAME (GRAY) | MODEL K8/K9 E33

41100-44AP0-YU8

Unavailable

2

PLATE, MOUNT, UPPER (BLACK)

41991-42A00-291

$15.42

3

BOLT (8X53)

09103-08332

$4.60

4

LOCK WASHER

08321-0108B

Unavailable

5

NUT

08319-3108B

$2.73

6

PLATE, MOUNT LOWER (GRAY)

41992-44AA1-YU8

Unavailable

7

BOLT (8X65)

09103-08328

Unavailable

8

LOCK WASHER

08321-0108B

Unavailable

9

NUT

08319-3108B

$2.73

10

PROTECTOR,ENGIN This part replaces 42510-44AA0-YU8.

42510-44AA1-YU8

Unavailable

11

BOLT

01551-1016B

Unavailable

12

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

13

BOLT

01580-0635B

$4.00

14

GUIDE, CHAIN LOWER

43912-42AA0

$29.33

15

BOLT This part replaces 09128-06006.

09128-06057

$1.65

16

NUT

08319-3106B

$2.45

17

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

18

CAP, TOOL HOLDER

41552-37210

$9.78

19

BOLT (6X16) | MODEL K6

09116-06165

$3.03

19

BOLT (6X16) | MODEL K7/K8/K9

09116-06211

Unavailable

20

GRIP, REAR (GRAY)

43980-44AB2-YU8

Unavailable

21

BOLT (8X30)

09106-08105

$3.78

22

HOLDER, BATTERY

41540-44AA0

Unavailable

23

BOLT, UPPER

01550-0620B

$2.39

24

BOLT, LOWER | MODEL K6

09116-06131

$2.36

24

BOLT, LOWER | MODEL K7/K8/K9

09116-06047

Unavailable

25

SPACER

09169-06065

$4.32

26

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

27

CUSHION

09320-10501

$6.23

28

SPACER, LOWER LH

09180-06285

$2.74
