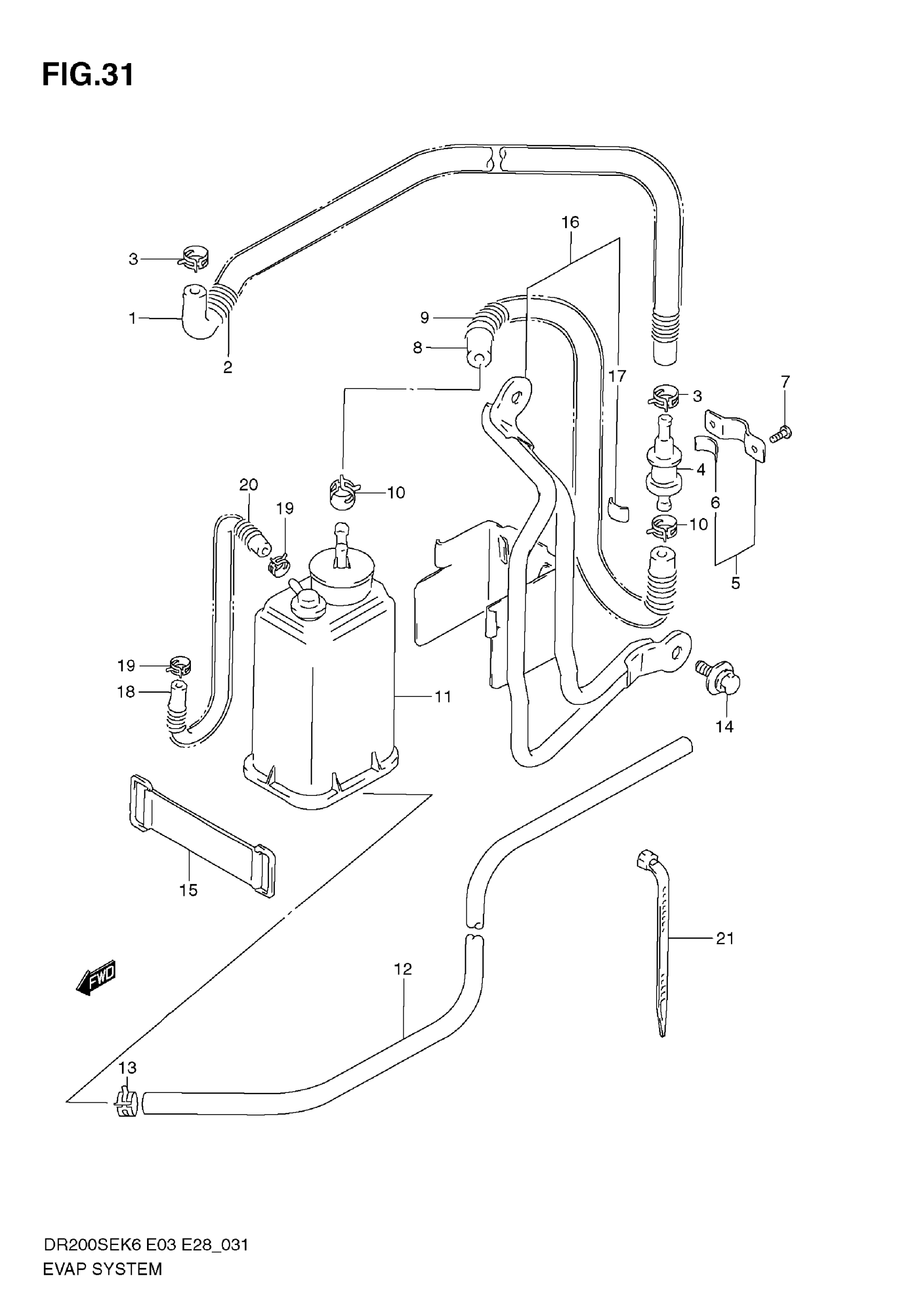

Suzuki DR200SE (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, FUEL TANK | MODEL K6/K7

09343-05509

Unavailable

1

HOSE, FUEL TANK | MODEL K8/K9

44434-42A00

Unavailable

2

SPRING

09440-13053

Unavailable

3

CLIP

09401-11413

$2.26

4

VALVE, ROLL OVER

44240-38A00

$61.15

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW

02112-0408B

$1.83

8

HOSE, VALVE CHARGE | MODEL K6/K7

09343-05414

Unavailable

8

HOSE, VALVE CHARGE | MODEL K8/K9

44435-42A00

Unavailable

9

SPRING

09440-13043

$6.04

10

CLIP

09401-11413

$2.26

11

CANISTER

17210-44A00

Unavailable

12

HOSE(7X11X2000) | MODEL K6/K7 This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

12

HOSE, CANISTER PURGE | MODEL K8/K9

44436-42A00

Unavailable

13

CLIP (ID:10.5,H:8)

09401-10409

$2.26

14

BOLT

09116-06130

$2.28

15

BAND

09462-00034

$4.24

16

PLATE | Includes Item(s) 17

44880-44AB0

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

HOSE (3.5X7.5X600) This part replaces 09355-35755-600.

09355-35007-600

$6.94

19

CLIP

09401-06405

$2.45

20

SPRING

09440-10031

Unavailable

21

CLAMP

09407-14403

$2.26
