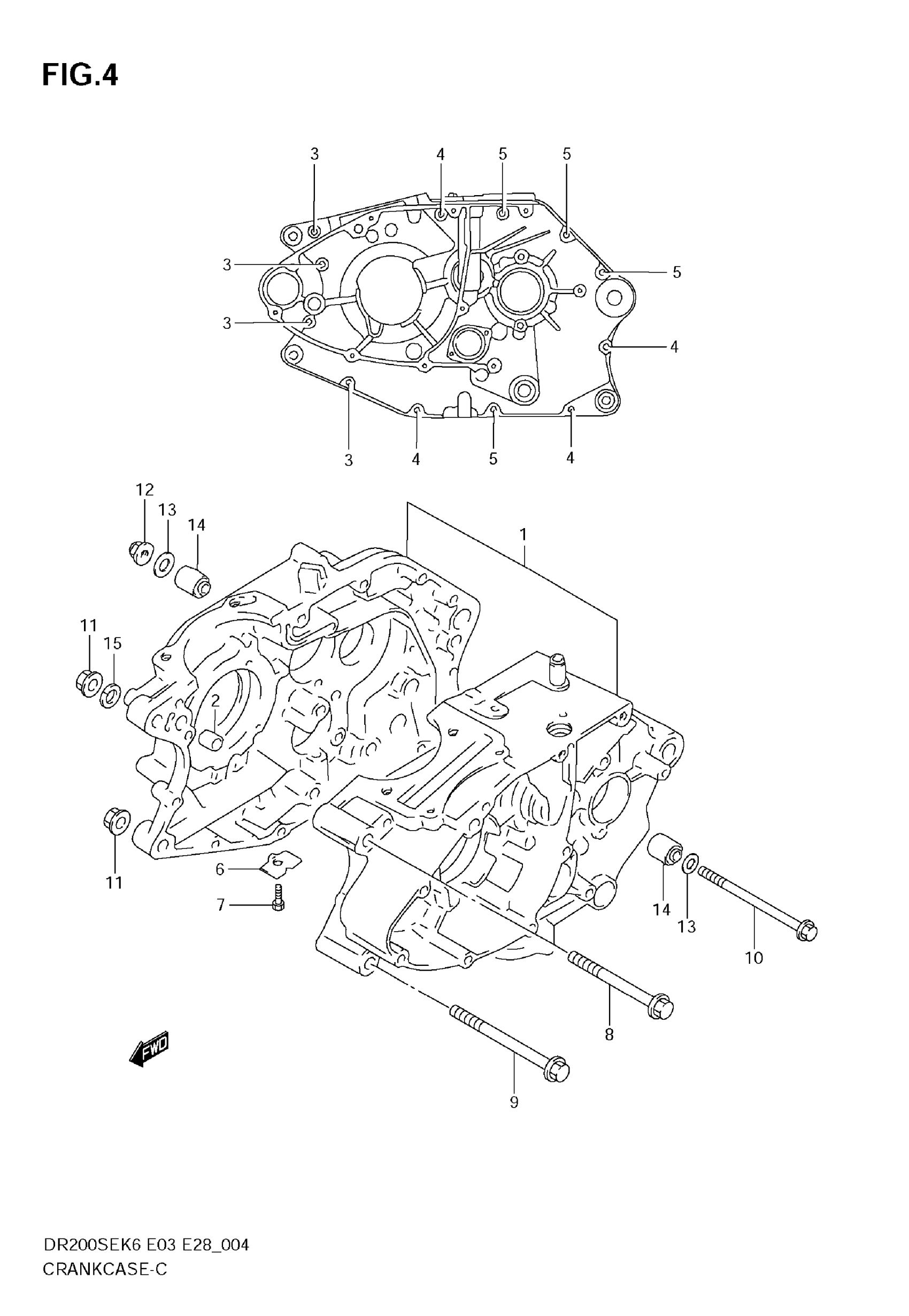

Suzuki DR200SE (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | Includes Item(s) 2 - 7

11300-42A24

Unavailable

2

KNOCK PIN

04211-13189

$2.19

3

BOLT

01547-0655B

$2.75

4

BOLT

01547-0660B

$3.18

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

BOLT

01500-0610B

$1.81

8

BOLT (10X80)

09103-10370

$7.30

9

BOLT (10X90)

09103-10374

$6.20

10

BOLT (8X115)

09103-08138

Unavailable

11

NUT

09159-10115

$3.55

12

NUT

08319-3108B

$2.73

13

WASHER

08212-08182

Unavailable

14

BUSH

09319-08032

Unavailable

15

LOCK WASHER

08321-0110B

$2.83
