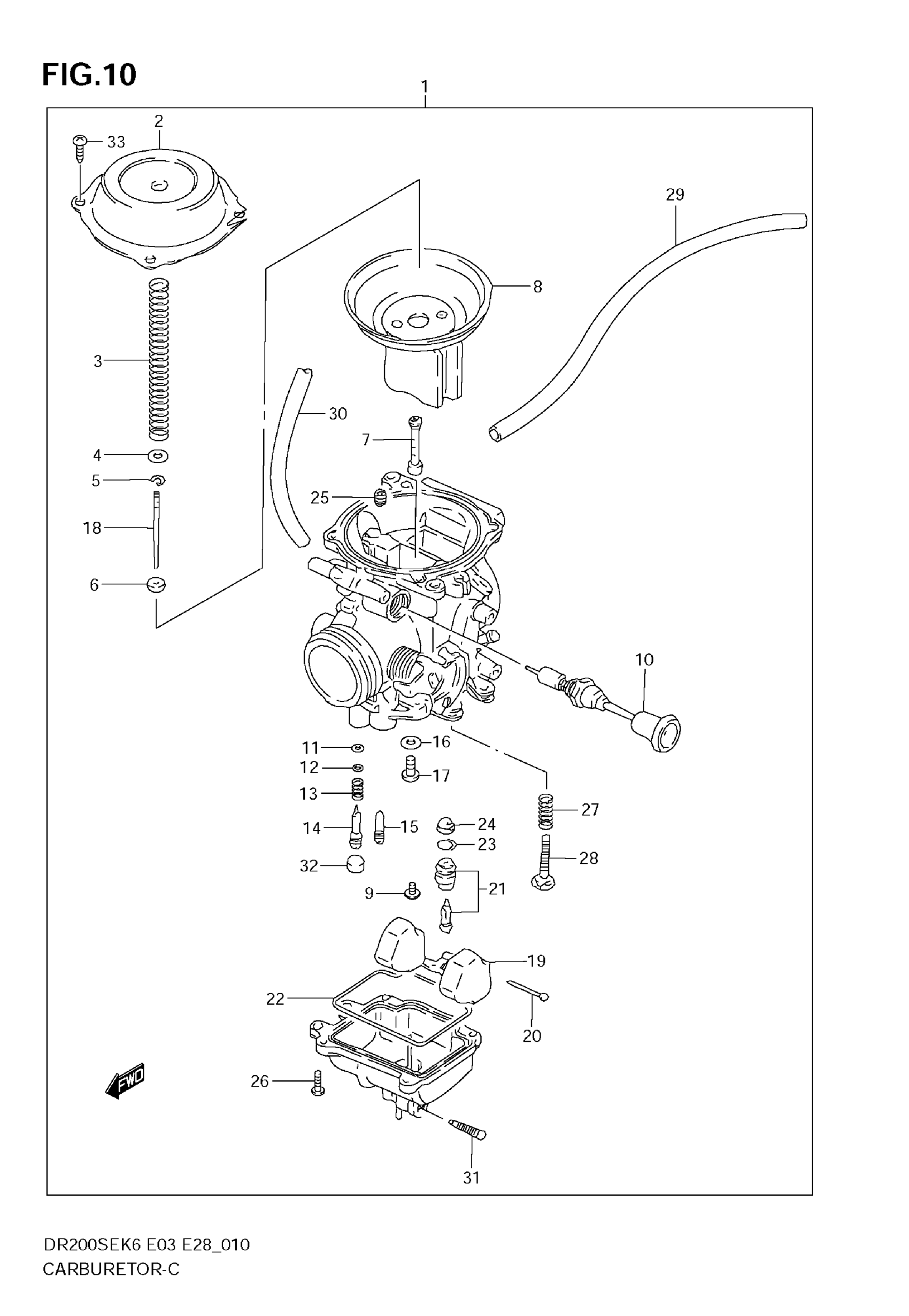

Suzuki DR200SE (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | E3,E28 This part replaces 13200-42AC1.

13200-42AC2

$540.00

1

CARBURETOR ASSY | E33; Includes Item(s) 2 - 33 This part replaces 13200-42AE1.

13200-42AE2

$487.62

2

COVER

13502-42A00

$38.47

3

SPRING

13417-42A00

$6.79

4

RING

13382-42A00

$4.48

5

CLIP, NEEDLE

13394-10010

$5.45

6

RING

13387-47010

$7.22

7

JET, NEEDLE (P-5M)

09494-00881

$53.92

8

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

$170.83

9

SCREW

13602-43410

$2.92

10

PLUNGER ASSY

13411-42A20

$38.78

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

WASHER

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

SCREW, PILOT (1 1/2)

13279-47070

$13.36

15

JET, PILOT (35)

09492-35008

$9.32

16

WASHER

13382-03110

$2.80

17

JET, MAIN (125)

09491-25010

$11.02

18

NEEDLE, JET (5D77-1)

13383-42AC0

$16.28

19

FLOAT

13250-42A00

$34.08

20

PIN, FLOAT

13254-92311

$2.07

21

VALVE ASSY, NEEDLE

13370-44500

$50.98

22

O RING, FLOAT CHAMBER

13251-42A00

$9.03

23

O RING

13374-35C00

$5.99

24

FILTER

13376-19F00

$10.28

25

JET, AIR (135)

09493-27001

$16.87

26

SCREW

02112-0412A

$1.49

27

SPRING

13268-37420

$5.32

28

ADJUSTER

13267-25D00

$14.20

29

HOSE,5X10X600 | L:600!250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

30

HOSE(4.5X8.5X60 | L:600!180 This part replaces 09355-45855-600.

09355-45001-600

$9.48

31

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

32

PLUG

13281-05A00

$4.60

33

SCREW

02112-0408B

$1.83
