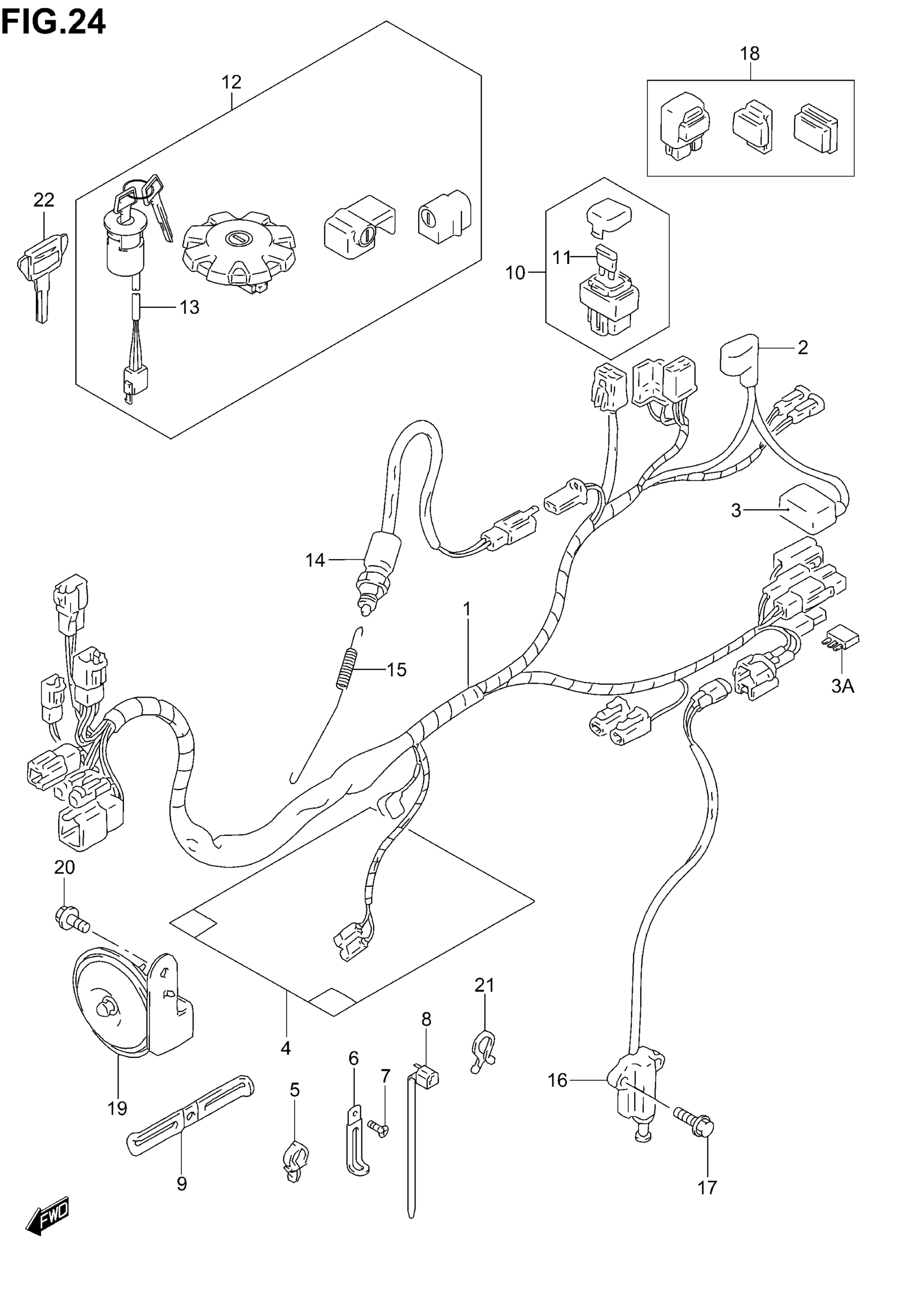

Suzuki DR200SE (2005) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3A

36610-42A50

Unavailable

2

CAP, RELAY

31861-10D00

Unavailable

3

CAP, BATTERY (+)

33624-10D00

$6.30

3A

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

4

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

5

CLAMP

09403-12404

Unavailable

6

CLAMP (L:45)

09404-06429

$1.83

6

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

7

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

8

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP (L:235)

09407-25401

$4.66

9

CLAMP, STARTER MOTOR LEAD

36651-05301

Unavailable

10

BOX ASSY, FUSE | Includes Item(s) 11

36740-24B01

$28.18

11

FUSE (20A)

09481-20101

$2.12

12

LOCK SET This part replaces 37000-44820.

37000-44821

Unavailable

12

LOCK SET | E33; Includes Item(s) 13 This part replaces 37000-44830.

37000-44831

Unavailable

13

SWITCH ASSY, IGNITION This part replaces 37110-44A01.

37110-44A20

$104.18

14

SWITCH ASSY, STOP LAMP | MODEL K1/K2/K3/K4

37740-31D00

$28.23

14

SWITCH ASSY, STOP LAMP | MODEL K5

37740-45D00

$18.27

15

SPRING

09443-06064

$5.20

16

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

17

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

18

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

19

HORN ASSY

38500-44B00

$87.70

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

CLIP, LEAD WIRE

09408-00012

$2.13

22

KEY, BLANK | OPT,TYPE C

37146-03A00

$9.89

22

KEY, BLANK | OPT,TYPE D

37146-03A10

$11.63

22

KEY, BLANK | OPT,TYPE E

37146-03A20

$12.10

22

KEY, BLANK | OPT,TYPE F

37146-03A30

$10.28
