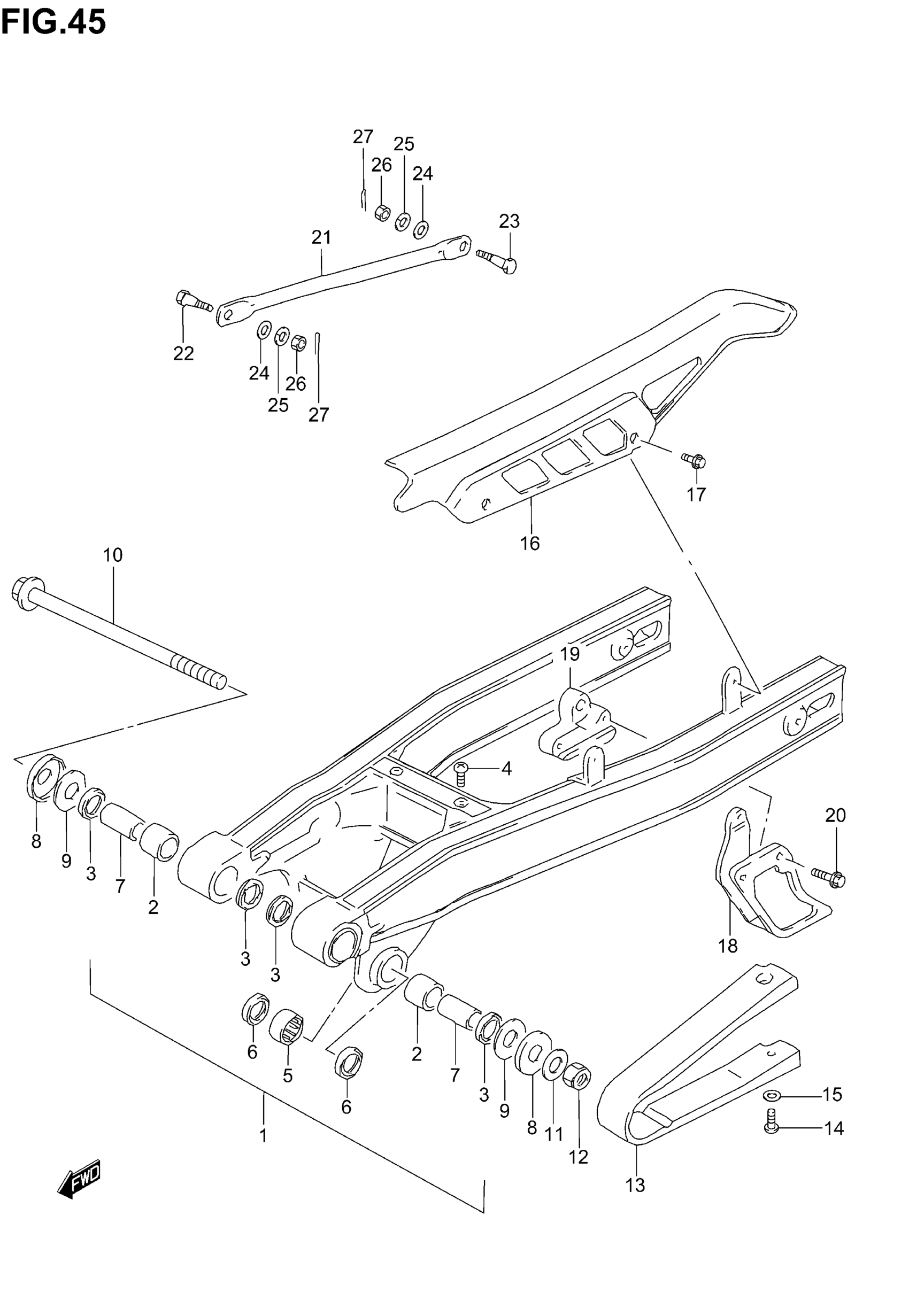

Suzuki DR200SE (2005) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGINGARM ASS | Includes Item(s) 2 - 6 This part replaces 61100-42840.

61100-42841

$691.53

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$16.28

3

OIL SEAL (20X27X5)

09283-20031

$5.24

4

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

5

BEARING (20X27X25)

09263-20053

$27.58

6

SEAL, DUST (20X27X4)

62647-44A00

$6.26

7

SPACER, RR SWGARM PVT

61251-42A00

$23.07

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

9

THRUST WASHER

08211-14322

$3.72

10

SHAFT, PIVOT

61211-26B01

$40.10

11

WASHER (14.5X24X2.3)

09160-14057

$3.15

12

NUT

09159-14019

$11.61

13

BUFFER, CHAIN TOUCH DEFENSE

61273-42A01

$37.53

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

WASHER

09169-06037

$2.45

16

CASE, CHAIN

61311-01A03

$63.38

17

BOLT (6X10)

09116-06096

$2.26

18

GUIDE, CHAIN This part replaces 61341-13A00.

61341-13A10

$38.45

19

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

$12.52

20

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

21

TORQUE LINK, REAR (SILVER)

64311-42A00-13L

$23.07

22

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 64321-42A00.

09119-08088

Unavailable

22

BOLT, TORQUE LINK FR | MODEL K2/K3/K4/K5

09111-08088

$6.20

23

BOLT (8X26.5)

09111-08013

$3.04

24

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

25

WASHER

09162-08008

$2.06

26

NUT

09140-08008

$1.49

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
