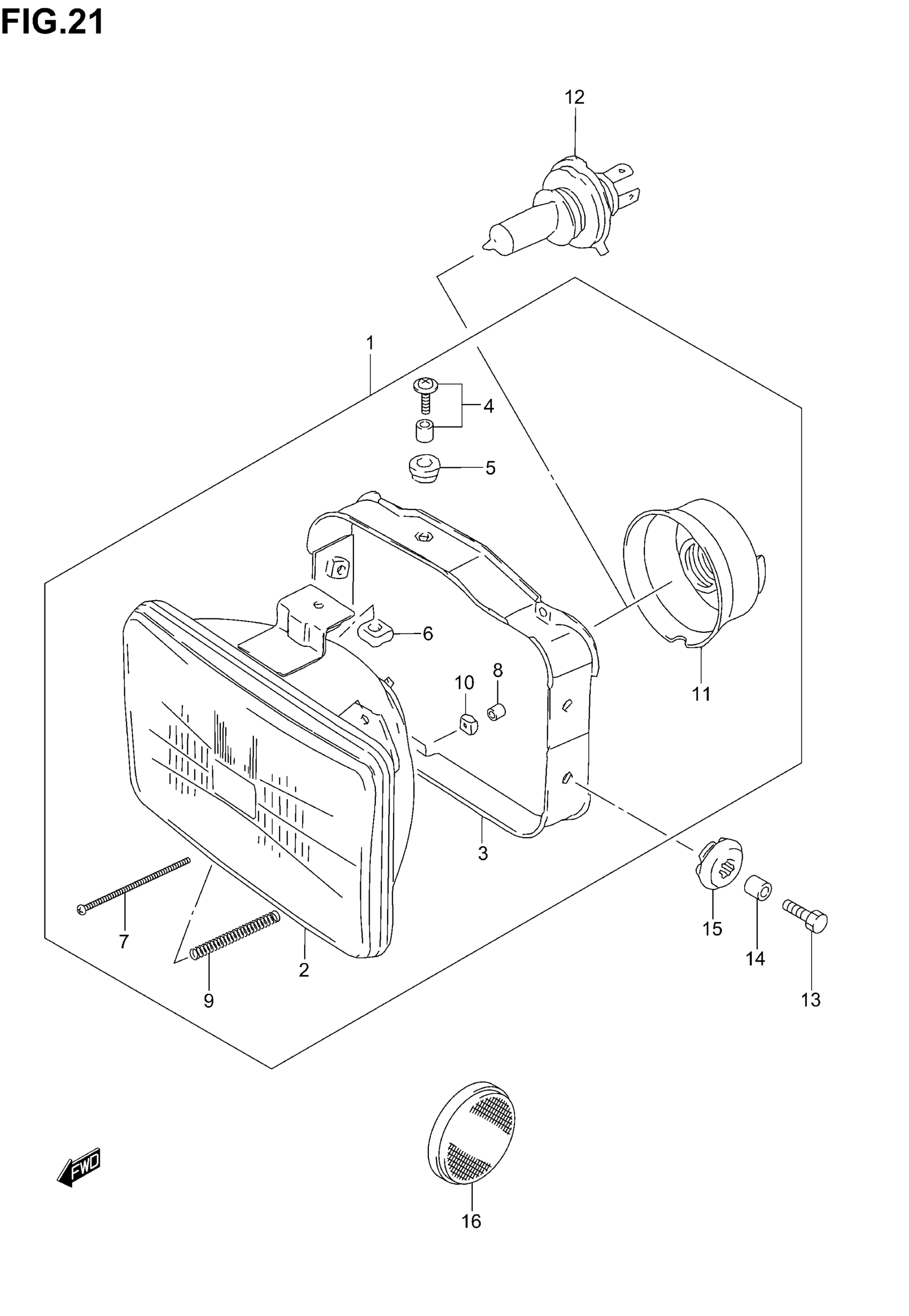

Suzuki DR200SE (2005) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 11 This part replaces 35100-14A32-999.

35100-14A33-999

$211.22

2

LAMP UNIT

35121-14A32

$88.10

3

RING, MOUNTING

35141-14A00

$37.53

4

.SCREW MOUNTING

35136-38A00

$4.02

5

CUSHION

35139-45230

$1.98

6

NUT

35135-45900

$3.25

7

SCREW

35151-45900

$3.65

8

CAP

35158-43400

$1.92

9

SPRING

35154-49200

$5.50

10

.NUT

35152-45600

$3.47

11

.COVER SOCKET

35173-01440

$17.37

12

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X9X9)

09180-06263

$2.03

15

CUSHION

09320-09018

$2.44

16

REFLECTOR, FRONT SIDE

35950-14A00

$16.94
