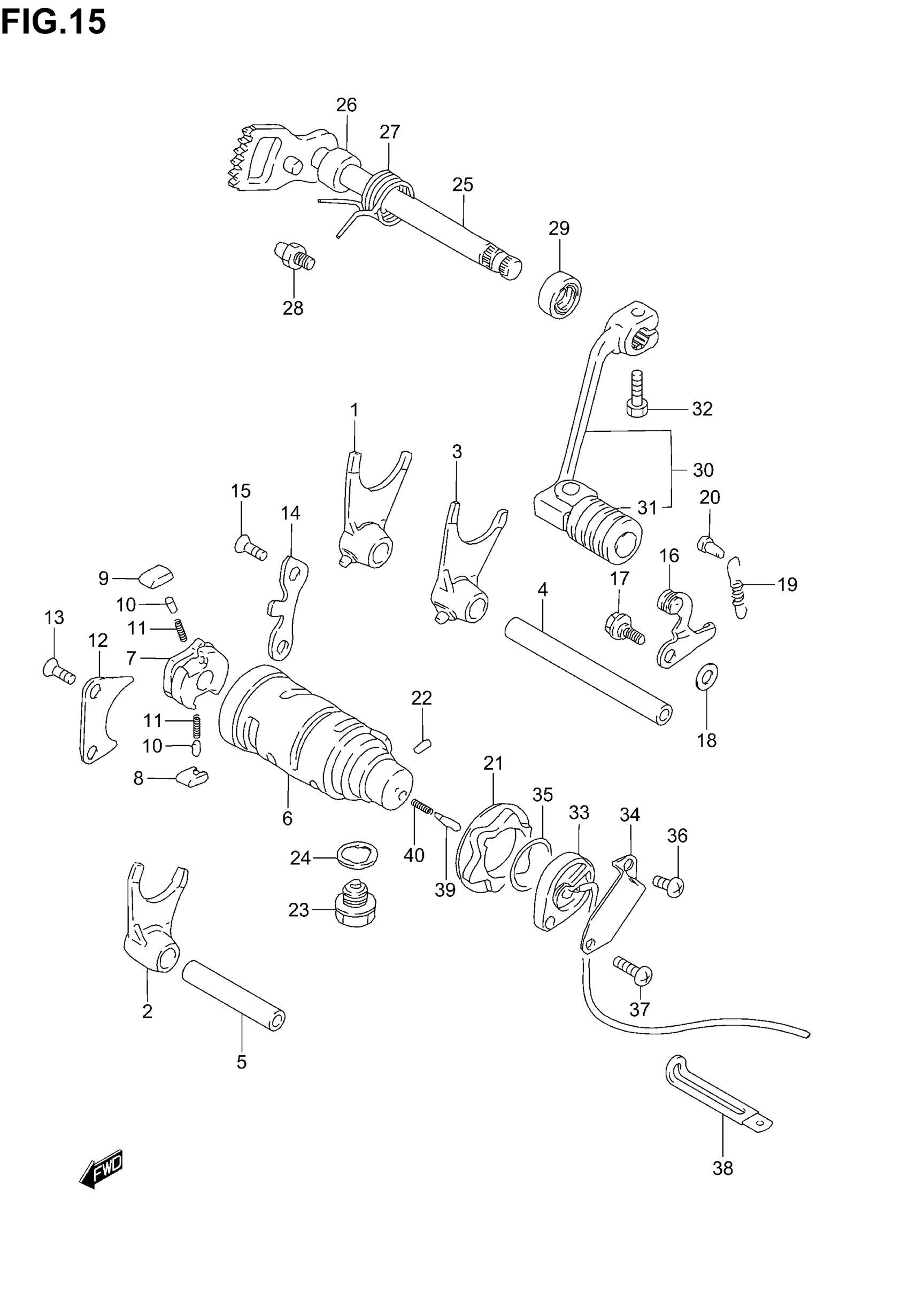

Suzuki DR200SE (2005) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-42A02

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-42A02

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-42A02

Unavailable

4

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$18.02

5

SHAFT, GEAR SHIFT FORK, NO.2

25421-35410

$23.47

6

CAM, GEAR SHIFT

25310-42A00

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

ROLLER (5X8)

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

16

STOPPER, GEAR SHIFT CAM

25350-42A01

Unavailable

17

BOLT

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09443-10036

$4.60

20

HOOK

09223-04001

$1.68

21

PLATE, GEAR SHIFT CAM STOPPER

25381-04700

Unavailable

22

PIN

04221-04069

$2.12

23

PLUG This part replaces 09247-14012.

09247-14026

$3.76

24

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

25

SHAFT, GEAR SHIFTING

25510-05201

$90.20

26

SPACER (12X20X15.3)

09180-12068

$3.16

27

SPRING

09444-26023

$4.83

28

STOPPER, RETURN SPRING

25671-01011

$4.48

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

30

LEVER ASSY, GEAR SHIFT | Includes Item(s) 31

25600-42A00

$49.33

31

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

32

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

33

BASE ASSY, NEUTRAL SWITCH

37720-42A30

$41.22

34

PROTECTOR, GEAR SHIFT SWITCH

37721-42A00

$3.37

35

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

36

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

37

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

38

CLAMP (L:45)

09404-06429

$1.83

39

CONTACT

09209-05011

$2.20

40

SPRING

09440-04010

$1.54
