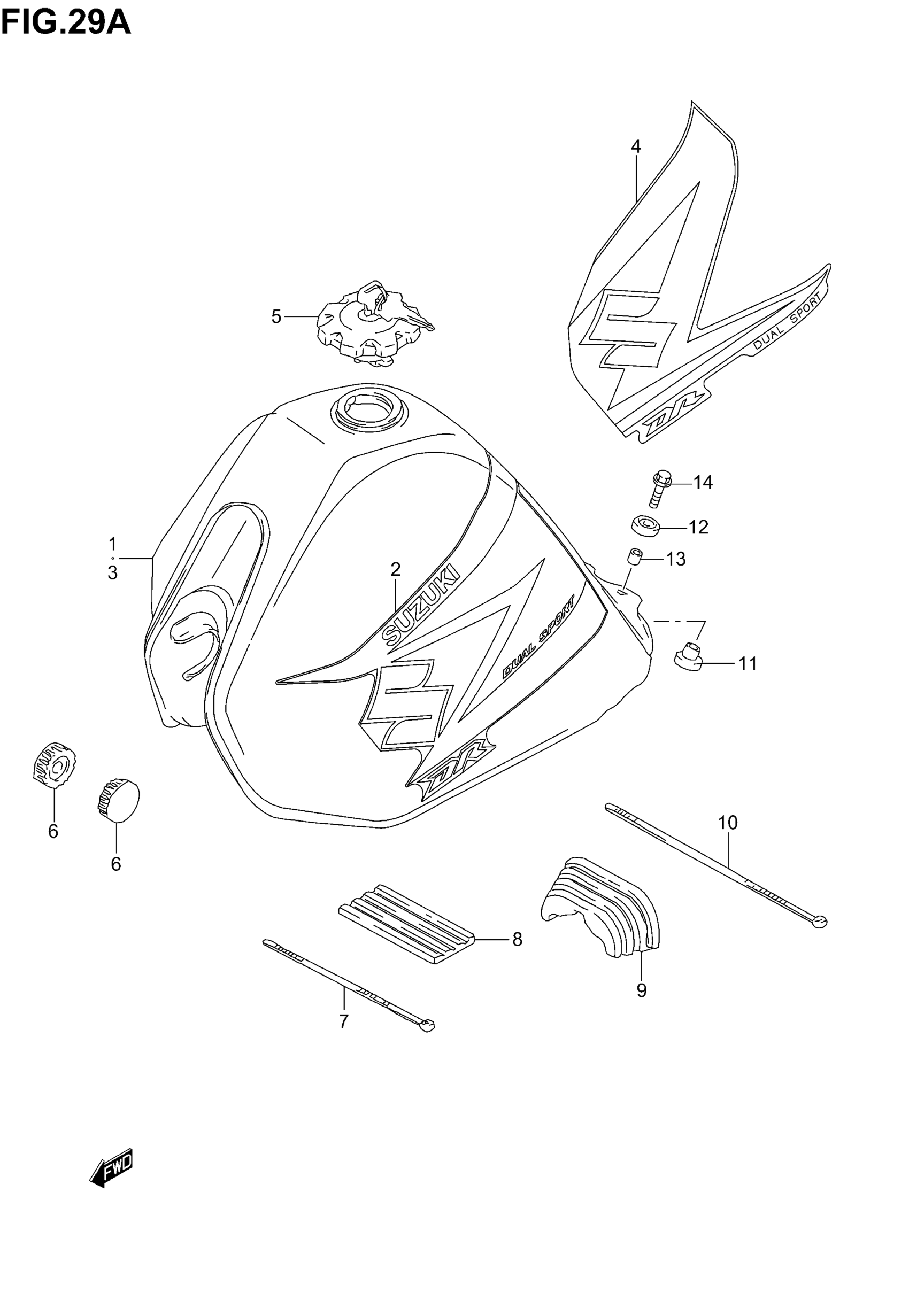

Suzuki DR200SE (2005) FUEL TANK (MODEL K4/K5) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW) | MODEL K4 FOR YU1

49200-44A00-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K4 FOR N9J

49200-44A00-YC2

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL K4 E33 FOR YU1

49200-44A10-YU1

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K4 E33 FOR N9J; Includes Item(s) 2 - 2

49200-44A10-YC2

Unavailable

2

TAPE SET, FUEL TANK | MODEL K4 FOR YU1

68110-44AS0-NN2

Unavailable

2

TAPE SET, FUEL TANK | MODEL K4 FOR YC2

68110-44AS0-ABM

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K5 FOR YU1

44100-42A90-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K5 FOR N9J

44100-42A90-YC2

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K5 E33 FOR YU1

44100-42AA0-YU1

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K5 E33 FOR N9J; Includes Item(s) 4 - 4

44100-42AA0-YC2

Unavailable

4

TAPE SET, FUEL TANK | MODEL K5 FOR YU1

68110-42A80-YJF

Unavailable

4

TAPE SET, FUEL TANK | MODEL K5 FOR YC2

68110-42A80-YJE

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

$158.35

5

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

6

CUSHION

09329-10016

$3.10

7

CLAMP

09407-25402

$4.64

8

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

9

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

10

CLAMP

09407-30402

$4.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

CUSHION

09320-14013

$2.11

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

BOLT This part replaces 01570-06303.

01570-0630A

$3.03
