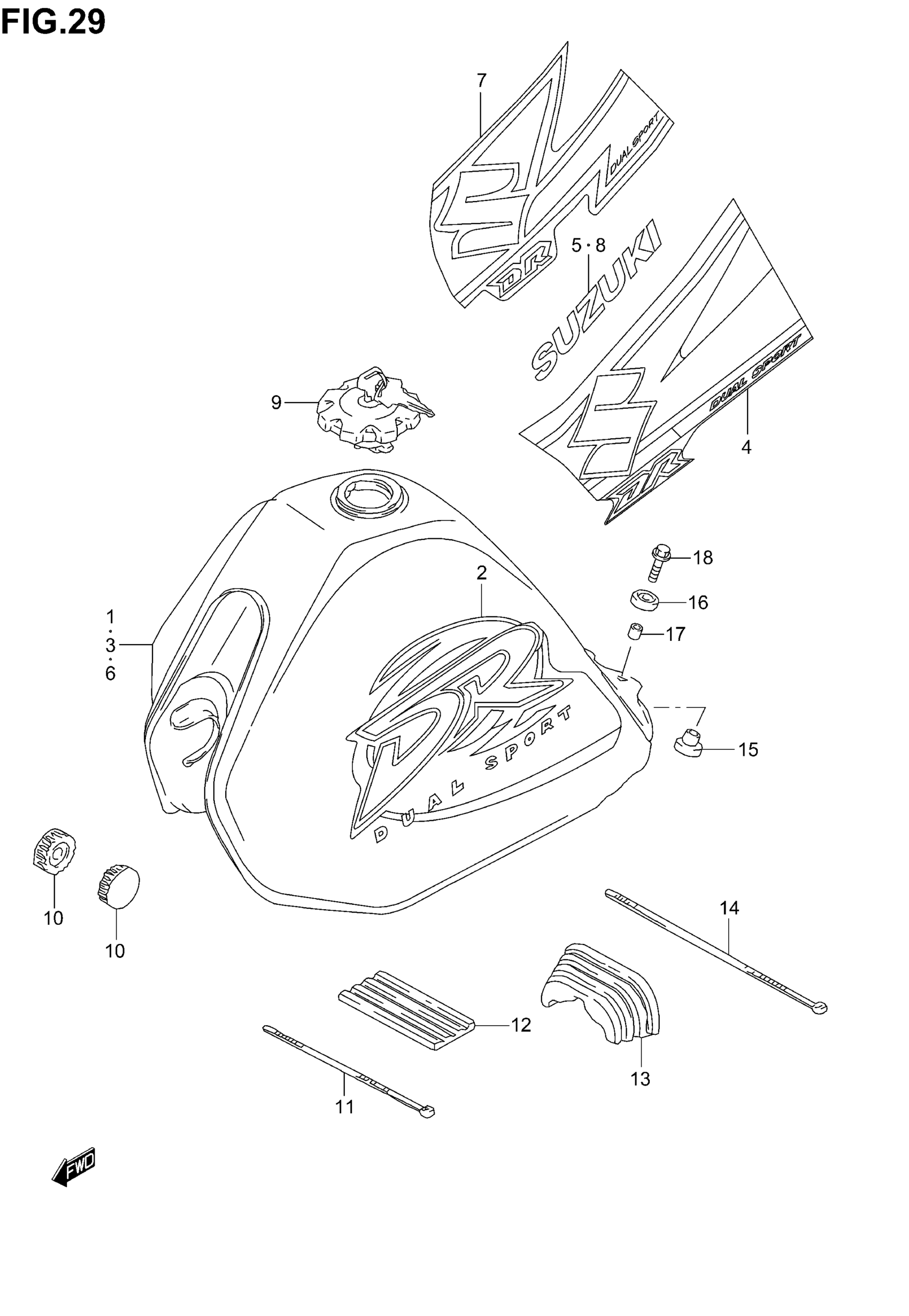

Suzuki DR200SE (2005) FUEL TANK (MODEL K1/K2/K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | MODEL K1

49100-44AM1-YEX

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K1 E33; Includes Item(s) 2

49100-44AN1-YEX

Unavailable

2

TAPE SET, FUEL TANK | MODEL K1

68110-44AP0-YS2

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K2

49100-44AQ0-YU1

Unavailable

3

TANK ASSY, FUEL (YELLOW) | MODEL K2 E33; Includes Item(s) 4 - 5

49100-44AR0-YU1

Unavailable

4

TAPE SET, FUEL TANK | MODEL K2

68110-44AQ0-GY7

Unavailable

5

EMBLEM (BLACK) | MODEL K2

68111-44A10-019

Unavailable

6

TANK ASSY, FUEL (YELLOW) | MODEL K3 FOR YU1

49100-44AS0-YU1

Unavailable

6

TANK ASSY, FUEL (BLUE) | MODEL K3 FOR N9J

49100-44AS0-YC2

Unavailable

6

TANK ASSY, FUEL (YELLOW) | MODEL K3 E33 FOR YU1

49100-44AU0-YU1

Unavailable

6

TANK ASSY, FUEL (BLUE) | MODEL K3 E33 FOR N9J; Includes Item(s) 7 - 8

49100-44AU0-YC2

Unavailable

7

TAPE SET, FUEL TANK | MODEL K3 FOR YU1

68110-44AR0-KD2

Unavailable

7

TAPE SET, FUEL TANK | MODEL K3 FOR YC2

68110-44AR0-LH2

Unavailable

8

EMBLEM (BLACK) | MODEL K3 FOR YU1

68111-44A10-019

Unavailable

8

EMBLEM (WHITE) | MODEL K3 FOR YC2

68111-44A10-30H

Unavailable

9

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

$158.35

9

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

10

CUSHION

09329-10016

$3.10

11

CLAMP

09407-25402

$4.64

12

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

13

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

14

CLAMP

09407-30402

$4.11

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

CUSHION

09320-14013

$2.11

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

BOLT This part replaces 01570-06303.

01570-0630A

$3.03
