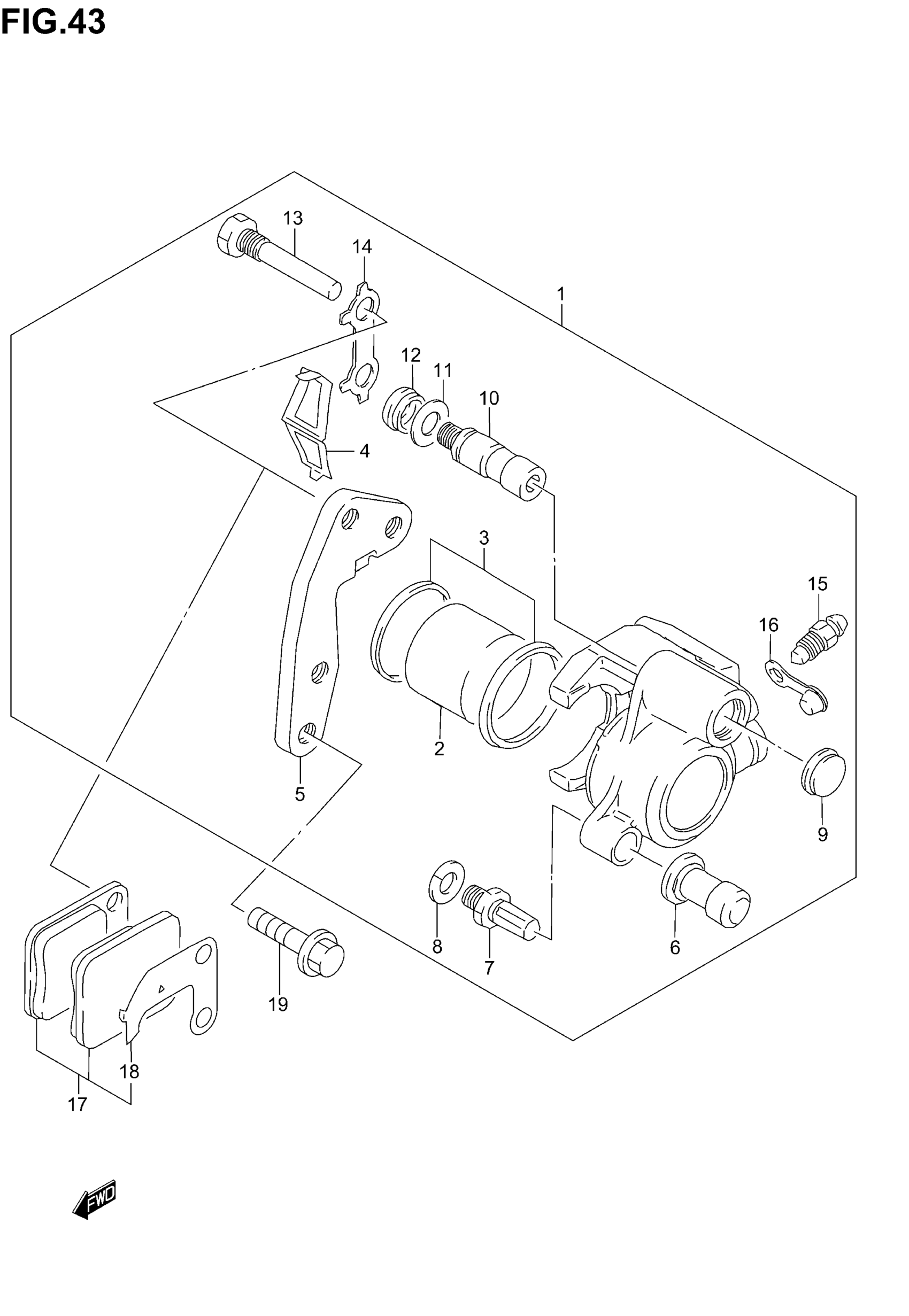

Suzuki DR200SE (2005) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 16

59300-42A10-999

$218.75

2

PISTON SET

59300-13810

$37.72

3

..SEAL SET,PISTON

69100-13820

$8.52

4

SPRING

59315-13A00

$11.02

5

BRACKET

59351-13A01

Unavailable

6

BOOT

59386-13A00

$7.95

7

BOLT

59382-13A00

$7.69

8

WASHER

59314-13A00

$2.02

9

DUST SEAL

59384-13A00

$5.24

10

PIN, SLIDE

59305-13A01

$20.03

11

SPRING

59306-13A00

$3.15

12

BOOT

59303-13A00

$5.80

13

PIN

59345-13A00

$6.98

14

WASHER

59346-13A00

$4.17

15

BLEEDER

59121-01A00

$8.73

16

CAP, BLEEDER

59122-01A00

$4.34

17

PAD & SHIM SET RH | Includes Item(s) 18 This part replaces 59300-42880.

59101-38810

$55.57

18

SHIM

59371-13A00

$9.37

19

BOLT (8X30)

09103-08269

$2.71
