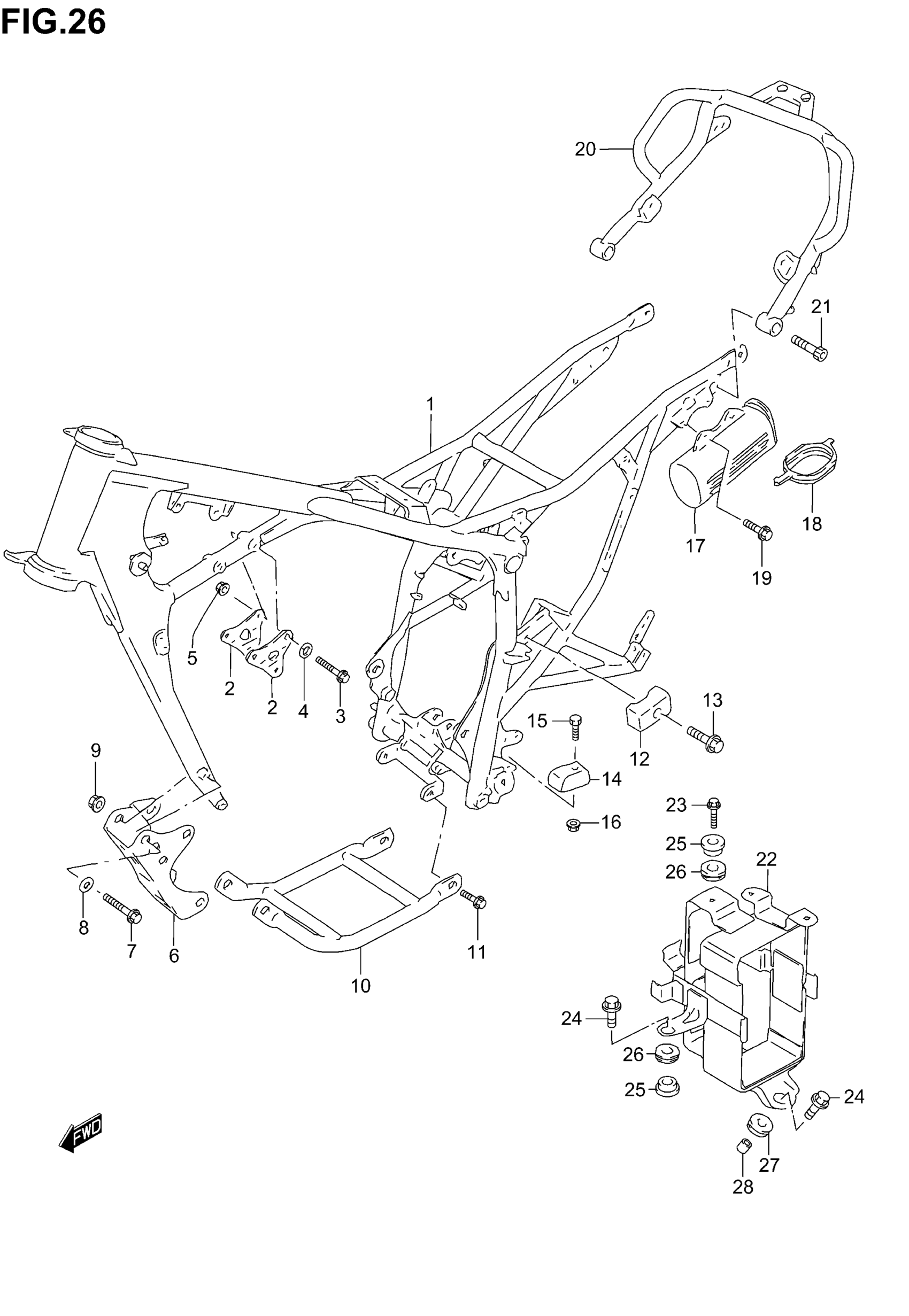

Suzuki DR200SE (2005) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 41100-44AB0-24K.

41100-44AB1-24K

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 41100-44AB0-17U.

41100-44AB1-17U

Unavailable

1

FRAME (GRAY) | MODEL K3/K4 This part replaces 41100-44AB0-YU8.

41100-44AB1-YU8

Unavailable

1

FRAME (GRAY) | MODEL K5

41100-44AB1-YU8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K1 E33 This part replaces 41100-44AD0-24K.

41100-44AD1-24K

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K2 E33 This part replaces 41100-44AD0-17U.

41100-44AD1-17U

Unavailable

1

FRAME (GRAY) | MODEL K3/K4 E33 This part replaces 41100-44AD0-YU8.

41100-44AD1-YU8

Unavailable

1

FRAME (GRAY) | MODEL K5 E33

41100-44AD1-YU8

Unavailable

2

PLATE, MOUNT, UPPER (BLACK)

41991-42A00-291

$15.42

3

BOLT (8X53)

09103-08332

$4.60

4

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

5

NUT This part replaces 08319-31083.

08319-3108A

$2.32

6

PLATE, MOUNT LOWER (CHARCOAL) | MODEL K1

41992-44AA1-24K

Unavailable

6

PLATE, MOUNT LOWER (GRAY) | MODEL K2

41992-44AA1-17U

Unavailable

6

PLATE, MOUNT LOWER (GRAY) | MODEL K3/K4/K5

41992-44AA1-YU8

Unavailable

7

BOLT (8X65)

09103-08328

Unavailable

8

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

9

NUT This part replaces 08319-31083.

08319-3108A

$2.32

10

PROTECTOR, ENGINE (CHARCOAL) | MODEL K1

42510-44AA0-24K

Unavailable

10

PROTECTOR, ENGINE (GRAY) | MODEL K2

42510-44AA0-17U

Unavailable

10

PROTECTOR,ENGIN | MODEL K3/K4/K5 This part replaces 42510-44AA0-YU8.

42510-44AA1-YU8

Unavailable

11

BOLT This part replaces 01551-10163.

01551-1016A

$3.85

12

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

13

BOLT This part replaces 01580-06353.

01580-0635B

$4.00

14

GUIDE, CHAIN LOWER

43912-42AA0

$29.33

15

BOLT This part replaces 09128-06006.

09128-06057

$1.65

16

NUT This part replaces 08319-31063.

08319-3106A

$2.03

17

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

18

CAP, TOOL HOLDER

41552-37210

$9.78

19

BOLT (6X16)

09116-06165

$3.03

20

GRIP, REAR (CHARCOAL) | MODEL K1

43980-44AB2-24K

Unavailable

20

GRIP, REAR (GRAY) | MODEL K2

43980-44AB2-17U

Unavailable

20

GRIP, REAR (GRAY) | MODEL K3/K4/K5

43980-44AB2-YU8

Unavailable

21

BOLT (8X30)

09106-08105

$3.78

22

HOLDER, BATTERY

41540-44AA0

Unavailable

23

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

24

BOLT, LOWER

09116-06131

$2.36

25

SPACER

09169-06065

$4.32

26

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

27

CUSHION

09320-10501

$6.23

28

SPACER, LOWER LH

09180-06285

$2.74
