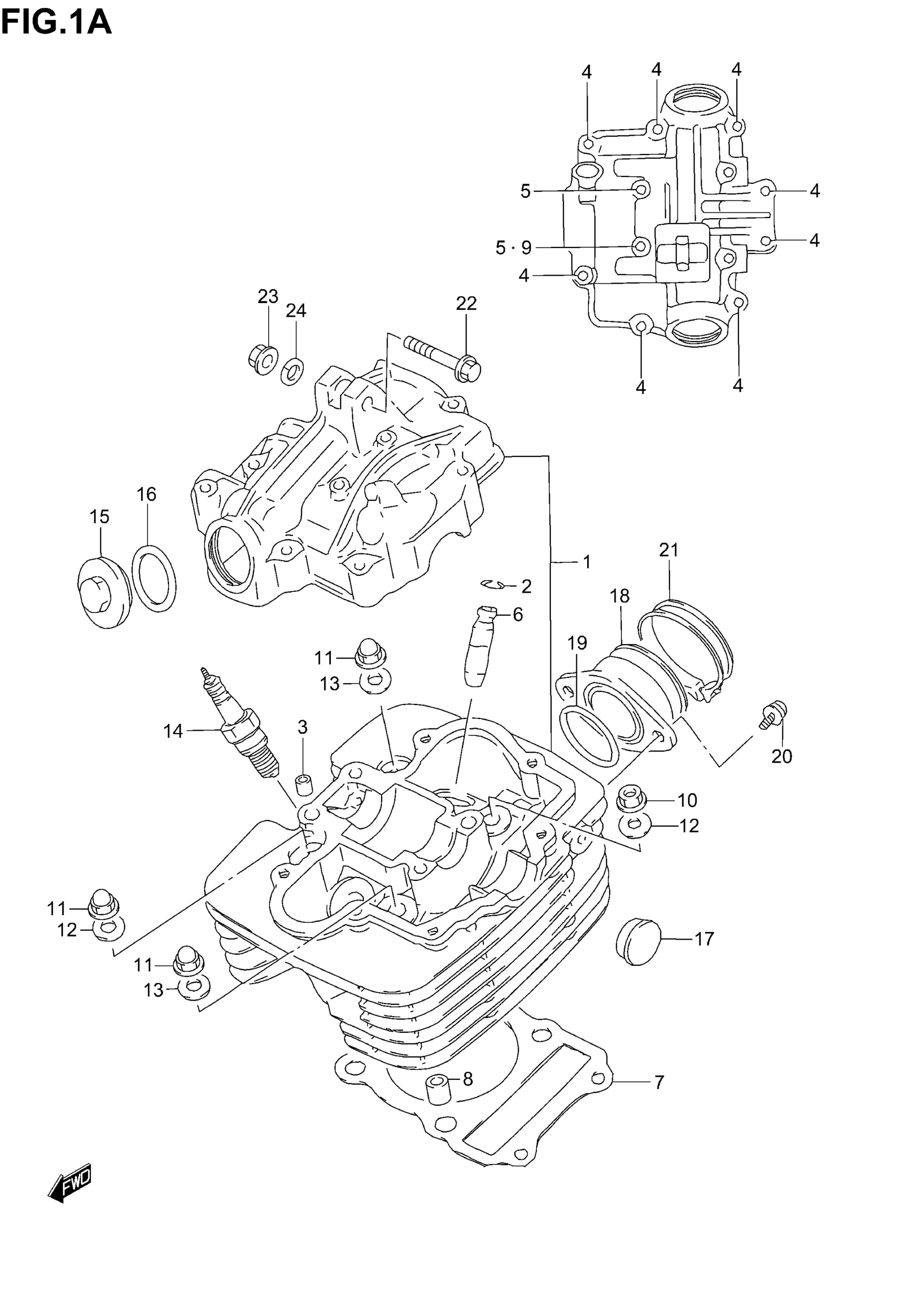

Suzuki DR200SE (2005) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL K1/K2/K3

11100-42A20

$881.75

1

HEAD ASSY, CYLINDER | MODEL K4/K5; Includes Item(s) 2 - 5

11100-42A50

Unavailable

2

.RING (10X85)

09381-10004

$1.50

3

PIN (8X11)

09206-08001

$1.78

4

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

5

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$32.10

7

GASKET, CYLINDER HEAD

11141-18A00

$14.20

8

KNOCK PIN

04211-11169

$1.78

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

NUT This part replaces 08316-10083.

08316-1008B

$2.66

11

NUT

09159-08049

$4.71

12

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

13

GASKET (8.5X17X2.3)

09168-08021

$2.61

14

SPARK PLUG (X24ESR-U)

09482-00223

$5.18

14

SPARK PLUG (DR8EA)

09482-00399

$3.32

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG

09241-22002

$5.24

18

PIPE,INTAKE This part replaces 13110-42A12.

13110-42A13

$27.75

19

O RING

09280-35001

$1.78

20

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

21

CLAMP

09402-48208

$4.64

22

BOLT (8X53)

09103-08332

$4.60

23

NUT This part replaces 08319-31083.

08319-3108A

$2.32

24

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84
