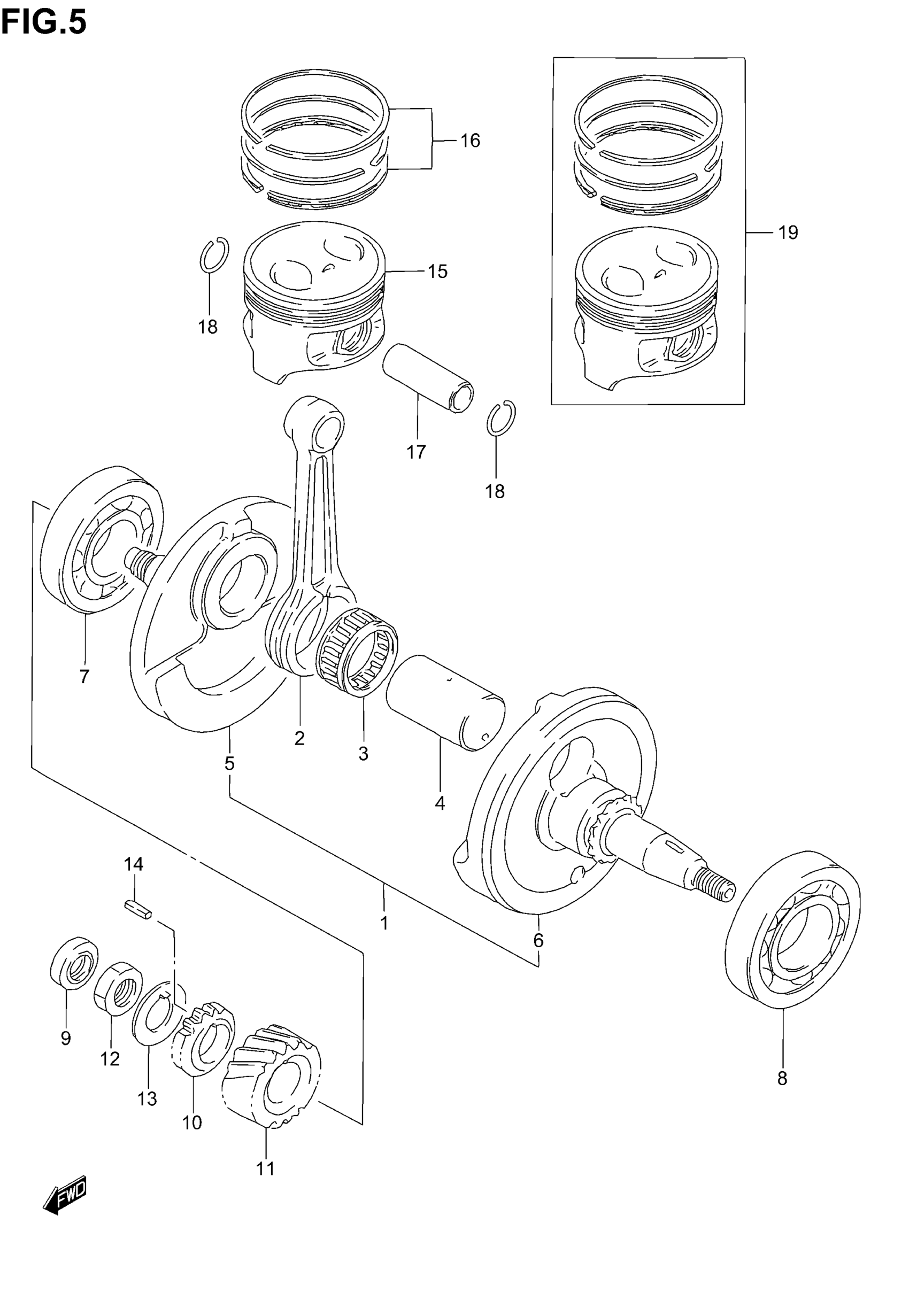

Suzuki DR200SE (2005) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL K1/K2/K3 This part replaces 12200-42A10.

12200-42A21

$677.85

1

CRANKSHAFT ASSY | MODEL K4 This part replaces 12200-42A20.

12200-42A21

$677.85

1

CRANKSHAFT ASSY | MODEL K5; Includes Item(s) 2 - 6

12200-42A21

$677.85

2

ROD, CONNECTING

12161-42A01

$70.08

3

BEARING

09263-31008-0B0

$53.83

4

PIN, CRANK | MODEL K1/K2/K3/K4 This part replaces 12210-42A00.

12210-42A01

$29.23

4

PIN, CRANK | MODEL K5

12210-42A01

$29.23

5

CRANKSHAFT, RH

12221-42A02

Unavailable

6

CRANKSHAFT, LH | MODEL K1/K2/K3 This part replaces 12261-42A10.

12261-42A20

Unavailable

6

CRANKSHAFT, LH | MODEL K4/K5

12261-42A20

Unavailable

7

BEARING (28X68X18)

09262-28014

$74.08

8

BEARING (35X72X17)

09262-35038

$42.19

9

OIL SEAL (12X21X7)

09282-12009

$16.75

10

GEAR, OIL PUMP DRIVE (NT:15)

16321-42A00

Unavailable

11

GEAR, PRIMARY DRIVE (NT:19)

21111-42A01

Unavailable

12

NUT

09140-18004

$2.95

13

WASHER

09166-18003

$2.58

14

KEY

09421-04007

$8.00

15

PISTON | MODEL K1/K2/K3 This part replaces 12111-42A03.

12111-42A20-0F0

$104.62

15

PISTON | MODEL K4/K5 This part replaces 12111-42A10-0F0.

12111-42A20-0F0

$104.62

16

RING SET, PISTON (STD) | MODEL K1/K2/K3

12140-19B10

$39.16

16

RING SET, PISTON (STD) | MODEL K4/K5 This part replaces 12140-42A00.

12140-42A01

$91.23

16

RING SET, PISTON (OS:0.5) | MODE K1/K2/K3 OPT

12140-19B10-050

$57.10

17

PIN, PISTON

12151-22A02

$11.12

18

SNAP RING

09381-16001

$1.45

19

PISTON SET,OS0. | MODEL K1/K2/K3 OPT This part replaces 12100-42A00-050.

12100-42A40-050

$126.25
