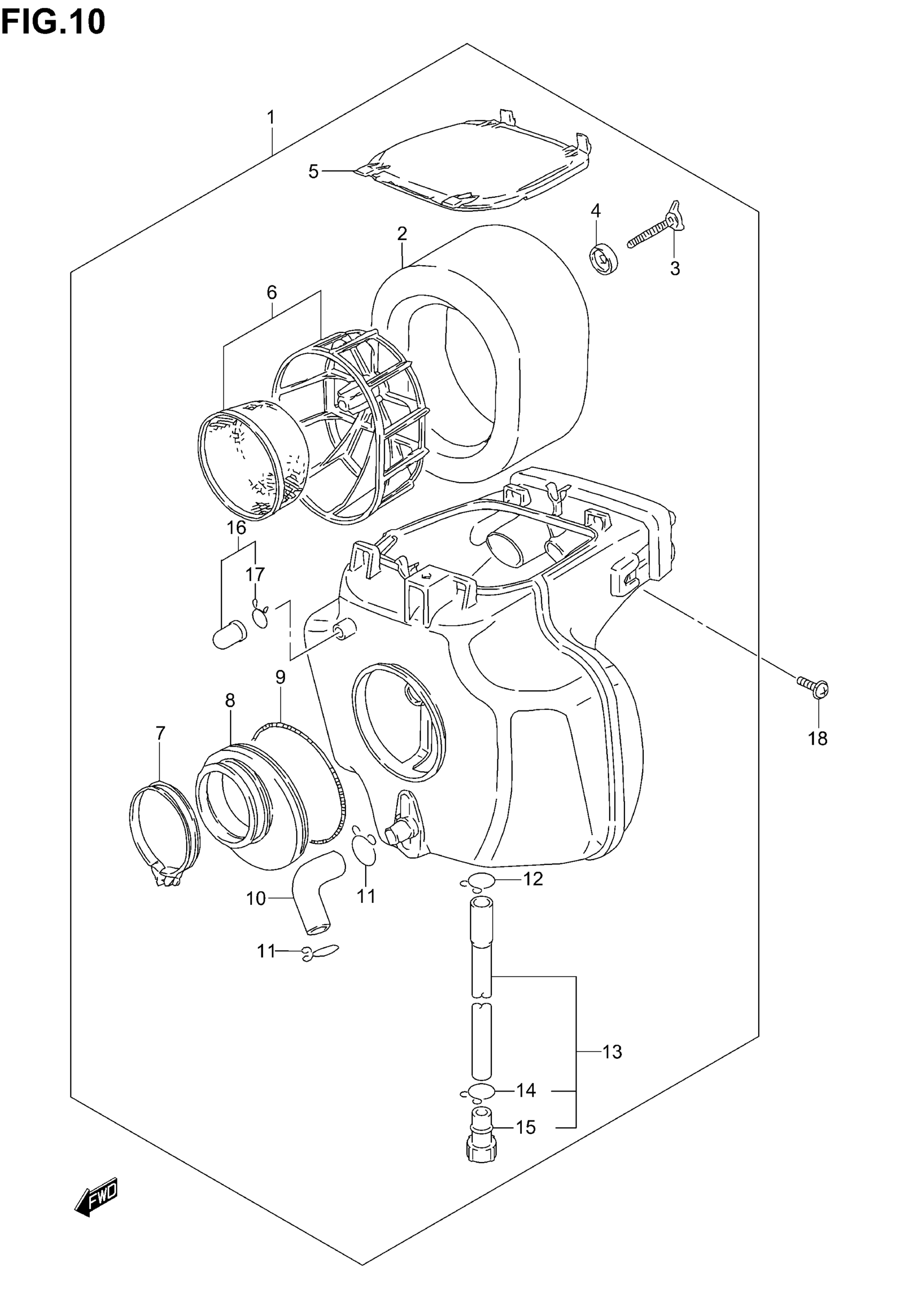

Suzuki DR200SE (2005) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 17 This part replaces 13700-42A01.

13700-42A02

$167.38

2

FILTER

13780-42A01

$34.38

3

BOLT, WING

13831-42A00

$5.07

4

WASHER

13796-16700

$2.89

5

CAP

13740-42A00

$24.99

6

HOLDER

13790-42A00

$84.50

7

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

8

TUBE,AIR CLEANE This part replaces 13881-42A00.

13881-42A01

$13.44

9

CLAMP, AIR CLEANER SIDE

13826-38300

$3.56

10

TUBE, BREATHER

13853-42A00

$10.17

11

CLIP

09401-14301

$2.35

12

CLIP

09401-13409

$2.12

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.51

14

CLIP

09401-13409

$2.12

15

STOPPER, DRAIN

13877-38A00

$5.98

16

PLUG,DRAIN This part replaces 13870-14F00.

13870-14F01

$6.55

17

CLIP

09401-16401

$3.14

18

SCREW This part replaces 02112-36163.

02112-3616A

$1.97
