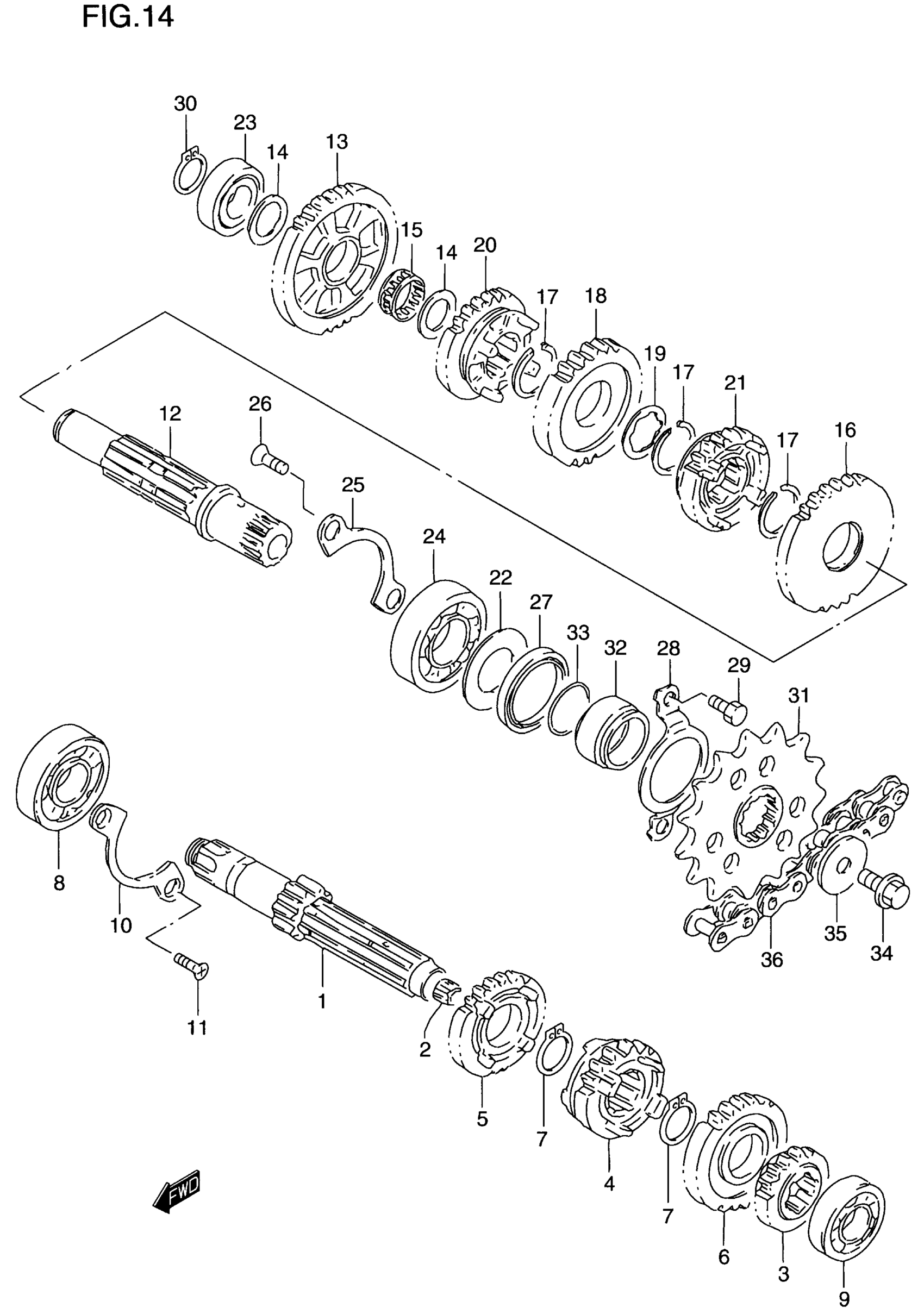

Suzuki DR200SE (2000) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) | MODEL T/V This part replaces 24120-42A00.

24120-42A01

Unavailable

1

SHAFT, COUNTER (NT:11) | MODEL W/X/Y; Includes Item(s) 2

24120-42A01

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:15)

24221-42A02

Unavailable

4

GEAR, 3RD DRIVE (NT:16) | MODEL T/V This part replaces 24231-42A02.

24231-42A03

Unavailable

4

GEAR, 3RD DRIVE (NT:16) | MODEL W/X/Y

24231-42A03

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24241-42A00

Unavailable

6

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-42A03.

24251-42A10

Unavailable

7

CIRCLIP

09380-20009

$2.20

8

BEARING (20X47X14)

09262-20069

$23.28

9

BEARING

08123-60027

$23.62

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

11

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

12

SHAFT, DRIVE

24130-42A20

$169.98

13

GEAR, 1ST DRIVEN (NT:33)

24311-42A00

$115.77

14

WASHER (17X26X1) | MODEL T This part replaces 08211-17261.

09181-17167

$2.96

14

THRUST WASHER (17X26X1.0) | MODEL V/W/X/Y

09181-17167

$2.96

15

BEARING (17X21X9.8)

09263-17004

$12.03

16

GEAR, 2ND DRIVEN (NT:29) | MODEL T/V This part replaces 24320-42A02.

24320-42A03

$96.22

16

GEAR, 2ND DRIVEN (NT:29) | MODEL W/X/Y

24320-42A03

$96.22

17

CIRCLIP

09380-22006

$3.10

18

GEAR, 3RD DRIVEN (NT:23) | MODEL T/V This part replaces 24331-42A01.

24331-42A02

Unavailable

18

GEAR, 3RD DRIVEN (NT:23) | MODEL W/X/Y

24331-42A02

Unavailable

19

LOCK WASHER

09167-22011

$3.23

20

GEAR, 4TH DRIVEN (NT:23) | MODEL T/V This part replaces 24341-42A01.

24341-42A02

Unavailable

20

GEAR, 4TH DRIVEN (NT:23) | MODEL W/X/Y

24341-42A02

Unavailable

21

GEAR, 5TH DRIVEN (NT:21)

24351-42A02

Unavailable

22

WASHER, OIL SEALING

24359-42A00

$4.35

23

BEARING (17X36X12)

09264-17001

$43.02

24

BEARING (22X50X14)

09262-22018

$25.60

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

27

OIL SEAL (30X40X6)

09283-30053

$9.24

28

RETAINER, DRIVE SHAFT OIL SEA This part replaces 24751-42A01.

24751-42A10

$4.52

29

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

30

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

31

SPROCKET, ENGINE (NT:15)

27510-42A10

$49.40

32

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

33

O RING (D:2.5,ID:21)

09280-21008

$1.91

34

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

35

WASHER

08211-08283

$2.81

36

CHAIN ASSY, DRIVE (DID520VC5) | L:112 This part replaces 27600-14A10-112.

27600-14A20-112

$237.67
