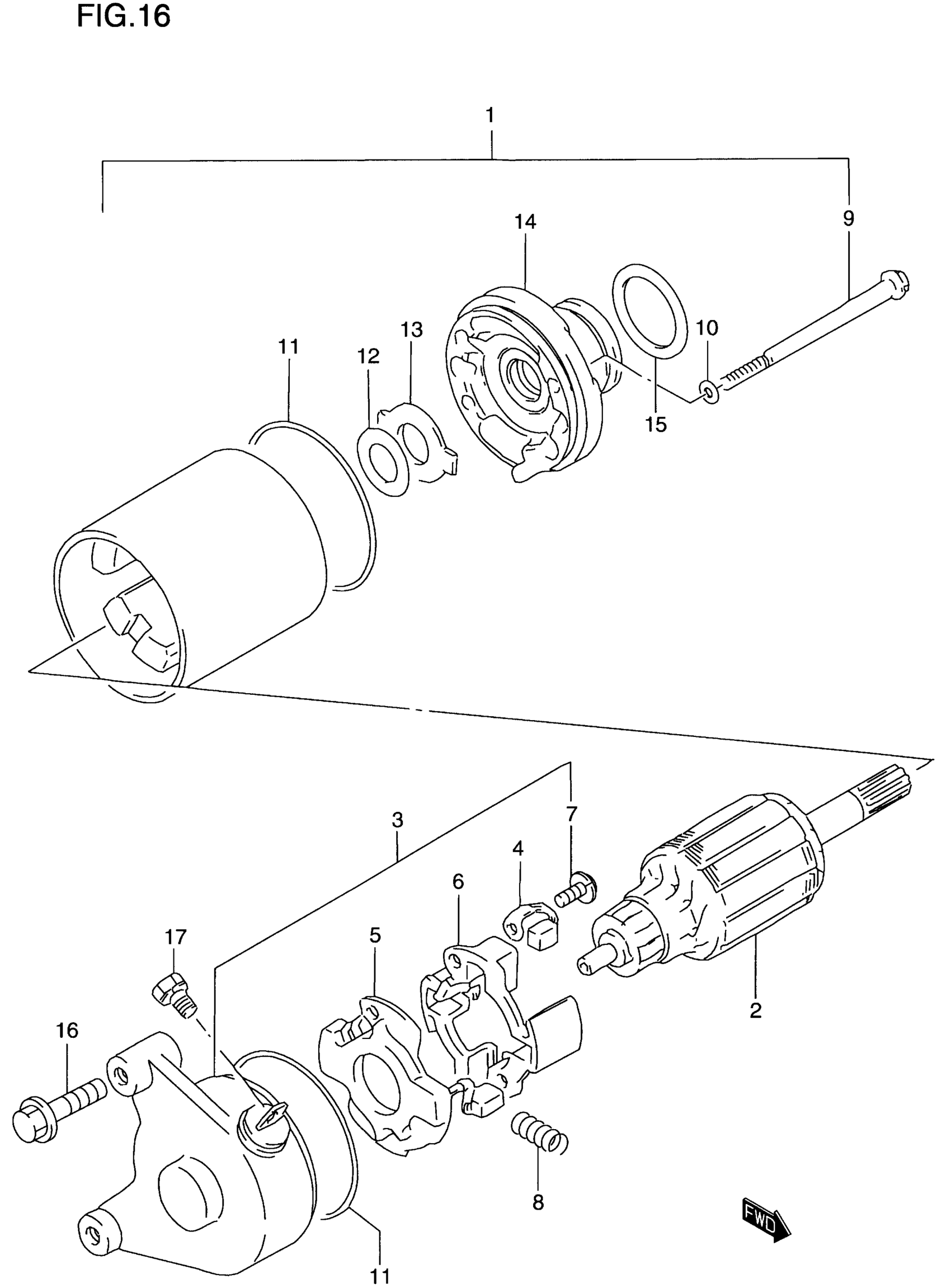

Suzuki DR200SE (2000) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 15 This part replaces 31100-42A01.

31100-42A20

$679.68

2

ARMATURE

31310-11D00

Unavailable

3

FRAME ASSY, COMMUTATOR END

31175-42A01

Unavailable

4

BRUSH

31132-32C10

$21.77

5

BRUSH SUB ASSY, STARTER

31130-32C20

Unavailable

6

HOLDER, BRUSH

31133-32C10

Unavailable

7

SCREW This part replaces 02112-34123.

02112-3412B

$2.30

8

SPRING

31135-32C10

Unavailable

9

BOLT

31281-32C10

Unavailable

10

O RING

31156-38300

$4.52

11

O RING

31264-32C10

$14.20

12

SHIM, NO.3

31361-38300

Unavailable

13

PLATE, LOCK

31361-32C10

Unavailable

14

BRACKET

31150-42A01

Unavailable

15

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

16

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

17

SCREW (5X8)

09137-05004

$2.17
