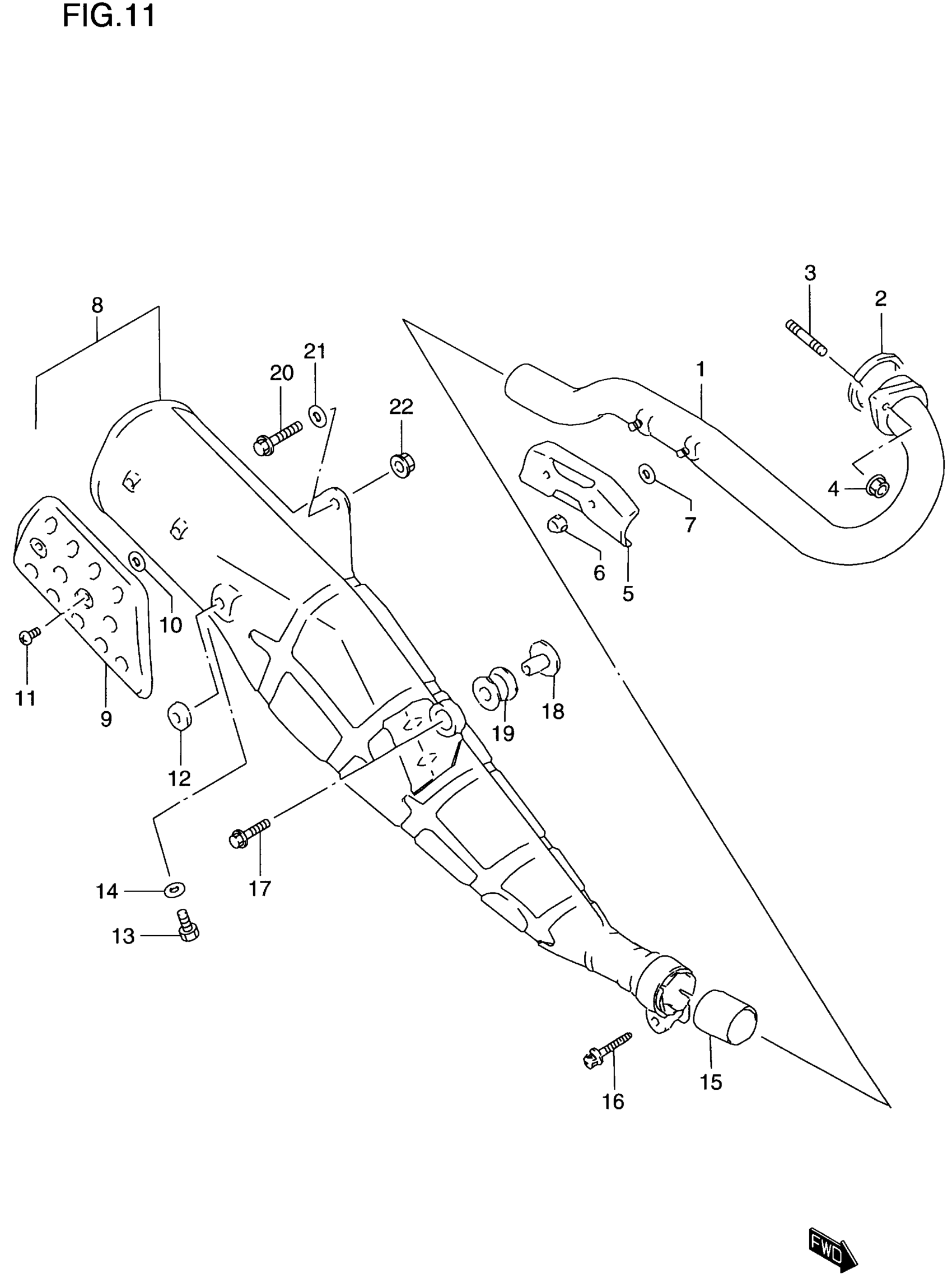

Suzuki DR200SE (2000) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-42A20.

14150-42A22

$331.25

2

GASKET, EXHAUST PIPE

14181-42A00

$10.93

3

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

4

NUT

08319-31087

$2.32

5

COVER, EXHAUST PIPE

14186-42A20

Unavailable

6

NUT This part replaces 09159-06035.

09159-06038

$5.60

7

GASKET (6X16X1.4)

09168-06122

$2.73

8

MUFFLER ASSY | Includes Item(s) 9 - 14 This part replaces 14301-42A60-H01.

14301-42A61-H01

$491.85

9

COVER, MUFFLER

14781-42A20

$28.18

10

GASKET (5.8X13X1.4)

09168-06120

$2.92

11

SCREW (6X10)

09139-06076

$2.42

12

CUSHION

09321-10007

$2.71

13

PLUG, DRAIN

09247-12103

$2.84

14

GASKET

09168-12002

$1.59

15

GASKET, 2ND MUFFLER

14773-14202

$23.17

16

BOLT This part replaces 07120-08353.

07120-0835B

$4.58

17

BOLT (8X35)

09118-08080

$3.03

18

SPACER (8.6X12X17.5)

09180-08151

$5.18

19

CUSHION

09320-12033

$31.71

20

BOLT (8X35) This part replaces 09103-08287.

09103-08357

$4.17

21

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

22

NUT This part replaces 08361-25083.

08361-2508A

$1.97
