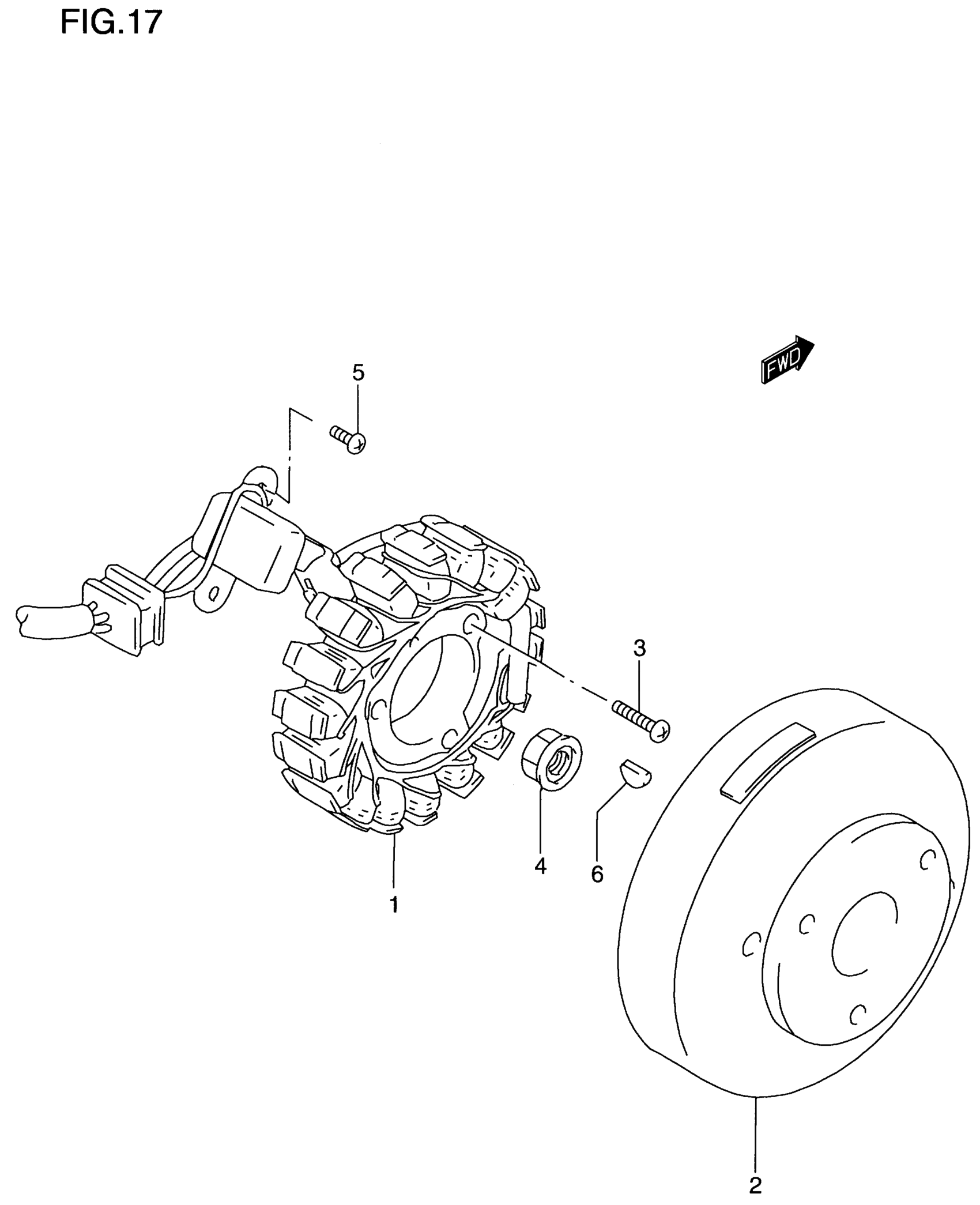

Suzuki DR200SE (2000) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-42A30.

32101-42A40

$590.90

2

ROTOR ASSY

32102-42A30

Unavailable

3

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.49

4

NUT This part replaces 08316-10103.

08316-1010B

$2.66

5

SCREW This part replaces 02112-05123.

02112-0512A

$1.49

6

KEY

09420-03008

$3.16
