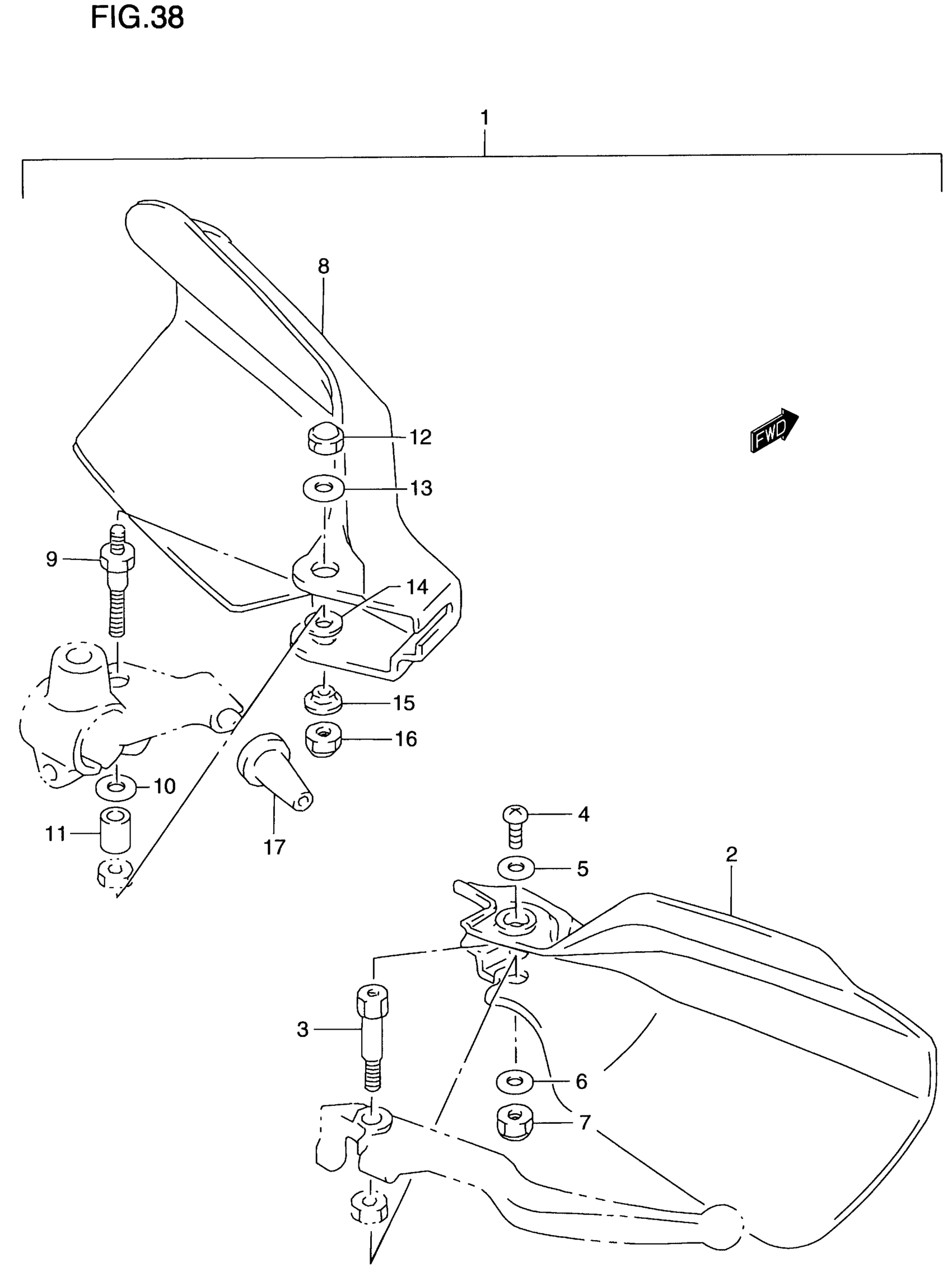

Suzuki DR200SE (2000) KNUCKLE COVER (OPTION) Diagram

#

Description
Price

1

COVER SET, KNUCKLE (PURPLE) | MODEL T/V/W

57300-05810-Z16

Unavailable

1

COVER SET, KNUCKLE (WHITE) | MODEL X/Y; Includes Item(s) 2 - 16

57300-05810-30H

Unavailable

2

COVER, KNUCKLE RH (PURPLE) | MODEL T/V/W

57341-05D00-Z16

$47.07

2

COVER,KNUCKLE RH (WHITE) | MODEL X/Y This part replaces 57341-05D00-30H.

57341-05D10-30H

$45.37

3

BOLT

57431-05D00

$13.20

4

SCREW

02142-05107

$1.49

5

WASHER (5.5X16X1.2) | MODEL T/V This part replaces 09160-05017.

09160-05043

$2.30

5

WASHER (5.5X16X1.2) | MODEL W/X/Y

09160-05043

$2.30

6

.WASHER (6.5X16X1.6) | MODEL T/V This part replaces 09160-06042.

09160-06130

$1.91

6

.WASHER (6.5X16X1.6) | MODEL W/X/Y

09160-06130

$1.91

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

COVER,KNUCKLE,L | MODEL T/V/W This part replaces 57541-31D00-Z16.

57541-31D30-Z16

Unavailable

8

COVER,KNUCKLE LH (WHITE) | MODEL X/Y This part replaces 57541-31D00-30H.

57541-31D20-30H

$45.37

9

BOLT | MODEL T/V This part replaces 57531-44B00.

57531-44B01

$7.51

9

BOLT | MODEL W/X/Y

57531-44B01

$7.51

10

WASHER

57533-44B00

Unavailable

11

SPACER

57532-44B00

$4.10

12

NUT

08313-10067

$1.84

13

WASHER (6.5X20X1.6)

09160-06066

$1.89

14

WASHER (6.5X16X1.2)

09160-06019

$1.49

15

WASHER

09169-06055

$2.27

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22
