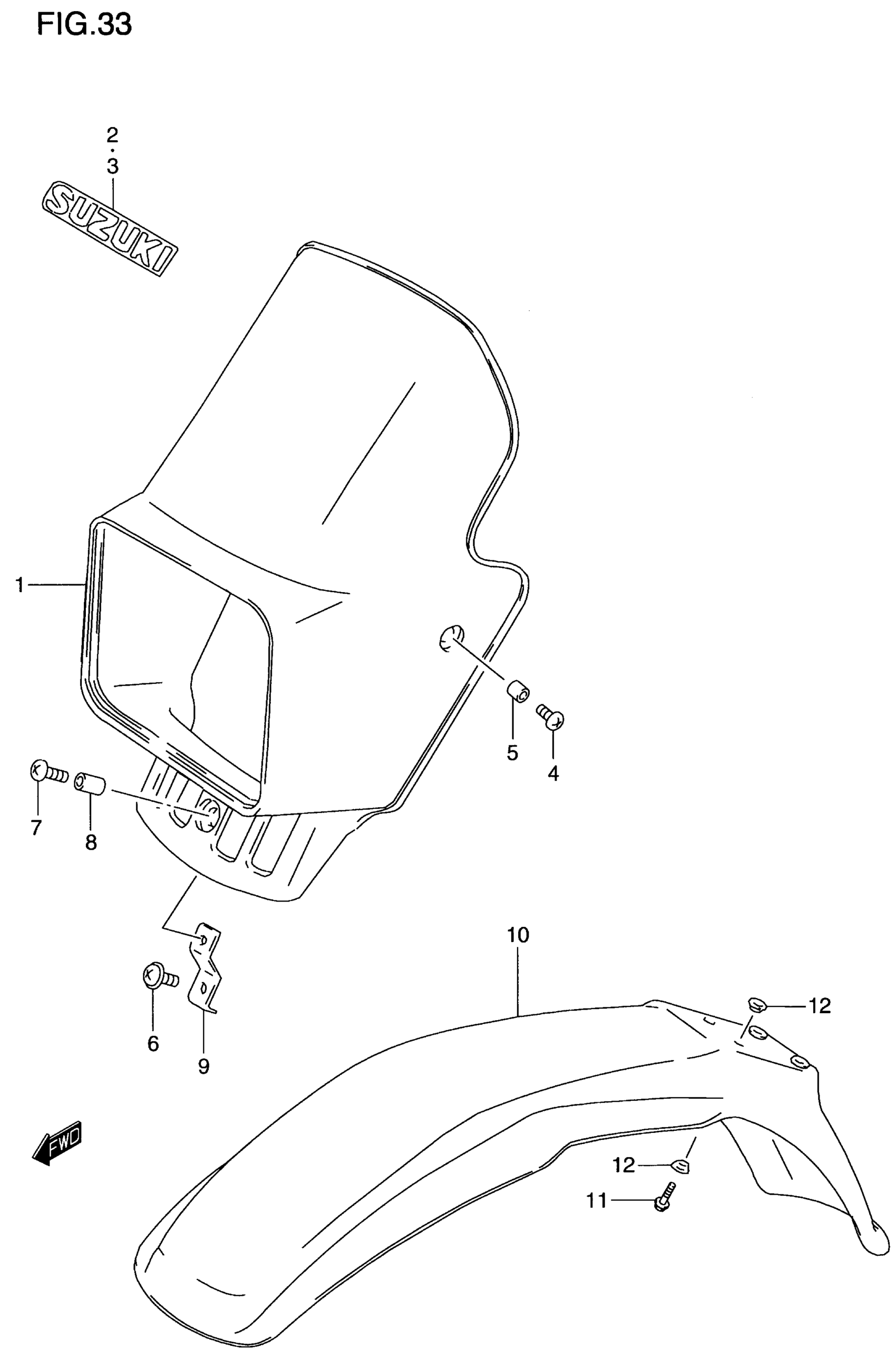

Suzuki DR200SE (2000) HEADLAMP COVER Diagram

#

Description
Price

1

COVER, HEADLAMP (WHITE) This part replaces 51811-14A20-30H.

51811-14A30-30H

$102.02

2

EMBLEM, SUZUKI | MODEL T/V

68174-35B00-E9G

Unavailable

3

EMBLEM, SUZUKI | MODEL W

68171-44B00-F6F

Unavailable

3

EMBLEM, SUZUKI | MODEL X

68171-44B00-L5D

Unavailable

3

EMBLEM, SUZUKI | MODEL Y

68171-44B00-8YM

$12.48

4

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

5

SPACER (6.1X8X3.5) | MODEL T This part replaces 09180-06098.

09180-06245

$2.11

5

SPACER (6.1X8X3.5) | MODEL V/W/X/Y

09180-06245

$2.11

6

SCREW

02112-36127

$3.15

7

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

8

SPACER (6.1X8X12) | MODEL T This part replaces 09180-06035.

09180-06249

$2.10

8

SPACER (6.1X8X12) | MODEL V/W/X/Y

09180-06249

$2.10

9

BRACE, COVER LOWER

51814-44A00

$5.50

10

FENDER, FRONT (WHITE) This part replaces 53111-44A00-30H.

53111-44A20-30H

$145.00

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49
