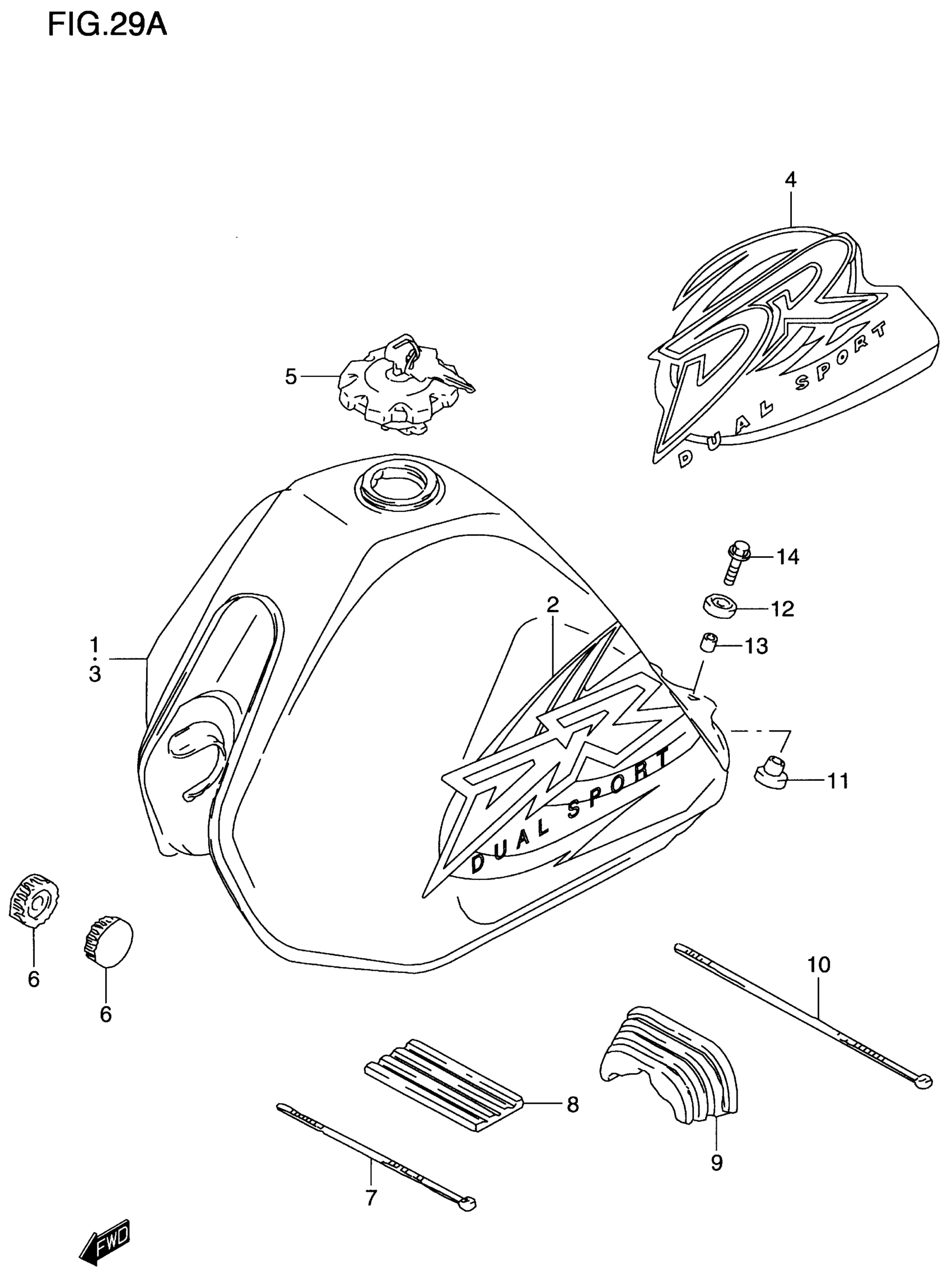

Suzuki DR200SE (2000) FUEL TANK (MODEL X/Y) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 49100-44AC0-30H.

49100-44AC1-30H

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X E33; Includes Item(s) 2 This part replaces 49100-44AD0-30H.

49100-44AD1-30H

Unavailable

2

TAPE SET, FUEL TANK | MODEL X

68110-44AL0-Y8P

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 49100-44AM0-YC2.

49100-44AM1-YC2

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL Y E33; Includes Item(s) 4 This part replaces 49100-44AN0-YC2.

49100-44AN1-YC2

Unavailable

4

TAPE SET, FUEL TANK | MODEL Y

68110-44AP0-AZ3

Unavailable

5

CAP SET,FUEL TA This part replaces 44200-12851.

44200-12852

$158.35

5

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

$74.48

6

CUSHION

09329-10016

$3.10

7

CLAMP

09407-25402

$4.64

8

CUSHION, FUEL TANK UPPER

44541-14500

$8.28

9

CUSHION, FUEL TANK REAR

44542-14A00

$15.42

10

CLAMP

09407-30402

$4.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

CUSHION

09320-14013

$2.11

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

BOLT This part replaces 01570-06303.

01570-0630A

$3.03
