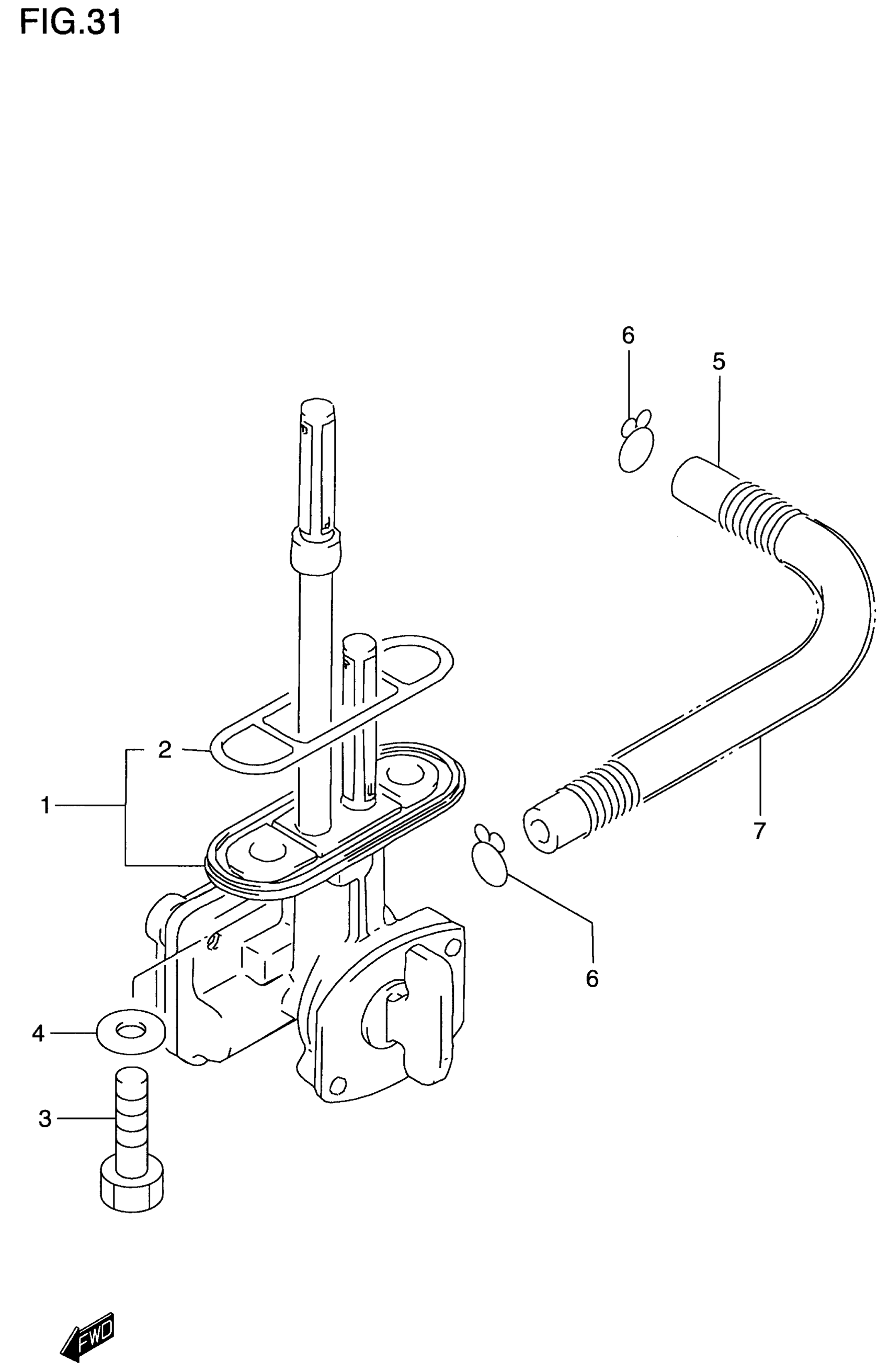

Suzuki DR200SE (2000) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-44AB0.

44300-44AB1

$102.73

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.35

3

SCREW (6X20)

09128-06057

$1.65

4

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

HOSE,5X10X600 | E33 This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

CLIP

09401-08401

$1.54

7

SPRING | E33

09440-10009

$5.47
