Description

Price

1

HUB, FRONT WHEEL (SILVER)

54111-44A10

Unavailable

2

SPACER (12.5X19X60.50)

09180-12146

$13.61

3

BEARING This part replaces 08113-62017.

08113-6201B

$10.15

4

BEARING, LH

08133-62017

$18.47

5

AXLE, FRONT

54711-44A01

$37.83

6

SPACER, FR AXLE

54740-02B40

$15.68

7

BOX ASSY,SPEEDO This part replaces 54600-01A00.

54600-01A01

$78.92

8

DISC, FRONT BRAKE

59221-13A01

$319.20

9

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

10

WASHER This part replaces 08322-01123.

08322-0112B

$2.62

11

NUT

09141-12004

$4.77

12

PIN This part replaces 04111-30308.

04111-3030A

$1.49

13

TIRE,FR(70/100- This part replaces 55110-42AA0.

55110-42AA1

$114.08

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, WHEEL INNER TUBE | MODEL T/V/W/X

55261-14540

$3.83

15

PROTECTOR WHL INR TUBE | MODEL Y This part replaces 55261-32E00.

55261-32E01

$5.64

16

RIM, FRONT WHEEL (21X1.60)

55311-42AA0

$435.25

17

SPOKE SET, FRONT WHEEL

55320-42A00

$64.68

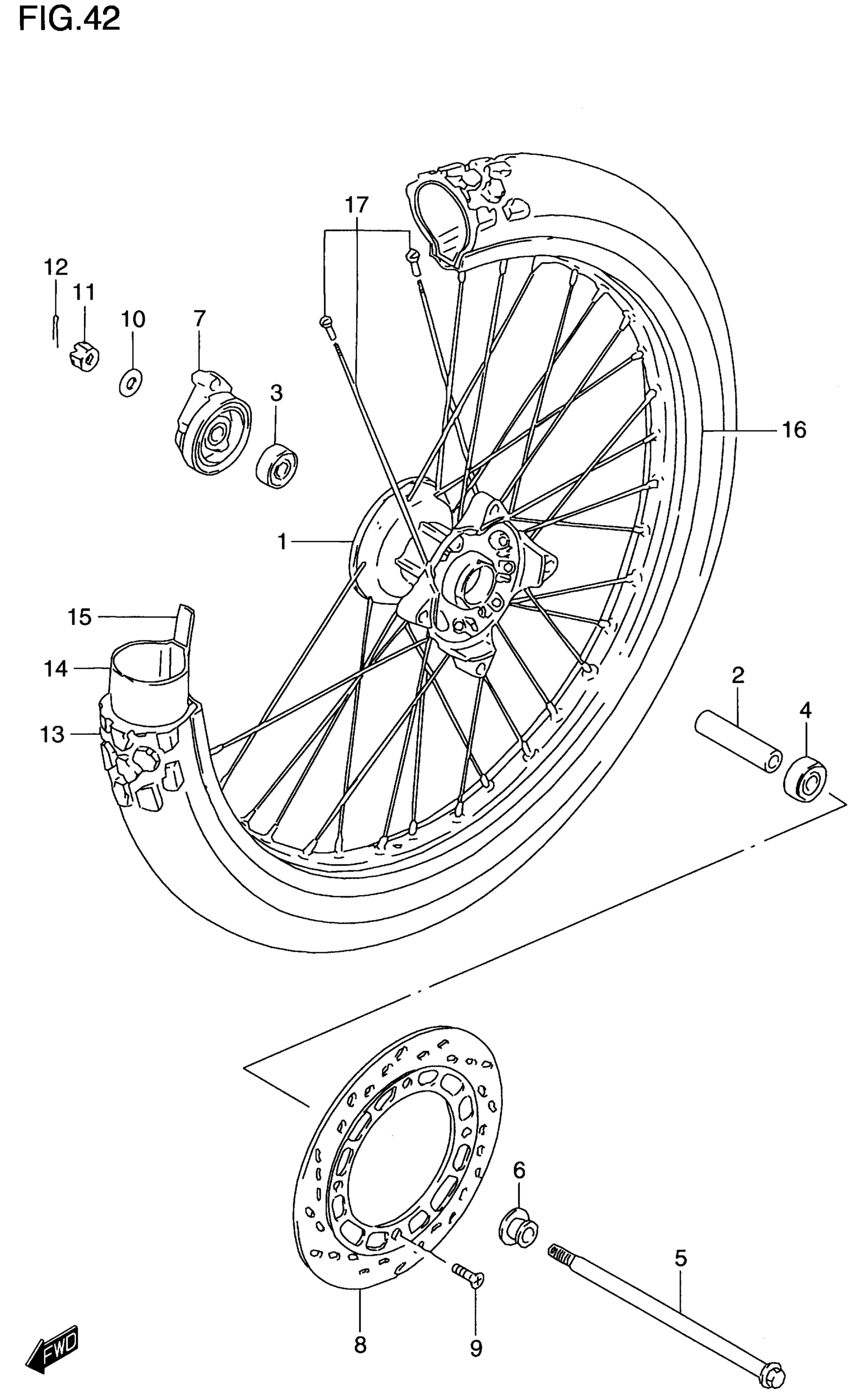

Suzuki DR200SE (2000) FRONT WHEEL Diagram
