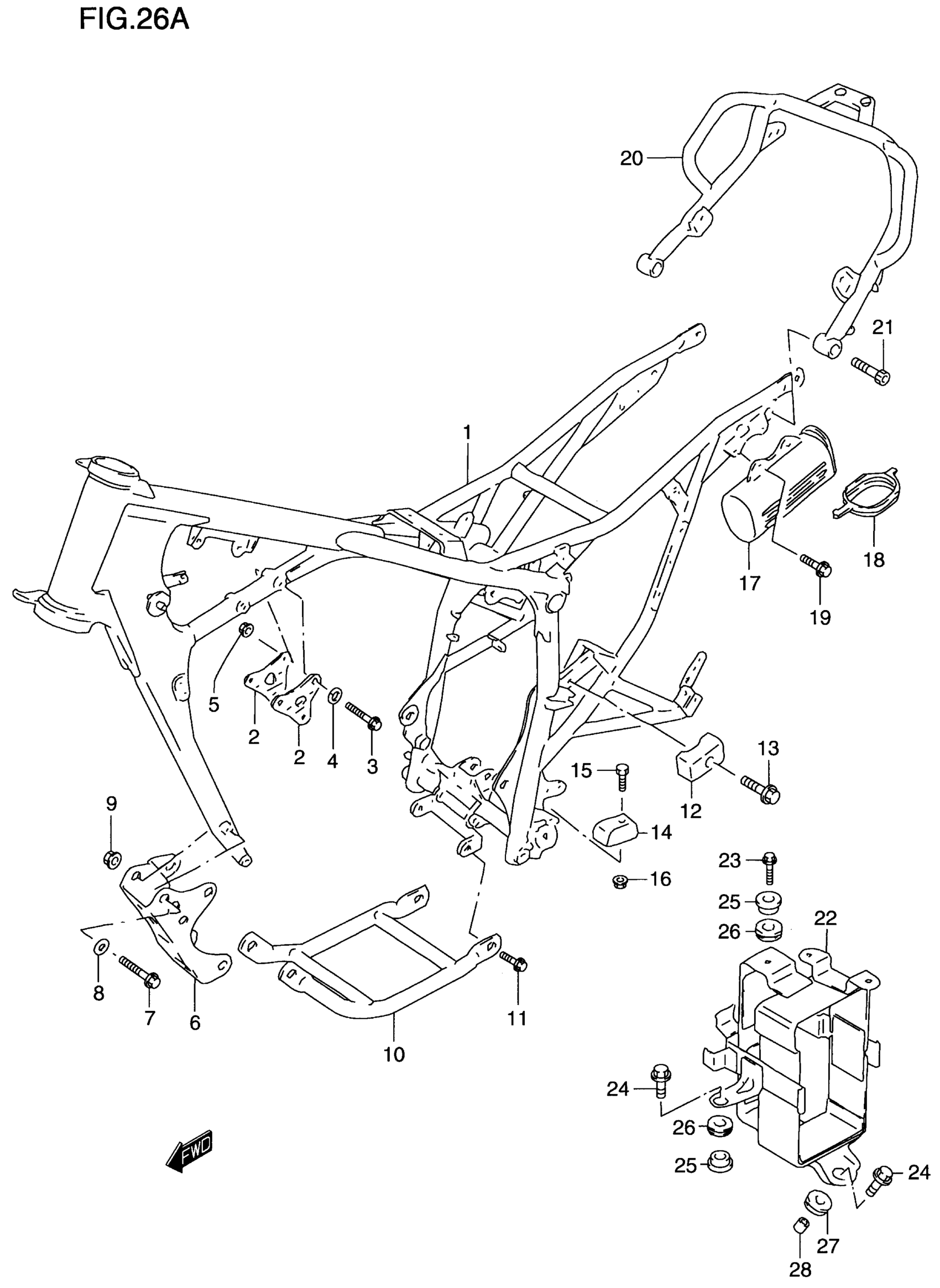

Suzuki DR200SE (2000) FRAME (MODEL X/Y) Diagram

NO DESCRIPTION AVAILABLE This part replaces 41100-44AB0-24K.

41100-44AB1-24K

Unavailable

NO DESCRIPTION AVAILABLE | E33 This part replaces 41100-44AD0-24K.

41100-44AD1-24K

Unavailable

PLATE, ENGINE MOUNT, UPPER (BLACK)

41991-42A00-291

$15.42

BOLT (8X53)

09103-08332

$4.60

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

NUT This part replaces 08319-31083.

08319-3108A

$2.32

PLATE, MOUNT LOWER (CHARCOAL)

41992-44AA1-24K

Unavailable

BOLT (8X65)

09103-08328

Unavailable

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

NUT This part replaces 08319-31083.

08319-3108A

$2.32

PROTECTOR, ENGINE (CHARCOAL)

42510-44AA0-24K

Unavailable

PLUG, OIL GALLERY | MODEL X This part replaces 01550-10163.

01550-1016A

$3.10

BOLT | MODEL Y This part replaces 01551-10163.

01551-1016A

$3.85

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$15.78

BOLT This part replaces 01580-06353.

01580-0635B

$4.00

GUIDE, CHAIN LOWER

43912-42AA0

$29.33

BOLT, GEAR SHIFT LINK | MODEL X This part replaces 01500-06203.

01500-0620A

$1.78

BOLT | MODEL Y

09128-06057

$1.65

NUT This part replaces 08319-31063.

08319-3106A

$2.03

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$41.63

CAP, TOOL HOLDER

41552-37210

$9.78

BOLT, CENTER | MODEL X This part replaces 09116-06144.

09116-06165

$3.03

BOLT (6X16) | MODEL Y

09116-06165

$3.03

GRIP, REAR (WHITE)

43980-44AB2-1TS

Unavailable

BOLT (8X30)

09106-08105

$3.78

HOLDER, BATTERY

41540-44AA0

Unavailable

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

BOLT, LOWER | MODEL X

09116-06047

Unavailable

BOLT, LOWER | MODEL Y

09116-06131

$2.36

SPACER

09169-06065

$4.32

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

CUSHION

09320-10501

$6.23

SPACER, LOWER LH

09180-06285

$2.74
