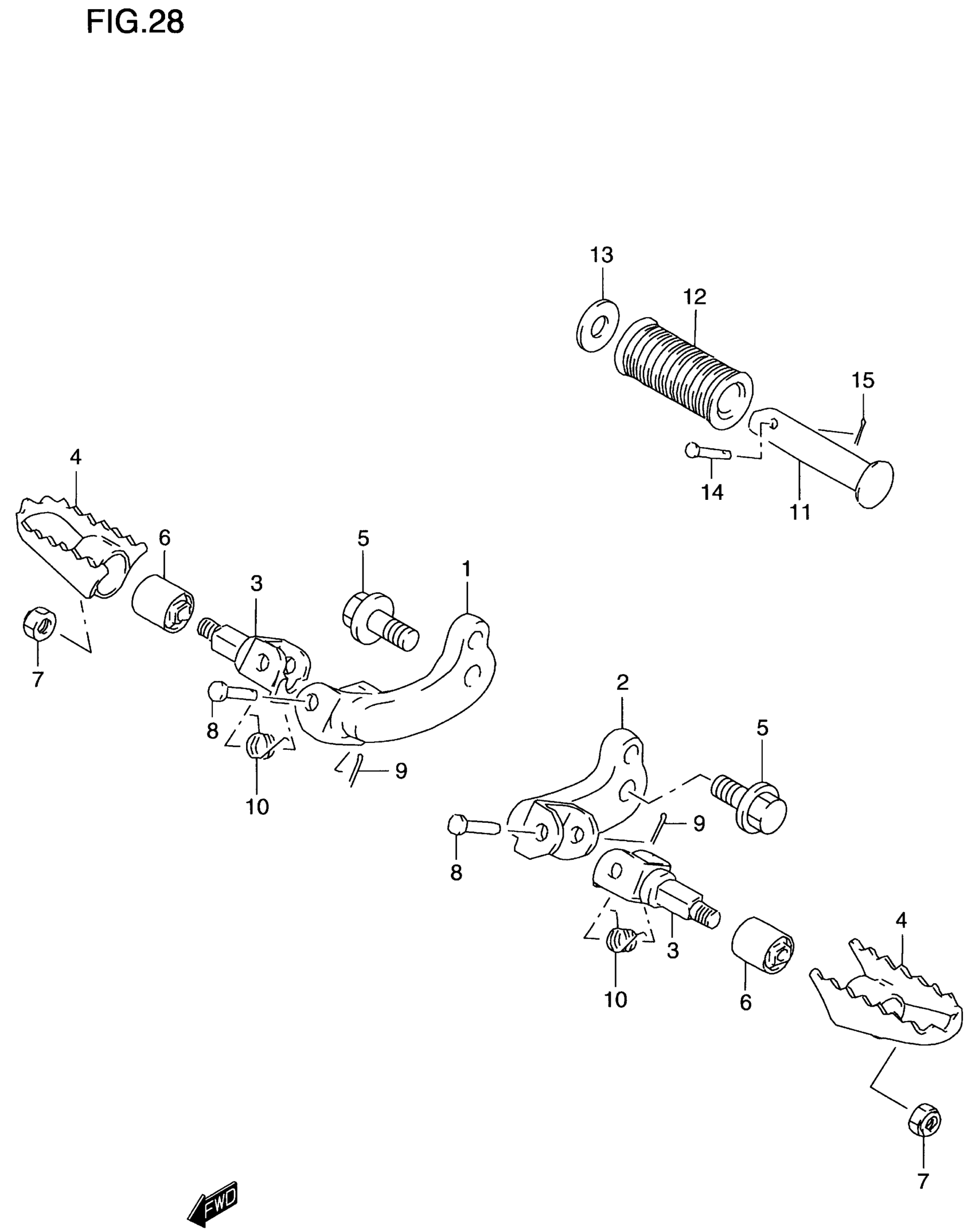

Suzuki DR200SE (2000) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH (BLACK)

43510-44A03-019

Unavailable

2

BAR, FRONT FOOTREST LH (BLACK)

43520-44A03-019

Unavailable

3

BRACKET, FRONT FOOTREST

43530-44A02

$51.32

4

FOOTREST, FRONT (BLACK)

43550-44A01-019

$37.53

5

BOLT (12X25)

09103-12047

$6.05

6

BUSH

09319-10053

$38.40

7

NUT This part replaces 08319-31103.

08319-3110A

$2.73

8

PIN

09200-08002

$2.05

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

SPRING

09448-14037

$3.16

11

BAR, FOOTREST RUBBER

43610-03001

$6.52

12

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

13

WASHER | MODEL T/V This part replaces 09160-19006.

09160-19024

$2.65

13

WASHER (19.5X32X2) | MODEL W/X/Y

09160-19024

$2.65

14

PIN

09200-06033

$2.63

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
