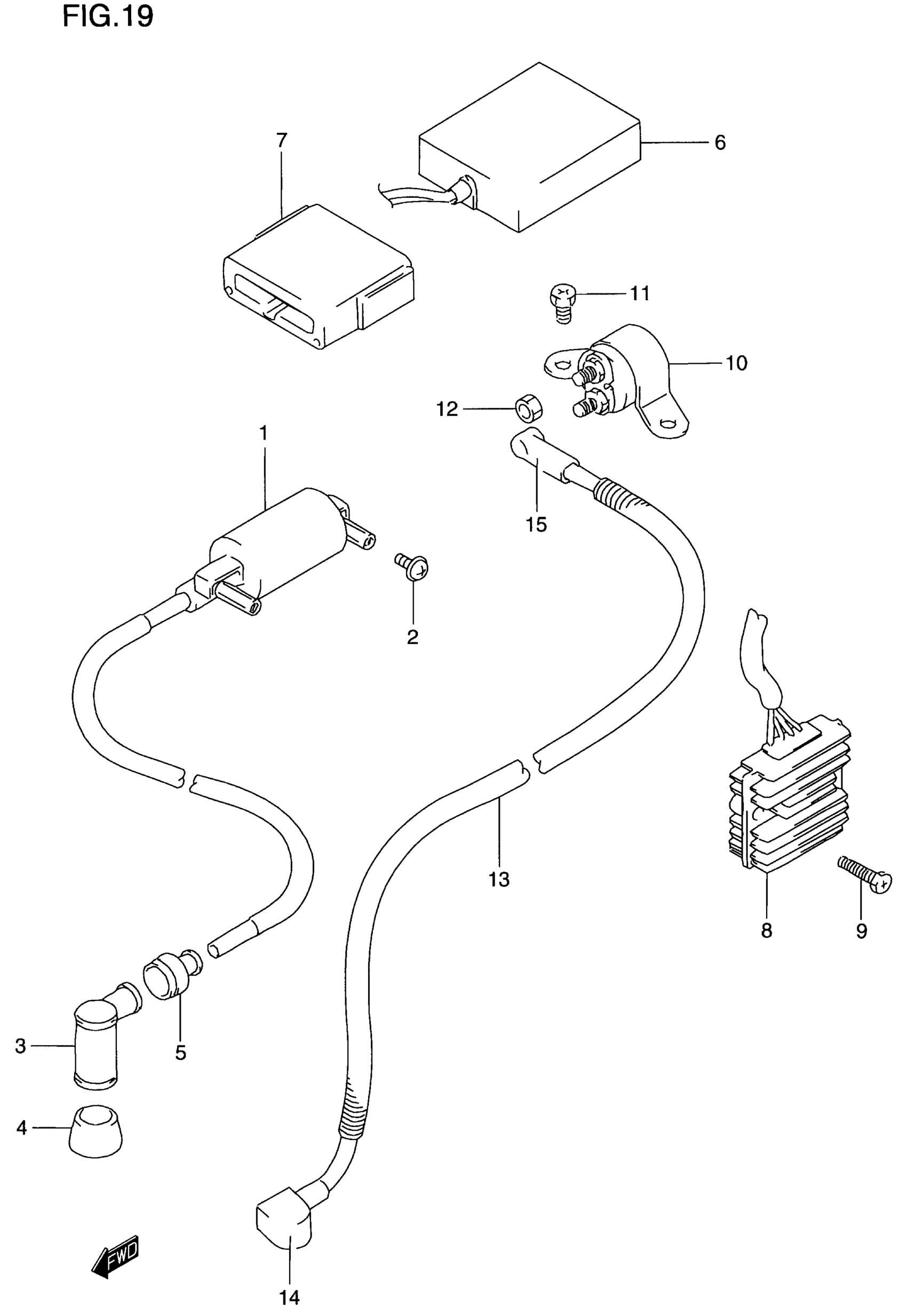

Suzuki DR200SE (2000) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-05350

$137.02

2

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

4

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

6

CDI UNIT

32900-42A30

$736.72

7

CUSHION, CDI UNIT

32980-44A00

Unavailable

8

RECTIFIER

32800-08D10

$236.72

9

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

10

RELAY ASSY, STARTING MOTOR

31800-15501

$97.79

11

SCREW (6X10) | MODEL T/V/W/X This part replaces 09128-06004.

09128-06044

$1.49

11

SCREW (6X10) | MODEL Y

09128-06044

$1.49

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

WIRE, STARTER MOTOR LEAD | Includes Item(s) 14

33810-44A00

$66.00

14

CAP, STARTER MOTOR TERMINAL

31861-06C00

Unavailable

15

CAP, STARTER RELAY

31861-10D00

Unavailable
