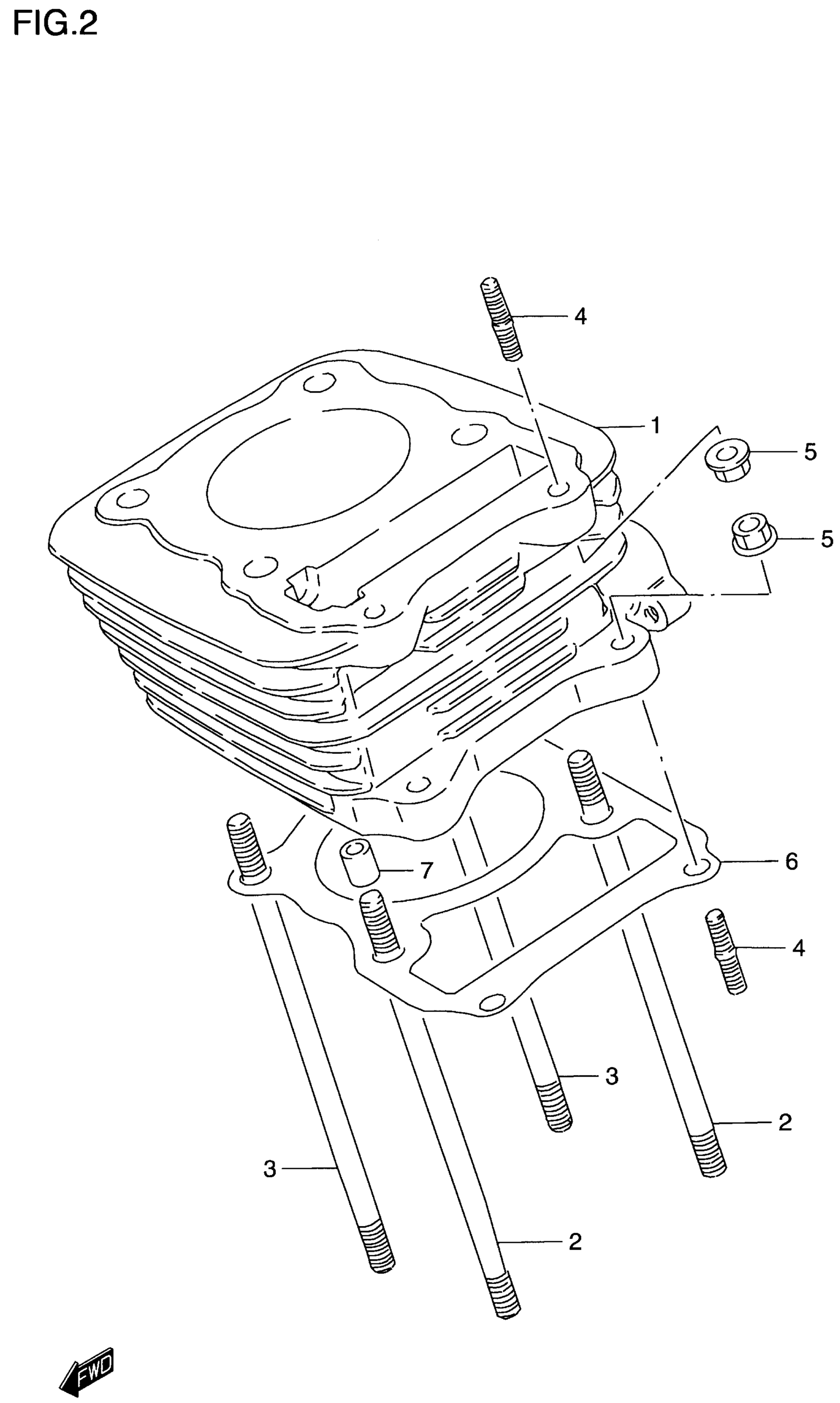

Suzuki DR200SE (2000) CYLINDER Diagram

#

Description

Price

1

CYLINDER | ~E.NO.112541 This part replaces 11210-42A10.

11211-13G50-0F0

$548.47

1

CYLINDER | E.NO.112542~ This part replaces 11210-42A11.

11211-13G50-0F0

$548.47

2

STUD BOLT (L:160)

09108-08195

$5.57

3

STUD BOLT (L:167)

09108-08184

$6.00

4

STUD BOLT This part replaces 01421-06253.

01421-0625A

$1.99

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

GASKET, CYLINDER This part replaces 11241-42A01.

11241-42A10

$5.48

7

KNOCK PIN

04211-11149

$1.78
