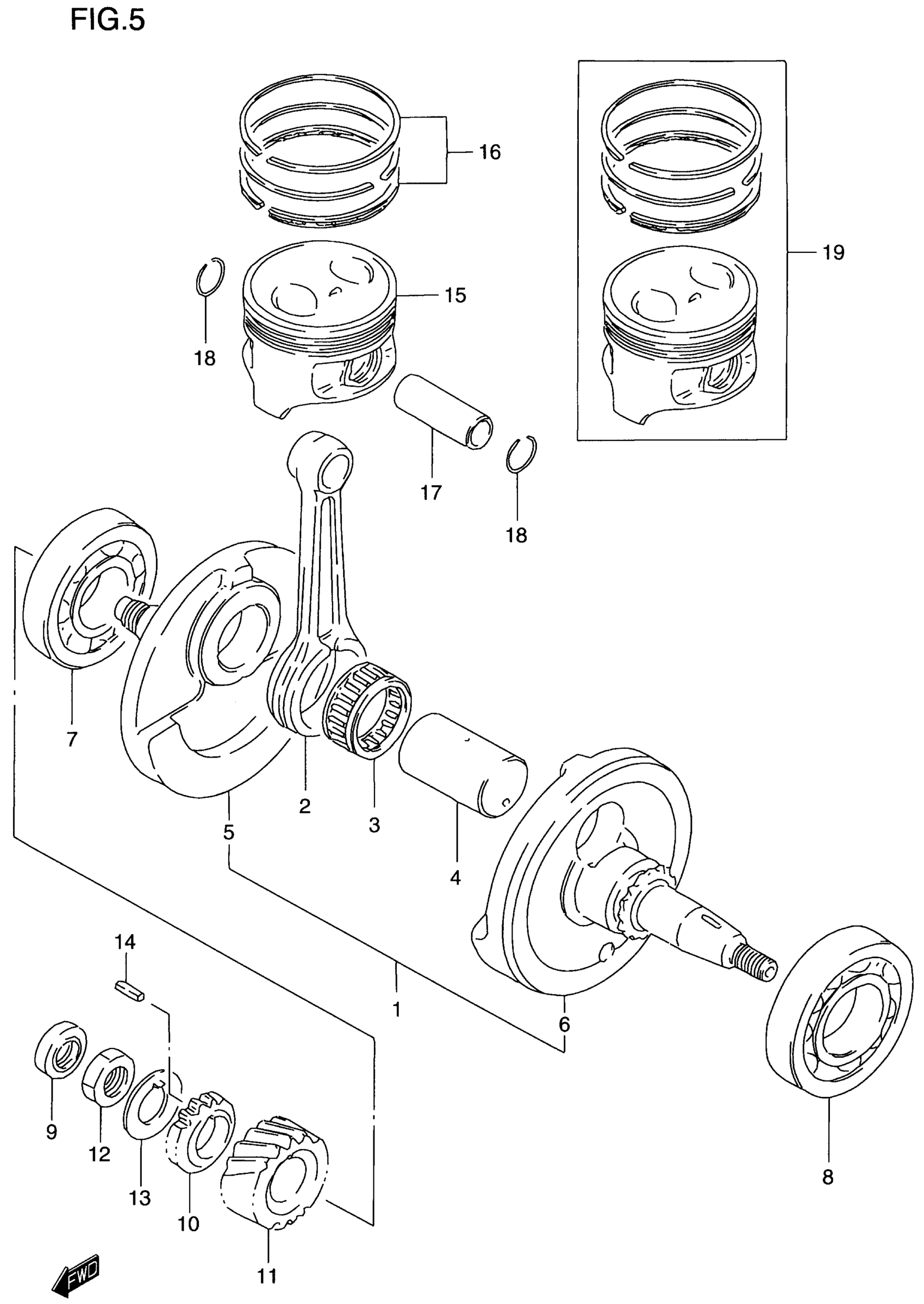

Suzuki DR200SE (2000) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6 This part replaces 12200-42A10.

12200-42A21

$615.05

2

ROD, CONNECTING

12161-42A01

$116.47

3

BEARING

09263-31008-0B0

$49.53

4

PIN, CRANK This part replaces 12210-42A00.

12210-42A01

$40.02

5

CRANKSHAFT, RH

12221-42A02

Unavailable

6

CRANKSHAFT, LH This part replaces 12261-42A10.

12261-42A20

Unavailable

7

BEARING (28X68X18)

09262-28014

$57.95

8

BEARING (35X72X17)

09262-35038

$46.10

9

OIL SEAL (12X21X7)

09282-12009

$13.11

10

GEAR, OIL PUMP DRIVE (NT:15)

16321-42A00

Unavailable

11

GEAR, PRIMARY DRIVE (NT:19) | MODEL T/V This part replaces 21111-42A00.

21111-42A01

Unavailable

11

GEAR, PRIMARY DRIVE (NT:19) | MODEL W/X/Y

21111-42A01

Unavailable

12

NUT

09140-18004

$3.23

13

WASHER

09166-18003

$2.38

14

KEY

09421-04007

$7.37

15

PISTON This part replaces 12111-42A03.

12111-42A20-0F0

$92.68

16

RING SET, PISTON

12140-19B10

$41.60

17

PIN, PISTON

12151-22A02

$12.15

18

SNAP RING

09381-16001

$1.67

19

PISTON SET,OS0. | OPT This part replaces 12100-42A00-050.

12100-42A40-050

$113.45

19

PISTON SET (OS:1.0) | OPT

12100-42A00-100

Unavailable
