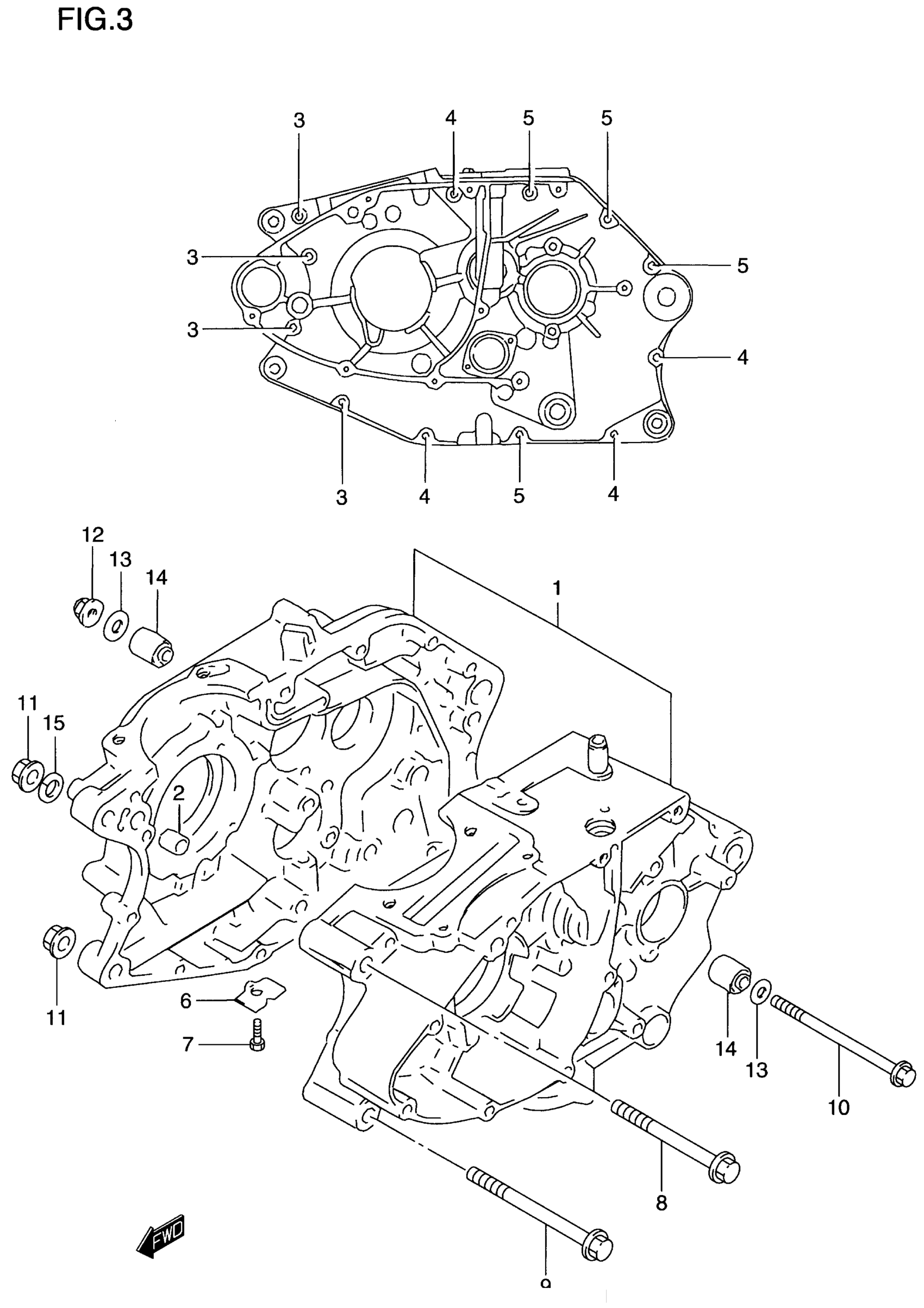

Suzuki DR200SE (2000) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY | MODEL T/V/W/X This part replaces 11300-42A20.

11300-42A24

Unavailable

1

CRANKCASE ASSY | MODEL Y; Includes Item(s) 2 - 7 This part replaces 11300-42A21.

11300-42A24

Unavailable

2

KNOCK PIN

04211-13189

$2.19

3

BOLT This part replaces 01547-06553.

01547-0655B

$2.75

4

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

5

BOLT This part replaces 01547-06753.

01547-0675B

$3.93

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

8

BOLT (10X80)

09103-10240

$6.28

9

BOLT (10X90)

09103-10061

$6.43

10

BOLT (8X115)

09103-08138

Unavailable

11

NUT | MODEL T/V This part replaces 08319-31105.

08319-3110A

$2.73

11

NUT | MODEL W/X/Y This part replaces 08319-31103.

08319-3110A

$2.73

12

NUT This part replaces 08319-31083.

08319-3108A

$2.32

13

WASHER

08212-08182

Unavailable

14

BUSH

09319-08032

Unavailable

15

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84
