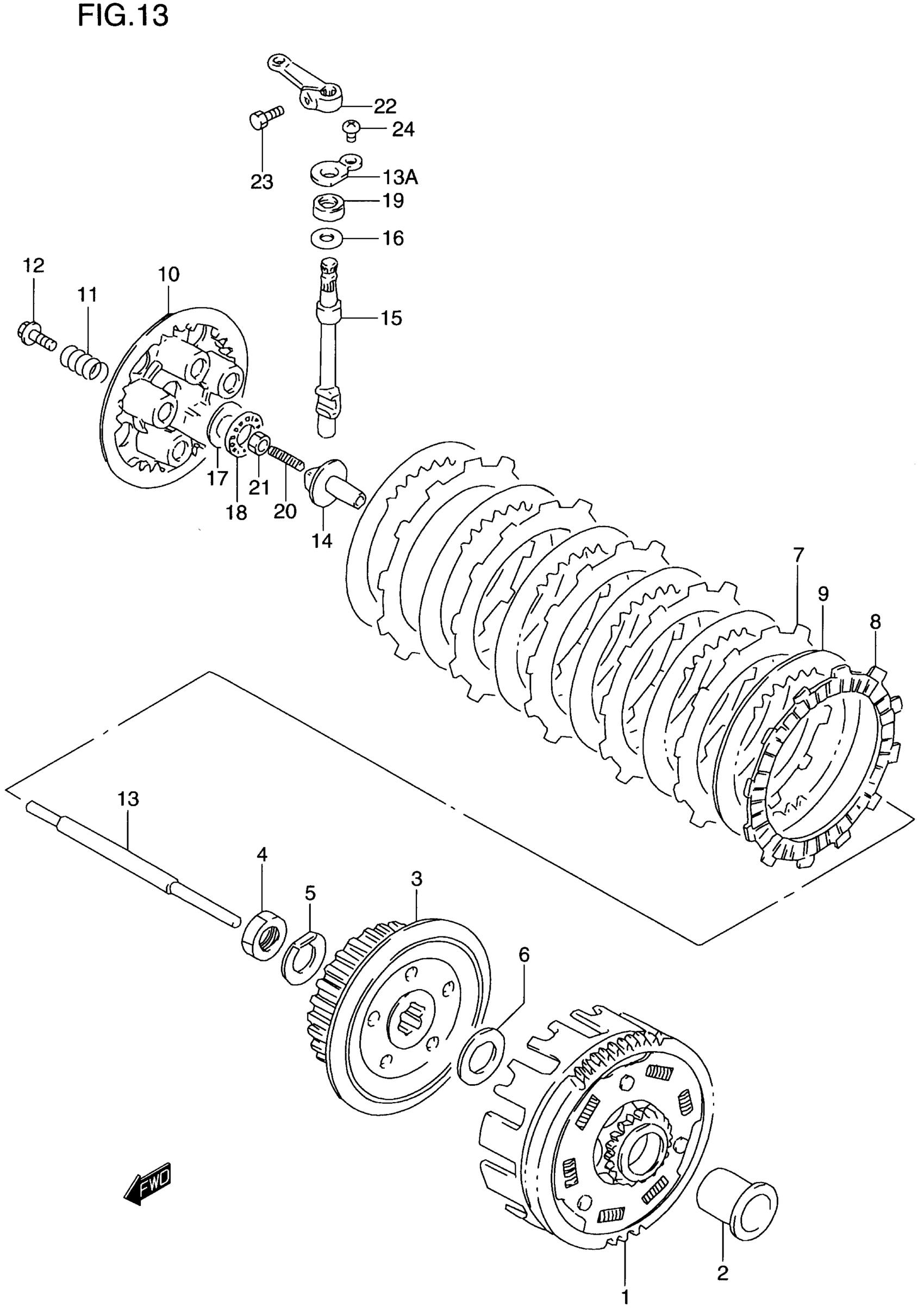

Suzuki DR200SE (2000) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-42A50

Unavailable

2

SPACER, PRIMARY DRIVEN

21251-13E00

$23.38

3

HUB, CLUTCH SLEEVE This part replaces 21411-42A02.

21411-42A04

$66.47

4

NUT | MODEL T This part replaces 09140-16014.

09140-16005

$3.75

4

NUT | MODEL V/W/X/Y

09140-16005

$3.75

5

WASHER

09169-16003

$2.45

6

WASHER

08211-20355

$4.68

7

PLATE, CLUTCH DRIVE (T:3.0) This part replaces 21441-42A00.

21441-25C01

$20.77

8

PLATE, CLUTCH DRIVE

21441-13A01

$14.73

9

PLATE, DRIVEN (T:1.4)

21451-01B40

$8.40

10

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$24.87

11

SPRING

09440-15021

$3.89

12

BOLT (5X16) | MODEL T/V/W This part replaces 09116-05003.

09116-05020

$2.03

12

BOLT (5X16) | MODEL X/Y

09116-05020

$2.03

13

ROD, CLUTCH PUSH This part replaces 23110-05202.

23110-05203

$18.02

13A

RETAINER, CL RLSE OIL SEAL | MODEL X/Y

23117-05200

$5.13

14

PIECE, CLUTCH PUSH

23121-38201

$26.73

15

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

16

WASHER, CLUTCH RELEASE | MODEL T This part replaces 08211-10201.

09181-10195

$1.99

16

THRUST WASHER (10X20X1.0) | MODEL V/W/X/Y

09181-10195

$1.99

17

WASHER (15.5X28X1)

09160-15045

$3.89

18

BEARING (15X28X2)

09263-15003

$8.29

19

OIL SEAL (10X20X6)

09282-10012

$7.98

20

SCREW

09134-06010

$3.12

21

NUT (6X3.6)

09140-06023

$2.06

22

ARM, CLUTCH RELEASE

23271-46010

$28.97

23

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

24

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49
