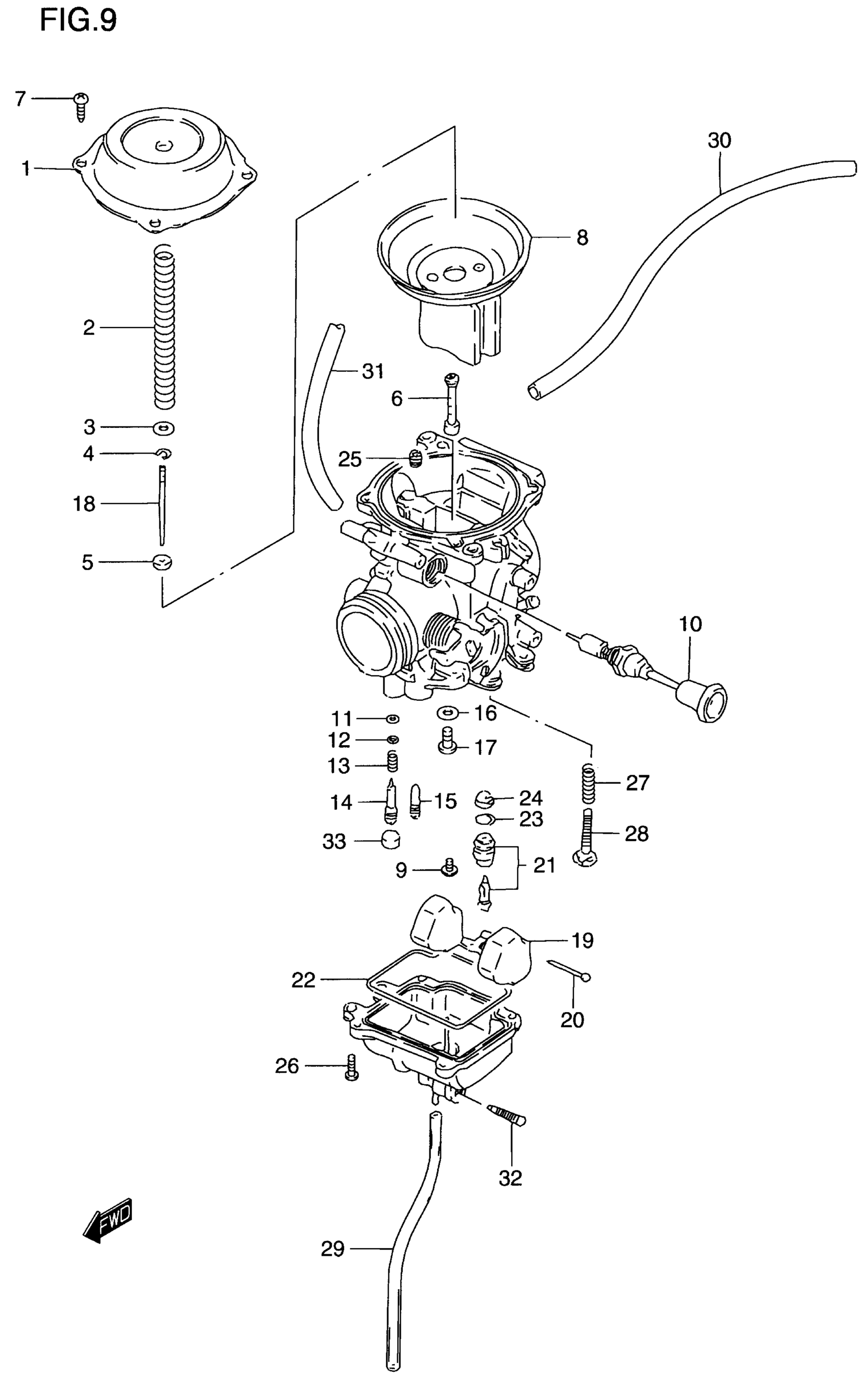

Suzuki DR200SE (2000) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | E3 This part replaces 13200-42AC0.

13200-42AC2

$540.00

CARBURETOR ASSY | MODEL T E28

13200-42AF0

Unavailable

CARBURETOR ASSY | MODEL V/W/X/Y E28 This part replaces 13200-42AC0.

13200-42AC2

$540.00

CARBURETOR ASSY | E33; Includes Item(s) 1 - 21 This part replaces 13200-42AE0.

13200-42AE2

$487.62

1

COVER

13502-42A00

$38.47

2

SPRING

13417-42A00

$6.79

3

RING

13382-42A00

$4.48

4

CLIP, NEEDLE

13394-10010

$5.45

5

RING

13387-47010

$7.22

6

JET, NEEDLE (P-5M)

09494-00881

$53.92

6

JET, NEEDLE (P-5) | MODEL T E28

09494-00514

Unavailable

7

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

8

DIAPHRAGM ASSY This part replaces 13500-42A00.

13500-42A01

$170.83

9

SCREW

13602-43410

$2.92

10

PLUNGER ASSY

13411-42A20

$38.78

11

O-RING This part replaces 13295-29900.

13295-29901

$4.34

12

WASHER

13291-29900

$1.98

13

.SPRING (NT:45)

13268-47070

$4.34

14

SCREW, PILOT (2 1/2)

13279-47070

$13.36

14

SCREW, PILOT (1 1/2) | MODEL T E28

13279-47070

$13.36

15

JET, PILOT (35)

09492-35008

$9.32

15

JET, PILOT (40) | MODEL T E28

09492-40014

$9.38

16

WASHER, NEEDLE JET | MODEL T/V This part replaces 13332-44080.

13382-03110

$2.80

16

WASHER | MODEL W/X/Y

13382-03110

$2.80

17

JET, MAIN (125)

09491-25010

$11.02

17

JET, MAIN (122.5) | MODEL T E28

09491-24013

$11.38

18

NEEDLE, JET (5D77-1)

13383-42AC0

$16.28

18

NEEDLE, JET (5D26-3) | MODEL T E28

13383-42A00

Unavailable

19

FLOAT

13250-42A00

$34.08

20

PIN, FLOAT

13254-92311

$2.07

21

VALVE ASSY, NEEDLE

13370-44500

$50.98

22

O RING, FLOAT CHAMBER | Includes Item(s) 23 - 33

13251-42A00

$9.03

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

25

JET, AIR (135)

09493-27001

$16.87

26

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

27

SPRING

13268-37420

$5.32

28

ADJUSTER | MODEL T/V This part replaces 13267-37100.

13267-25D00

$14.20

28

ADJUSTER | MODEL W/X/Y

13267-25D00

$14.20

29

HOSE (3X5X650) | L:650(r)400 MODEL T E28

13684-40A00

$9.58

30

HOSE,5X10X600 | L:600(r)250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

31

HOSE(4.5X8.5X60 | L:600(r)180 MODEL T This part replaces 09354-45853-600.

09355-45001-600

$9.48

31

HOSE(4.5X8.5X60 | L:600(r)180 MODEL V/W/X/Y This part replaces 09355-45855-600.

09355-45001-600

$9.48

32

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

33

PLUG | E3,E33 MODEL V/W/X/Y E28

13281-05A00

$4.60
