2000 Suzuki DR200SE CAM Shaft - Valve Diagram

← All diagrams

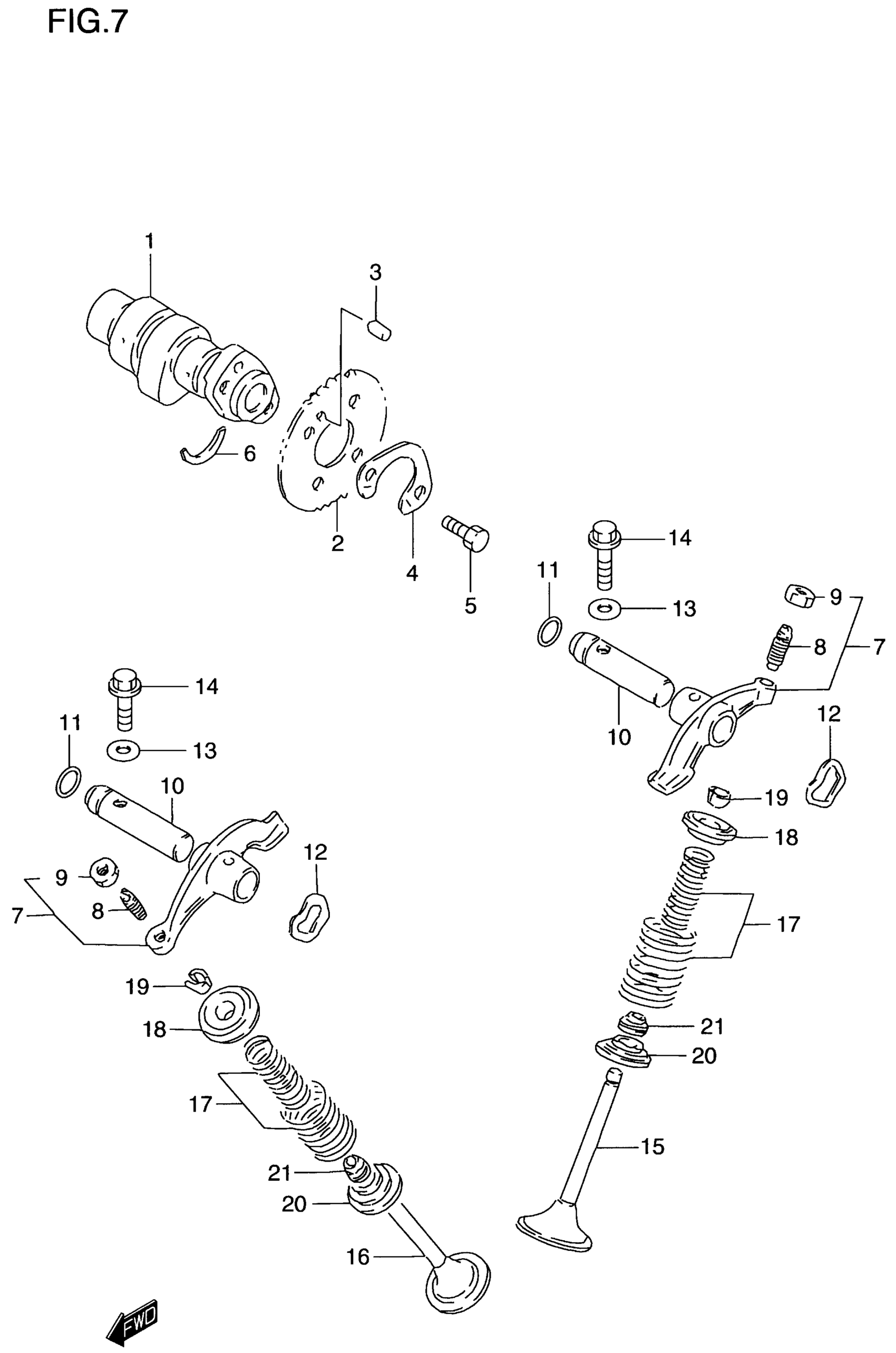

Find the part on the CAM Shaft - Valve diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki DR200SE CAM Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT This part replaces 12711-42A10.

12711-42A11

1
Out of stock

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

1
Out of stock

3

ROLLER

09261-05005

1
Out of stock

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

1
Out of stock

5

BOLT (6X10.5)

09111-06032

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

2
Out of stock

8

.SCREW, TAPPET ADJUSTING

12842-32411

2
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

10

SHAFT, VALVE ROCKER ARM

12861-05201

2
Out of stock

11

.O RING (D:1.9,ID:8.6)

09280-09005

2
Out of stock

12

WASHER

09164-12021

2
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

14

BOLT | MODEL T/V/W/X This part replaces 01550-06253.

01550-0625A

2
Out of stock

14

SCREW | MODEL Y This part replaces 02162-06253.

02162-0625A

2
Out of stock

15

VALVE, INTAKE

12911-42A00

1
Out of stock

16

VALVE, EXHAUST

12912-42A00

1
Out of stock

17

SPRING SET, VALVE

12920-05210

2
Out of stock

18

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

2
Out of stock

19

COTTER, VALVE

12932-24400

4
Out of stock

20

SEAT, VALVE SPRING

12933-49201

2
Out of stock

21

OIL SEAL (5.5X11X8.2)

09289-05015

2
Out of stock
