Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-42A00

$100.02

2

GUIDE,CAM CHAIN This part replaces 12771-18A00.

12771-18A01

$28.30

3

TENSIONER,CAM This part replaces 12811-18A01.

12811-18A02

$32.86

4

BOLT, CAM CHAIN TENSIONER

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 10

12830-19B02

$96.45

7

SPRING

12833-19B00

$3.25

8

BAR

12835-19B00

$3.25

9

PLUG

12834-19B00

$17.37

10

O RING

12832-02A00

$2.82

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

12

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

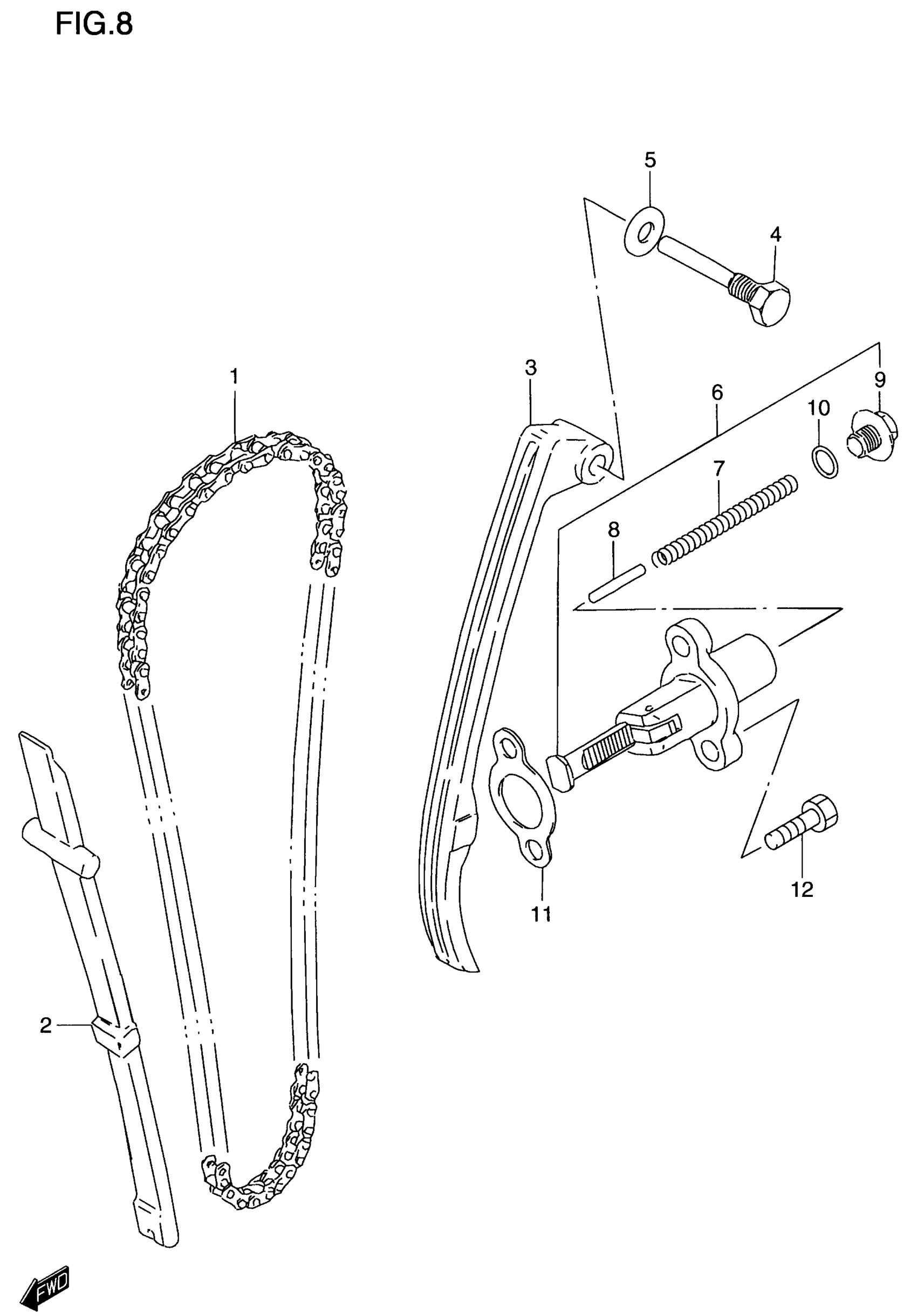

Suzuki DR200SE (2000) CAM CHAIN Diagram
