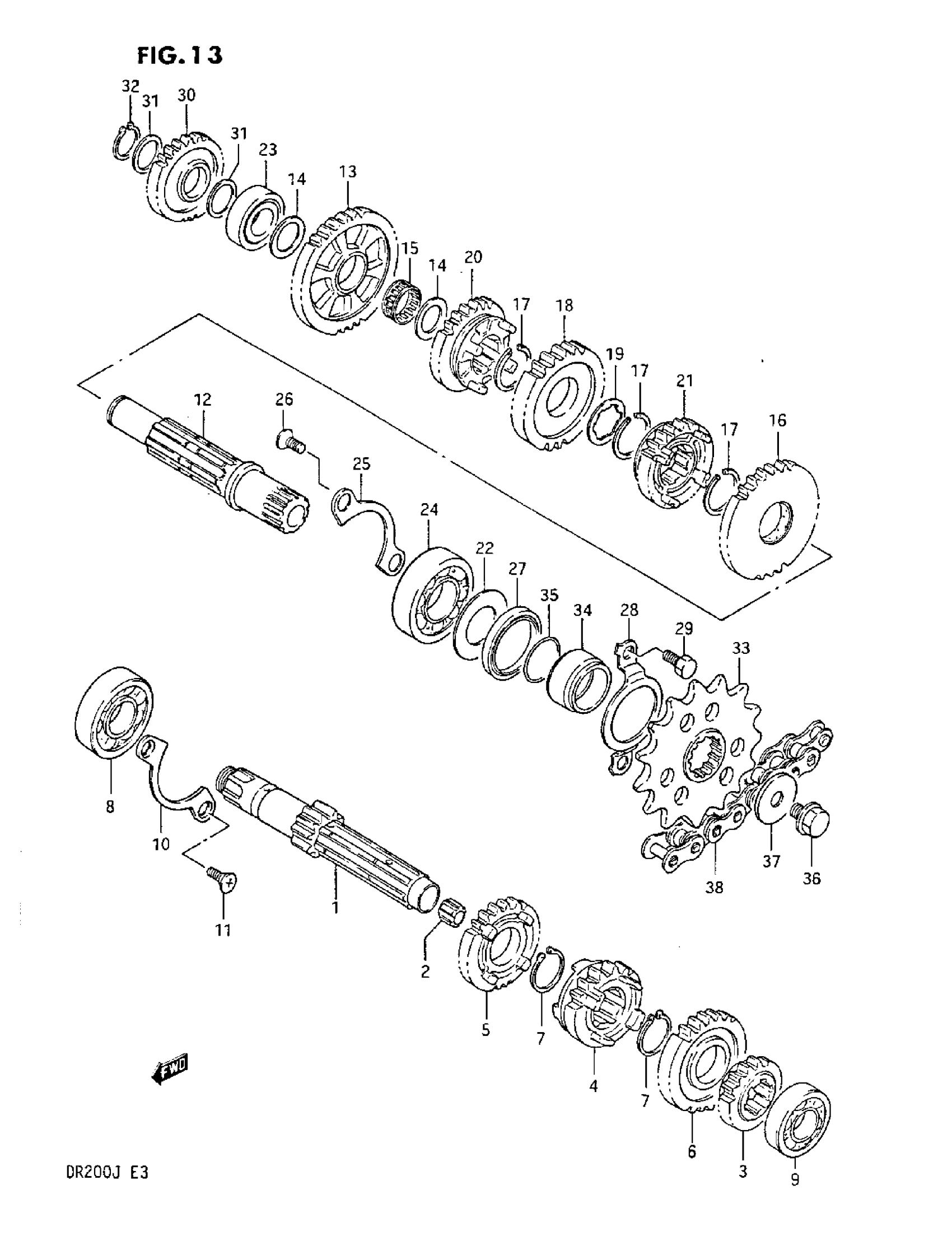

Suzuki DR200 (1987) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) This part replaces 24120-42A00.

24120-42A01

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:15)

24221-42A02

Unavailable

4

GEAR, 3RD DRIVE (NT:16) This part replaces 24231-42A02.

24231-42A03

Unavailable

5

GEAR, 4TH DRIVE (NT:21)

24241-42A00

Unavailable

6

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-42A03.

24251-42A10

Unavailable

7

CIRCLIP

09380-20009

$2.20

8

BEARING, DRIVE SHAFT LH This part replaces 09262-20062.

09262-20069

$23.28

9

BEARING This part replaces 08123-60020.

08123-60027

$23.62

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

SHAFT,DRIVE This part replaces 24130-42A00.

24130-42A01

Unavailable

13

GEAR, 1ST DRIVEN (NT:33)

24311-42A00

$115.77

14

WASHER (17X26X1) This part replaces 08211-17261.

09181-17167

$2.96

15

BEARING

09263-17004

$12.03

16

GEAR, 2ND DRIVEN (NT:29) This part replaces 24320-42A02.

24320-42A03

$96.22

17

CIRCLIP

09380-22006

$3.10

18

GEAR, 3RD DRIVEN (NT:23) This part replaces 24331-42A01.

24331-42A02

Unavailable

19

WASHER

09167-22011

$3.23

20

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-42A01.

24341-42A02

Unavailable

21

GEAR, 5TH DRIVEN (NT:21)

24351-42A02

Unavailable

22

WASHER, OIL SEALING

24359-42A00

$4.35

23

BEARING, RH

09264-17001

$43.02

24

BEARING, LH

09262-22018

$25.60

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

OIL SEAL (30X40X6)

09283-30053

$9.24

28

RETAINER, DRIVE SHAFT OIL SEA This part replaces 24751-42A01.

24751-42A10

$4.52

29

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

30

NO DESCRIPTION AVAILABLE This part replaces 26260-42A01.

26260-42A02

Unavailable

31

WASHER

08211-17221

Unavailable

32

CIRCLIP This part replaces 08331-31178.

08331-31179

$1.90

33

SPROCKET, ENGINE (NT:15) This part replaces 27511-42A00.

27510-42A10

$49.40

34

SPACER, ENGINE SPROCKET

27531-42A00

$23.07

35

O RING (D:2.5,ID:21)

09280-21008

$1.91

36

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

37

WASHER

08211-08283

$2.81

38

CHAIN ASSY, DRIVE (DID520VC5) This part replaces 27600-42A11-112.

27600-14A20-112

$237.67
